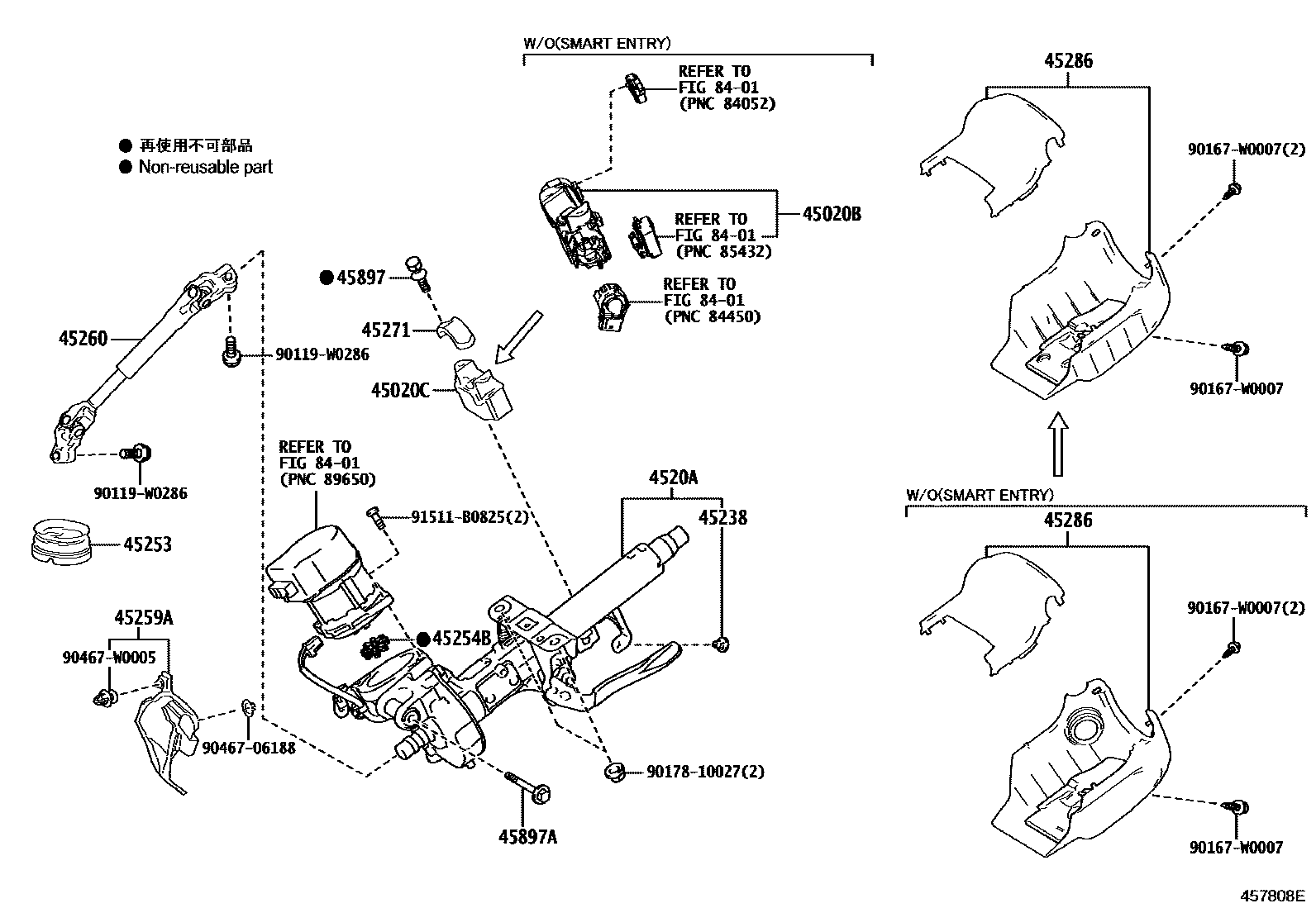

STEERING COLUMN & SHAFT

0001 1 0002 1

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-02420iMXPA11,MXPH11..RHD..CVT..(N,R,V)202007

IRELAND, CYPRUS SPEC

main45280-02420iMXPA11,MXPH11..LHD..CVT..(N,R,V)202007

MALTA SPEC

main45280-02420iMXPA11,MXPH11..RHD..CVT..(N,R,V)202007

WIRELESS DOOR LOCK-WITH

main45280-02420iMXPA11,MXPH11..LHD..CVT..(N,R,V)202007

IRELAND, CYPRUS SPEC&WIRELESS DOOR LOCK-WITH

main45280-02420iMXPH11..RHD..S202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main45280-02420iMXPH11..LHD..S202401

IRELAND,CYPRUS SPEC

main45280-02420iMXPH11..LHD..S202401

IRELAND,CYPRUS SPEC&WIRELESS DOOR LOCK-WITH

main45280-02420iMXPA11..LHD..CVT..N202401-202407

main45280-02430iKSP211,MXPA11..LHD..MTM..(N,R,V)202007

IRELAND, CYPRUS SPEC

main45280-02430iKSP211,MXPA11..LHD..MTM..(N,R,V)202007

MALTA SPEC

main45280-02430iKSP211,MXPA11..LHD..MTM..(N,R,V)202007

WIRELESS DOOR LOCK-WITH

main45280-02430iMXPA11..6F..N202401-202407

main45280-02540iMXPA11,MXPH11..RHD..CVT..(N,R,V)202007

main45280-02550iKSP211,MXPA11..RHD..MTM..(N,R,V)202007

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-K0020iMXPA11..RHD..G202007-202205

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main45020-K0020iKSP211..LHD..G202007-202205

IRELAND, CYPRUS SPEC

main45020-K0020iKSP211..LHD..G202007-202205

MALTA SPEC

main45020-K0020iMXPA11..LHD..6F..(G,S)202007

IRELAND, CYPRUS SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main45020-K0020iMXPA11..LHD..6F..(G,S)202007

MALTA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main45020-K0030iMXPA11..RHD..6F..N;MXPH11..RHD..(N,V)202007-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main45020-K0030iKSP211..RHD..G202007-202205

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0D560iMXPA11..RHD..6F..N;MXPH11..RHD..(N,V)202007-202401

IRELAND, CYPRUS SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main4520A-0D560iKSP211..RHD..G202007-202205

main4520A-0D560iMXPA11..RHD..6F..N;MXPH11..RHD..(N,V)202007-202401

MALTA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main4520A-0D560iMXPA11..RHD..6F..N;MXPH11..RHD..(N,V)202007-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main4520A-0D570iKSP211,MXPH11..RHD..R202007-202205

main4520A-0D570iMXPH11..RHD..G202007-202401

IRELAND, CYPRUS SPEC&WIRELESS DOOR LOCK-WITH

main4520A-0D580iKSP211..LHD..G202007-202105

main4520A-0D580iKSP211..LHD..N;MXPA11..LHD..V202007-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main4520A-0D590iMXPH11..LHD..G;MXPA11..LHD..(G,S)..FRP202007-202401

WIRELESS DOOR LOCK-WITH

main4520A-0D760iMXPA11..RHD..6F..N202401-202407

main4520A-0D760iMXPH11..RHD..S202401

IRELAND,CYPRUS SPEC&WIRELESS DOOR LOCK-WITH

main4520A-0D770iMXPH11..N..CZEP;MXPH11..LHD..(N,R)..FRP202401

WIRELESS DOOR LOCK-WITH

main4520A-0D770iMXPA11..LHD..N202401-202407

main4520A-0D790iMXPH1#..LHD..(S,V)202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main4520A-0D800iMXPH1#..RHD..(S,V)202401

IRELAND,CYPRUS SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main4520A-0D800iMXPH1#..RHD..(S,V)202401

MALTA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main4520A-0D800iMXPH1#..RHD..(S,V)202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iKSP211..G202007-202407

45253COVER, STEERING COLUMN HOLE

main45253-K0020iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202407

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202407

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-K0020iMXPA11..RHD..6F..N202007-202407

main45259-K0030iMXPA11..LHD..N;MXPH11..LHD..R..FRP;MXPH11..LHD..(N,S,V)202007-202407

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-K0020iMXPH1#..RHD..(N,S,V)202007-202407

main45260-K0030iMXPH11..R..FRP;MXPH1#..LHD..(N,S,V)202007-202407

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iMXPH11..N..CZEP;MXPH1#..RHD..(N,S,V);MXPH11..LHD..(N,R)..FRP202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main45271-52030iMXPH11..S..CZEP202007-202407

main45271-52030iMXPH11..N..CZEP;MXPH1#..RHD..(N,S,V);MXPH11..LHD..(N,R)..FRP202401

WIRELESS DOOR LOCK-WITH

45286COVER, STEERING COLUMN

main45286-K0901-C0iMXPH11..G;MXPA11..LHD..G202007-202401

BLACK,TRIM2#

main45286-K0901-C0iMXPA11..RHD..G202007-202205

BLACK,TRIM1#

main45286-K0901-C0iMXPH11..S202007-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID),BLACK,TRIM1#,2#,4#

main45286-K0901-C0iMXPH11..N202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID),BLACK,TRIM2#

main45286-K0902iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

main45286-K0902-C0iMXPA11..LHD..G..FRP202007-202401

BLACK,TRIM1#,2#,4#

main45286-K0902-C0iKSP211,MXPH11..RHD..R202007-202401

BLACK,TRIM2#

main45286-K0902-C0iMXPH11..N;MXPA11..6F..N..FRP;MXPA11..LHD..CVT..N..FRP202007-202401

WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#

main45286-K0902-C0iKSP211..N;MXPA11..RHD..CVT..N202007

WIRELESS DOOR LOCK-WITH,BLACK,TRIM1#

main45286-K0902-C0iKSP211..N;MXPA11..RHD..CVT..N202007

WIRELESS DOOR LOCK-WITH,BLACK,TRIM1#,2#

45897BOLT, STEERING LOCK SET

main45897-12020iMXPH11..RHD..N202401

IRELAND,CYPRUS SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main45897-12020iMXPA11,MXPH11..LHD..CVT..(G,S)..FRP202007-202407

main45897-12020iKSP211,MXPA11,MXPH11..RHD..(N,R,V)202007

W/O SEALANT

main45897-12020iKSP211,MXPA11,MXPH11..RHD..(N,R,V)202007

IRELAND, CYPRUS SPEC

main45897-12020iKSP211,MXPA11,MXPH11..RHD..(N,R,V)202007

IRELAND, CYPRUS SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main45897-12020iKSP211,MXPA11,MXPH11..RHD..(N,R,V)202007

MALTA SPEC

main45897-12020iKSP211,MXPA11,MXPH11..RHD..(N,R,V)202007

MALTA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main45897-12020iKSP211,MXPA11,MXPH11..RHD..(N,R,V)202007

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main45897-12020iMXPH11..LHD..N202401

IRELAND,CYPRUS SPEC

main45897-12020iMXPH11..LHD..N202401

WIRELESS DOOR LOCK-WITH

main45897-12050iMXPH11..RHD..N202007

W/SEALANT

45897ABOLT, TILT STEERING PAWL SET

main90119-W0215iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202407

8401

90119W0286

main90119-W0286

90167W0007

main90167-W0007

9017810027

main90178-10027

9046706188

main90467-06188

90467W0005

main90467-W0005

91511B0825

main91511-B0825

19 parts on this diagram · 2 diagrams in section
