DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
18X7J, #,TYPE J:REFER ILLUST.
16X6J, #,TYPE C:REFER ILLUST.
17X6.5J, #,TYPE D:REFER ILLUST.
15X6J, #,LW PACKAGE&TIRE & DISC WHEEL-185/65R15, 6J, STEEL,TYPE A:REFER ILLUST.
16X6J, #,TYPE H:REFER ILLUST.
17X6.5J,#,TYPE D:REFER ILLUST.
17X6.5J, #,TYPE G:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-195/55R16, 6J, ALUMINUM,TYPE L:REFER ILLUST.
16X6J, #,ISRAEL SPEC&TIRE & DISC WHEEL-195/55R16,6J,ALUMINUM,TYPE L:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-195/55R16,6J,ALUMINUM,TYPE M:REFER ILLUST.
16X6J,#,TIRE & DISC WHEEL-195/55R16, 6J, ALUMINUM,TYPE C:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-195/55R16, 6J, ALUMINUM(BLACK),TYPE F:REFER ILLUST.
17X6.5J, #,TIRE & DISC WHEEL- 205/45R17, 6.5J, ALUMINUM(BLACK),TYPE G:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
15X6J, #,MARTINIQUE SPEC&SPARE TIRE-GROUND TIRE, STEEL(185/65R15),TYPE A:REFER ILLUST.
17X4T,SPARE TIRE-TEMPORARY(T125/70D17),TYPE K:REFER ILLUST.
16X4T,SPARE TIRE-TEMPORARY(T125/70D16),TYPE E:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
TIRE & DISC WHEEL-205/45R17, 6.5J, ALUMINUM(BLACK)
42607DVALVE, TIRE PRESSURE MONITOR
main90942-W5003×4iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007
42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)
TIRE & DISC WHEEL-205/45R17, 6.5J, ALUMINUM(BLACK)
42611JVALVE (FOR TUBELESS TIRE SPARE)
TURKEY SPEC&SPARE TIRE-GROUND TIRE, STEEL(185/65R15)
42611UCAP, TIRE VALVE
7403

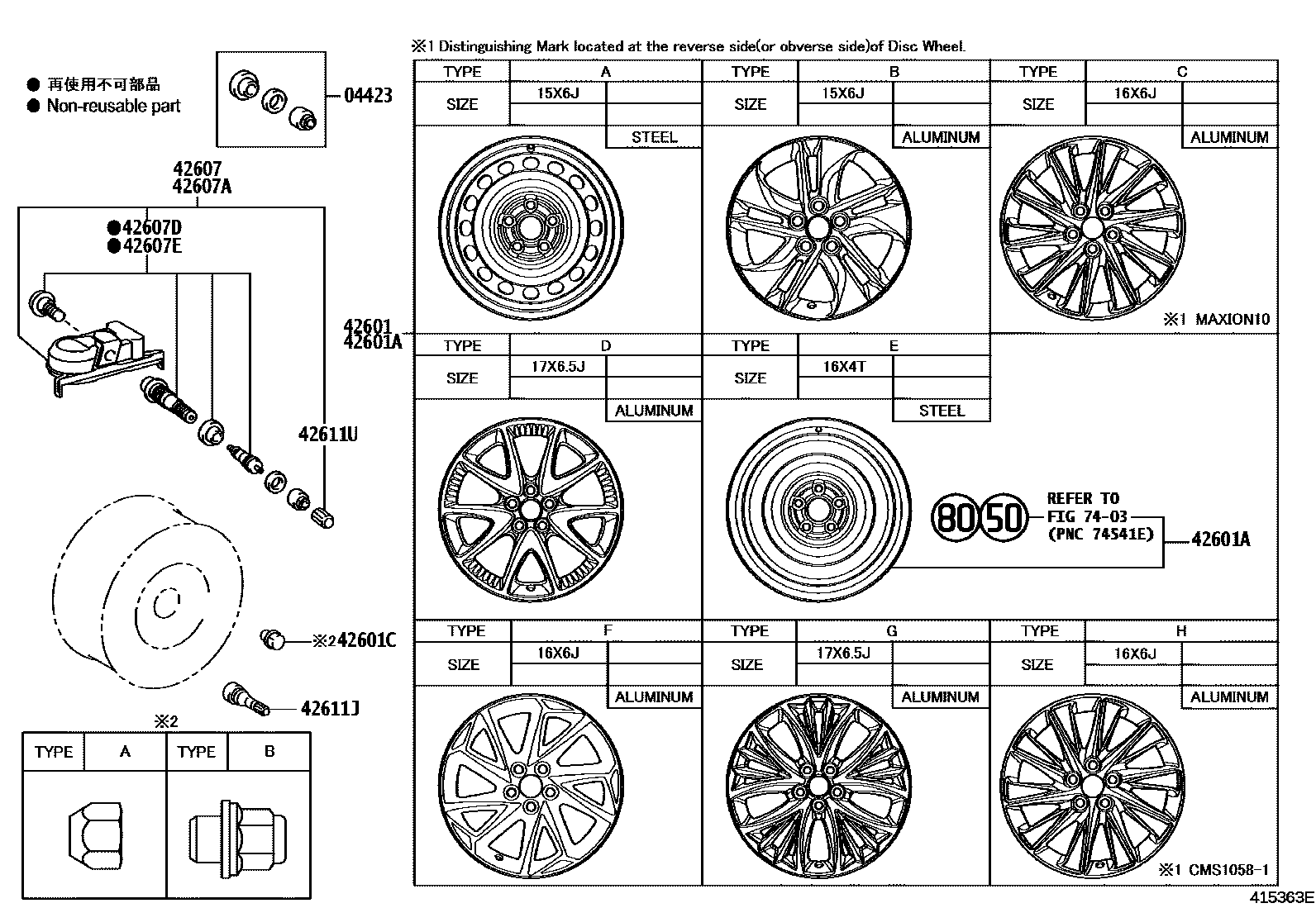

11 parts on this diagram · 3 diagrams in section
