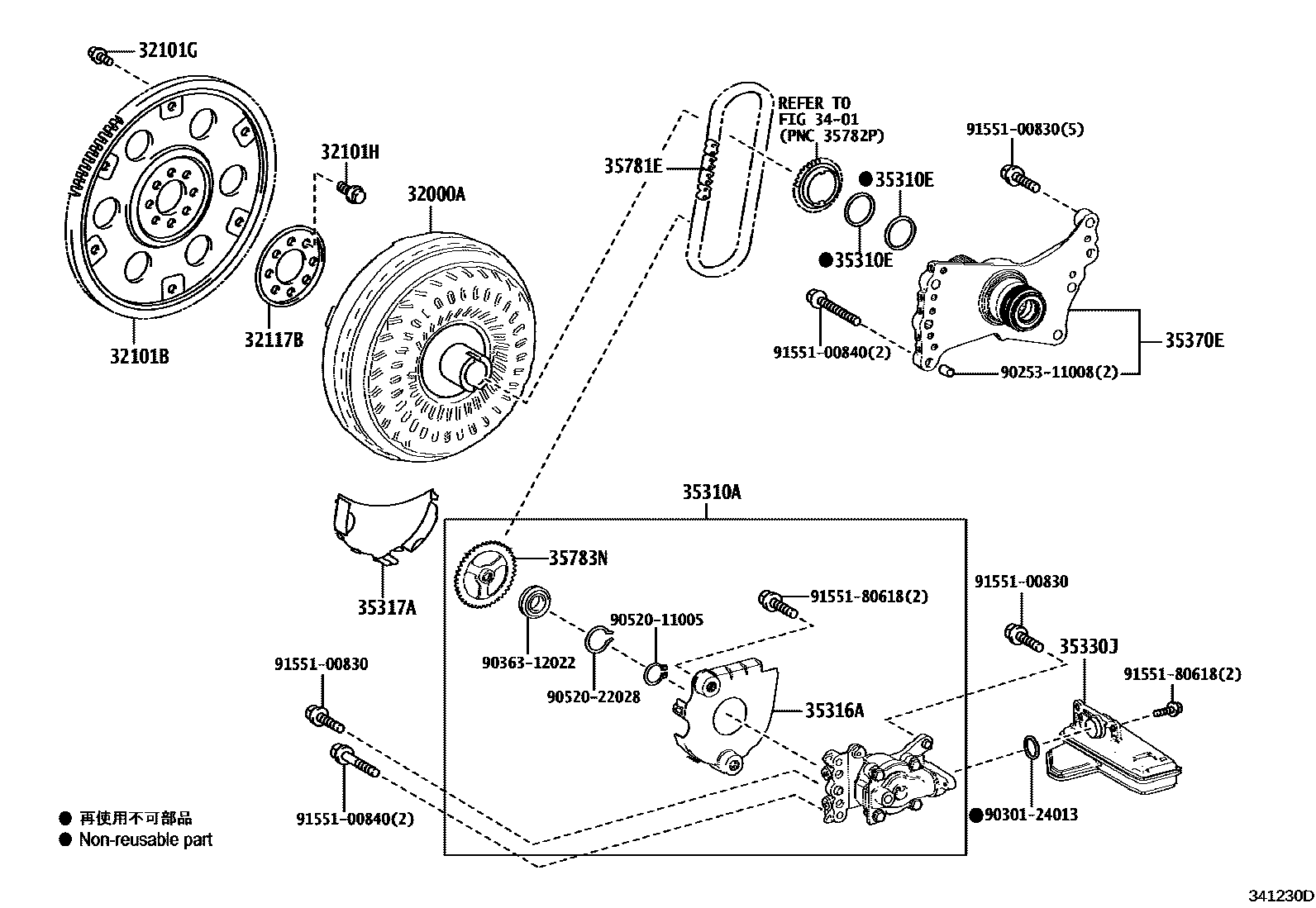

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-52260iMXPA11..CVT202007-202112

sub32000-K0010

main32000-K0010iMXPA11..LHD..CVT..N202112-202407

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52100iMXPA11..RHD..CVT..G202007-202407

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iMXPA11..LHD..CVT..N202007-202407

*8-1.25PX12-8.4,BLACK

main90119-08498iMXPA11..LHD..CVT..N202007-202407

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iMXPA11..RHD..CVT..G202007-202407

32117BSPACER, DRIVE PLATE, REAR

main32117-33010iMXPA11..RHD..CVT..G202007-202407

3401

35310APUMP ASSY, FRONT OIL

main35300-12020iMXPA11..RHD..CVT..G202104-202407

main35300-52050iMXPA11..CVT202007-202104

sub35300-12020

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12080iMXPA11..LHD..CVT..(G,S);MXPA11..RHD..CVT..(N,S)202104-202407

main35617-K0010iMXPA11..CVT202007-202104

sub35617-12080

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12020iMXPA11..LHD..CVT..N202007-202407

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12020iMXPA11..LHD..CVT..(G,S);MXPA11..RHD..CVT..(N,S)202007-202407

35330JSTRAINER ASSY, OIL

main35330-12070iMXPA11..RHD..CVT..G202104-202407

main35330-K0020iMXPA11..CVT202007-202104

sub35330-12070

35370ESHAFT ASSY, STATOR (CVT)

main35370-K0010iMXPA11..CVT202007-202109

sub35370-K0011

main35370-K0011iMXPA11..RHD..CVT..G202110-202407

35781ECHAIN, TRANSMISSION DRIVE

main35781-12010iMXPA11..RHD..CVT..G202007-202407

35783NSPROCKET, DRIVEN

main35783-12060iMXPA11..RHD..CVT..G202007-202407

9025311008

main90253-11008

9030124013

main90301-24013

9036312022

main90363-12022

9052011005

main90520-11005

9052022028

main90520-22028

9155100830

main91551-00830

9155100840

main91551-00840

9155180618

main91551-80618

22 parts on this diagram · 1 diagram in section
