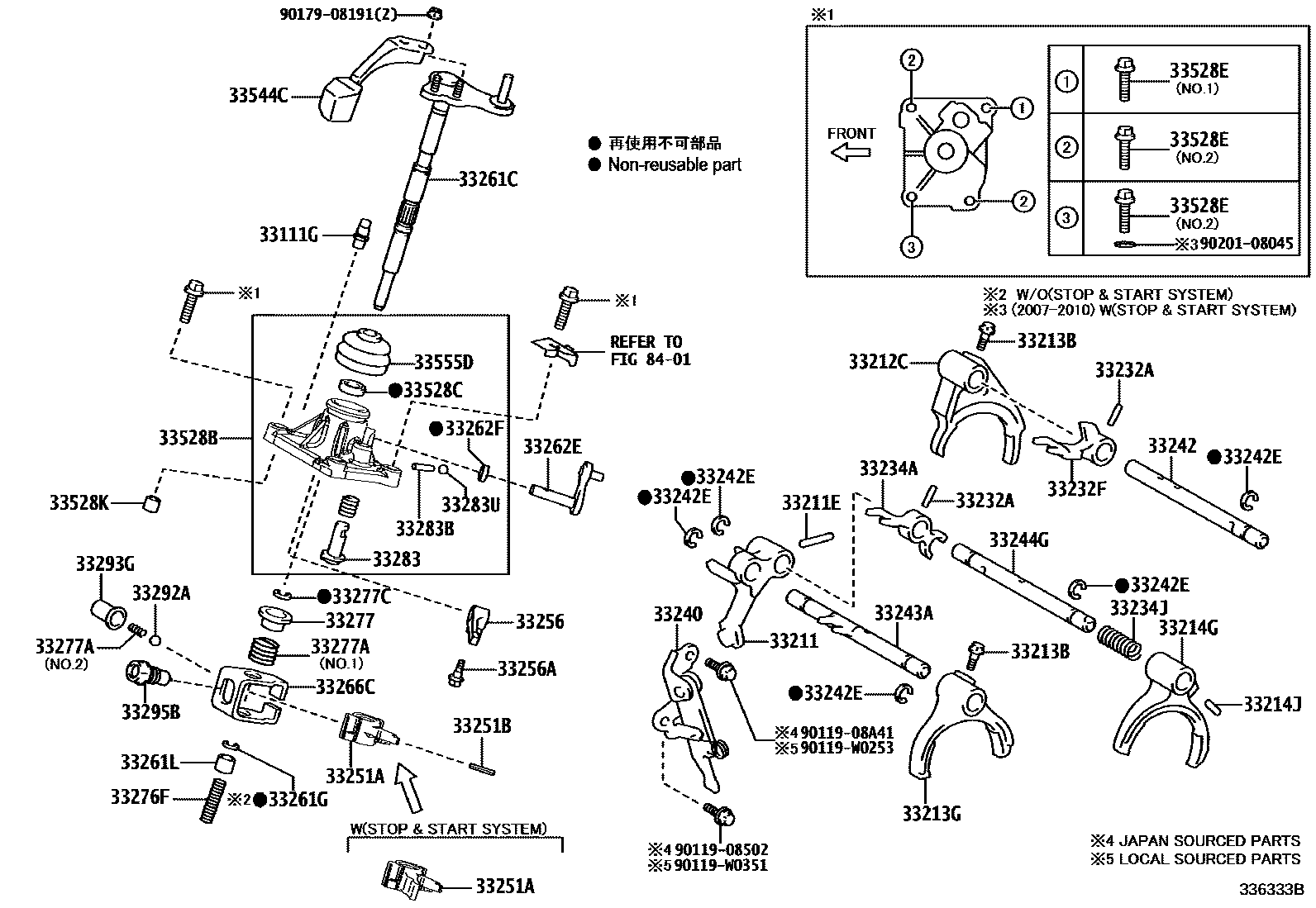

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33211FORK, REVERSE SHIFT
33211EPIN, STRAIGHT(FOR REVERSE SHIFT FORK)
33212CFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33214JPIN, STRAIGHT(FOR 5TH SHIFT FORK)
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33234AHEAD, GEAR SHIFT, NO.3
33234JSPRING, COMPRESSION (FOR SHIFT RETURN)
33240BRACKET ASSY, REVERSE SHIFT ARM
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244GSHAFT, GEAR SHIFT FORK, NO.3
33251ALEVER, SHIFT, INNER NO.1
(L)
(J)
AZORES, MADEIRA SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT
GUADELOUPE SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT
MARTINIQUE SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT
REUNION SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=28.0
L=25.5
33256LEVER, SELECT INNER
33256ABOLT, SET (FOR SELECT INNER LEVER)
33261CSHAFT, SHIFT & SELECT LEVER
33261GRING, SNAP (FOR SHIFT & SELECT LEVER SHAFT)
33261LBUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
33262ESHAFT, SELECT LEVER
33262FSEAL, OIL (FOR SELECT LEVER SHAFT)
33266CPLATE, SHIFT INTERLOCK
REUNION SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT
AZORES, MADEIRA SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT
GUADELOUPE SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT
MARTINIQUE SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33277SEAT, SELECT SPRING, NO.2
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
33277CRING, SHAFT SNAP (FOR SELECT SPRING NO.2 SEAT)
33283PIN, REVERSE RESTRICT, NO.1
AZORES, MADEIRA SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT
GUADELOUPE SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT
MARTINIQUE SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT
REUNION SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT
33283BPIN, STRAIGHT (FOR REVERSE RESTRICT PIN)
33283UBALL, REVERSE RESTRICT PIN
33292APIN, LOCK BALL
33293GHOLDER, LOCK BALL
33295BPIN, SHIFT GATE
33528BCOVER, CONTROL SHAFT
GUADELOUPE SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT
MARTINIQUE SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT
REUNION SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT
AZORES, MADEIRA SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
33528EBOLT (FOR CONTROL SHAFT COVER)
*8-1.25X35-30,(J),NO.1:REFER ILL.
*8-1.25PX35-30,(L),NO.1:REFER ILL.
*8-1.25PX35-30,(L),NO.2:REFER ILL.
*8-1.25PX35-30,(J),NO.2:REFER ILL.
33528KPIN, RING (FOR CONTROL SHAFT COVER SET BOLT)
33544CDAMPER, SHIFT LEVER
33555DBOOT, SHIFT LEVER
8401
9011908502
9011908A41
90119W0253
main90119-W0253
90119W0351
main90119-W0351
9017908191
9020108045
50 parts on this diagram · 2 diagrams in section
