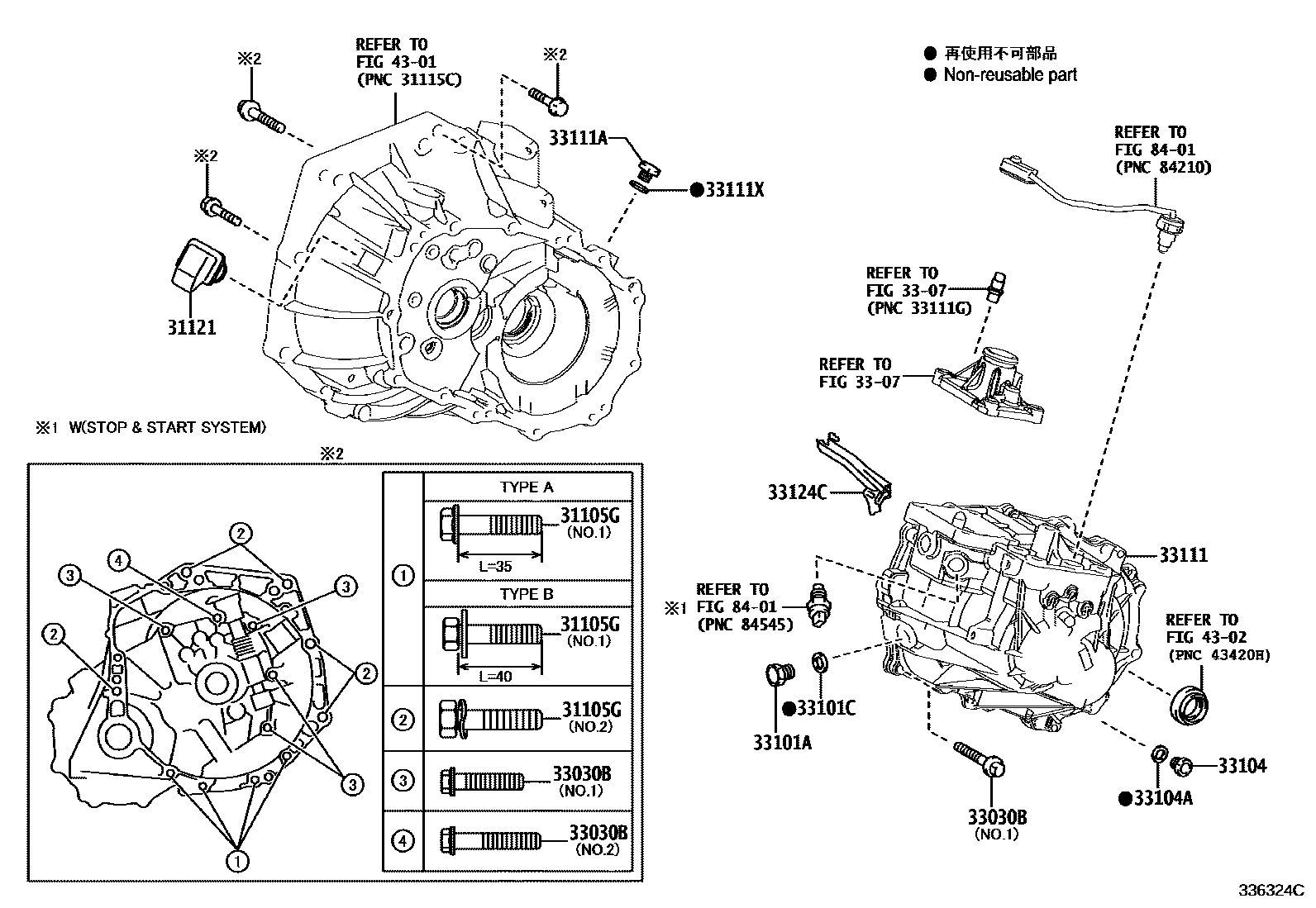

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C551 0002 1EC6E

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10591iMXPA11..6F..N¥120202007-202407

*10-1.25PX45-36,NO.1:REFER ILLUST.

main90105-W0092iMXPA11..RHD..6F..G202007-202407

*8-1.25PX35-22,NO.2:REFER ILLUST.

main90105-W0142iKSP211..RHD..N;KSP211..LHD..(N,R)202007-202205

*10-1.25PX35-26,NO.1,TYPE A:REF ILL.

main90119-W0097iKSP211..RHD..N;KSP211..LHD..(N,R)¥160202007-202205

*12-1.25PX45-30,NO.2:REFER ILLUST.

main90119-W0158iKSP211..RHD..N;KSP211..LHD..(N,R)202007-202205

*10-1.25PX40-30,NO.1,TYPE B:REF ILL.

31121COVER, CLUTCH HOUSING, NO.1

main31121-05010iMXPA11..6F..(S,V);MXPA11..LHD..6F..G202007-202407

main31121-0H011iKSP211..G202007-202205

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08261iKSP211..G¥100202007-202205

*8-1.25PX60-30,(J),NO.2:REFER ILL.

main90105-W0209iMXPA11..6F..N202007-202407

*8-1.25PX40-22,(L)

main90105-W0225iKSP211..RHD..N;KSP211..LHD..(N,R)202007-202205

*8-1.25PX35-30,NO.1:REFER ILLUST.

main90105-W0226iKSP211..RHD..N;KSP211..LHD..(N,R)202007-202205

*8-1.25PX60-30,(L),NO.2:REFER ILL.

main91551-10840iMXPA11..6F..N¥80202007-202407

*8-1.25PX40-22,(J)

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iMXPA11..6F..N¥190202007-202407

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main12157-10010iMXPA11..6F..(S,V);MXPA11..LHD..6F..G¥100202007-202407

main90430-A0003iKSP211202303

main90430-W0001iKSP211..RHD..N;KSP211..LHD..(N,R)202007-202303

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iKSP211..RHD..R¥180202007-202205

33104AGASKET, DRAIN PLUG(MTM)

main90430-A0003iKSP211202303

main90430-W0001iKSP211..RHD..N;KSP211..LHD..(N,R)202007-202303

33111CASE, MANUAL TRANSMISSION

main33111-0D070iKSP211..G202007-202105

REUNION SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT

main33111-0D070iKSP211..G202007-202105

AZORES, MADEIRA SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT

main33111-0D070iKSP211..LHD..G202007-202105

GUADELOUPE SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT

main33111-0D070iKSP211..LHD..G202007-202105

MARTINIQUE SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT

main33111-0D070iKSP211..RHD..R202007-202205

main33111-0D140iMXPA11..V202203

main33111-K0010iMXPA11..LHD..6F..N..FRP202007-202401

AZORES, MADEIRA SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT

main33111-K0010iMXPA11..RHD..6F..G202007-202407

main33111-K0010iMXPA11..6F..N202007-202401

GUADELOUPE SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT

main33111-K0010iMXPA11..6F..N202007-202401

MARTINIQUE SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT

main33111-K0010iMXPA11..6F..N202007-202401

REUNION SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT

main33111-K0010iMXPA11..6F..N202007-202401

TURKEY SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT

main33111-K0010iMXPA11..6F..N202007-202401

ISRAEL SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT

main33111-K0010iMXPA11..6F..N202007-202401

CEUTA & MELILLA SPEC&WITH(STOP & START SYSTEM)&ACTIVE SAFETY PACKAGE-WITHOUT

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iKSP211..RHD..N;KSP211..LHD..(N,R)¥180202007-202205

33111XGASKET, TRANSMISSION CASE PLUG

main90430-A0003iKSP211202303

main90430-W0001iKSP211..RHD..R202007-202302

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-0H010iKSP211..G202007-202205

main33124-K0010iMXPA11..RHD..6F..G202007-202407

4301

4302

8401

15 parts on this diagram · 2 diagrams in section
