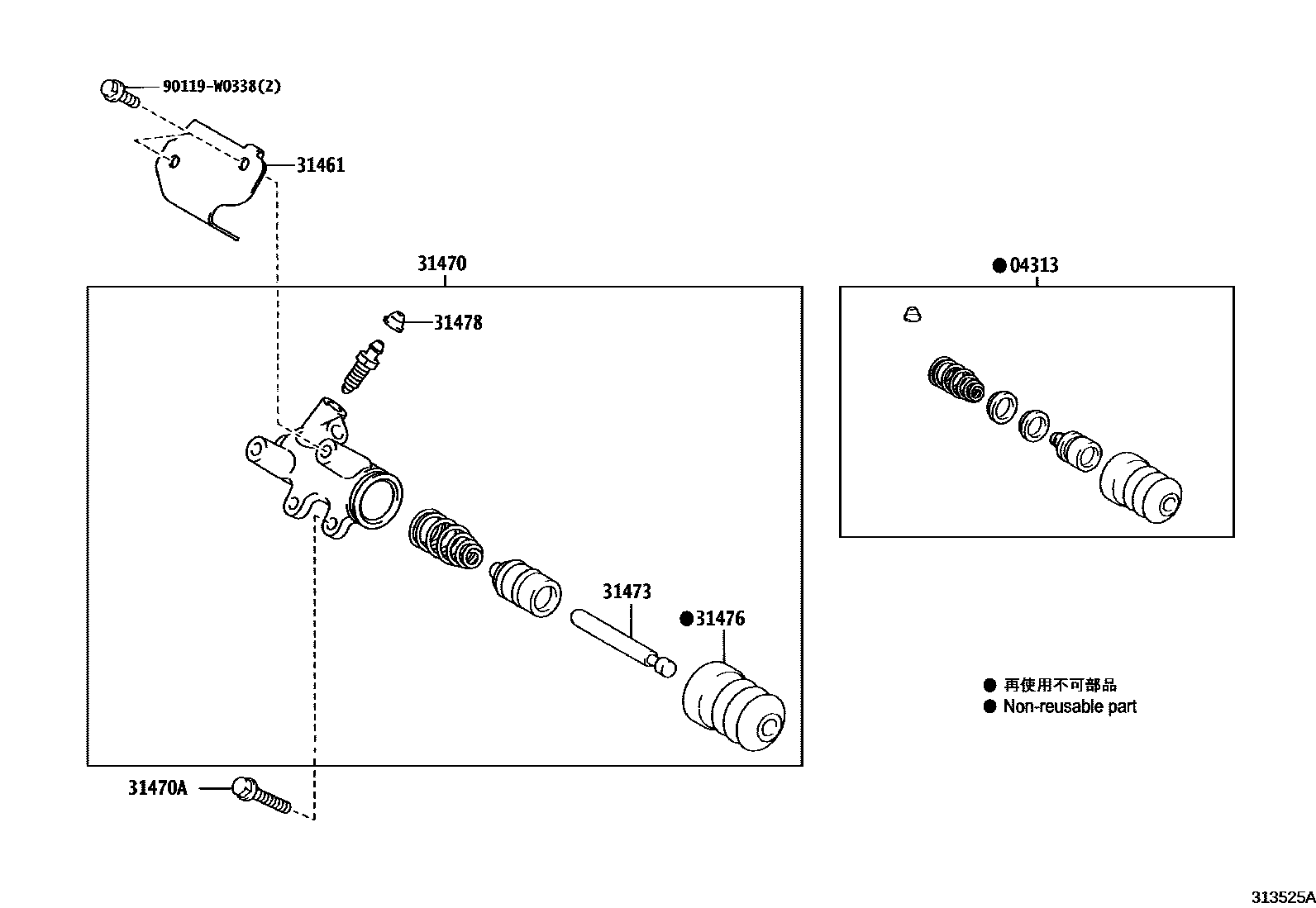

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-52021iKSP211..RHD..R202007-202205

31461INSULATOR, RELEASE CYLINDER HEAT

main31461-0D011iKSP211..G202007-202205

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-52102iKSP211..RHD..N;KSP211..LHD..(N,R)202007-202205

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-W0028iKSP211..G202007-202205

*8-1.25PX22-17.1,(L)

main91611-60822iKSP211..G202007-202205

*8-1.25PX22-17.1,(J)

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-30070iKSP211..G202007-202205

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iKSP211..RHD..R202007-202205

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKSP211..G202007-202407

90119W0338

main90119-W0338

8 parts on this diagram · 2 diagrams in section
