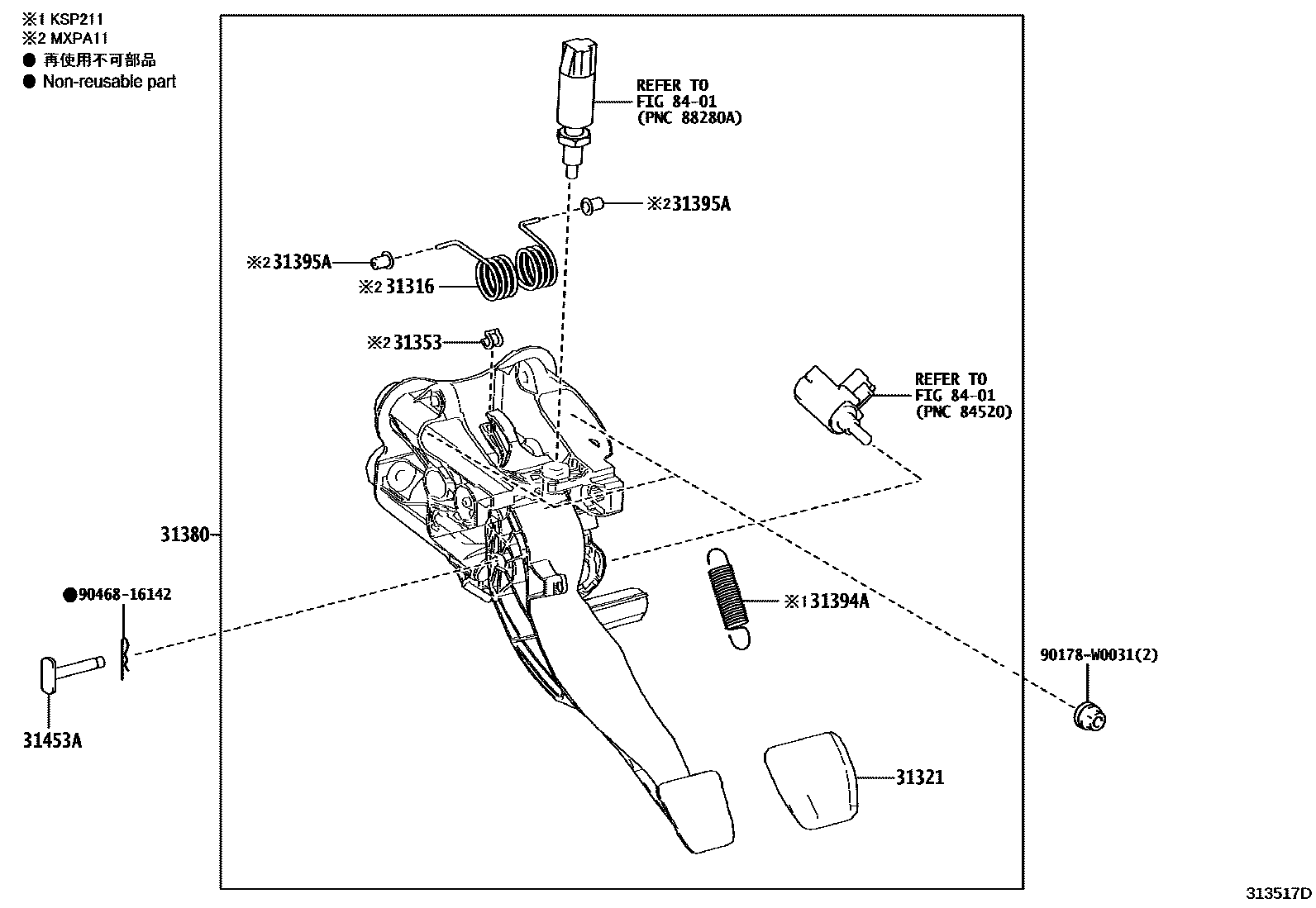

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31316SPRING, TURNOVER CLUTCH PEDAL

main31316-0D010iMXPA11..LHD..6F..N202007-202407

31321PAD, CLUTCH PEDAL

main31321-10050iMXPA11..V202203

main31321-42010iKSP211..G202007-202407

31353HOLDER, CLUTCH PEDAL SPRING

main31353-0D010iMXPA11..LHD..6F..(G,S,V)202007-202407

main31353-26010iMXPA11..RHD..6F..N202007-202407

31380SUPPORT ASSY, PEDAL

main31380-0D670iMXPA11..LHD..V202203

main31380-K0010iKSP211..LHD..(N,R)202007-202105

main31380-K0020iMXPA11..LHD..6F..(G,S)202007-202407

31394ASPRING, PEDAL W/HOOK

main31394-0D050iKSP211..LHD..G202007-202105

31395AHOOK, PEDAL SPRING, NO.1

main31395-0D010iMXPA11..LHD..6F..(G,S,V)202007-202407

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main31455-K0010iKSP211..LHD..G202007-202407

L=51.5

main90249-08051iMXPA11..RHD..6F..N202007-202407

L=31.5

8401

90178W0031

main90178-W0031

9046816142

main90468-16142

10 parts on this diagram · 6 diagrams in section
