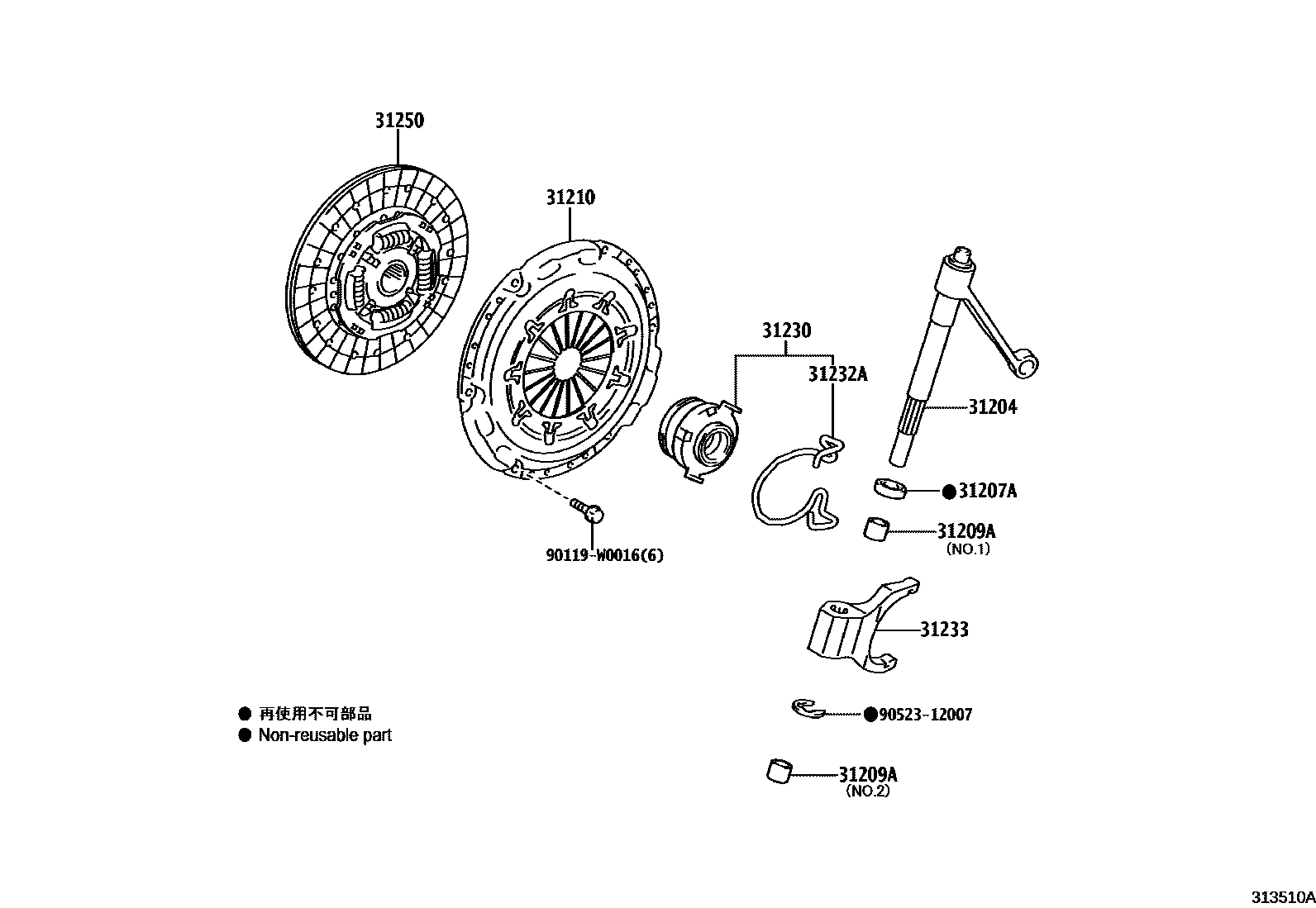

CLUTCH & RELEASE FORK

0001 1 0002 1

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52060iKSP211..RHD..N;KSP211..LHD..(N,R)202007-202205

31207ASEAL, OIL(FOR CLUTCH RELEASE FORK LEVER)

main90310-W0002iKSP211..RHD..R202007-202205

31209ABUSH, BIMETAL FORMED(FOR CLUTCH RELEASE LEVER SUPPORT)

main90384-W0004iKSP211..G202007-202205

NO.2:REFER ILLUST.

main90384-W0005iKSP211..RHD..R202007-202205

NO.1:REFER ILLUST.

31210COVER ASSY, CLUTCH

main31210-K0010iMXPA11..LHD..6F..G;MXPA11..6F..(N,S,V)202007-202407

main31210-K0011iMXPA11..6F202208-202305

sub31210-K0010

main31210-K0020iKSP211..RHD..N;KSP211..LHD..(N,R)202007-202205

31230BEARING ASSY, CLUTCH RELEASE

main31230-52041iKSP211..RHD..R202007-202205

31232ACLIP, RELEASE BEARING HUB

main31232-52041iKSP211202007-202009

sub31232-52042

main31232-52042iKSP211..G202010-202205

31233FORK, CLUTCH RELEASE

main31233-0D012iKSP211..RHD..R202007-202205

31250DISC ASSY, CLUTCH

main31250-K0010iMXPA11..6F..N202007-202407

main31250-K0020iKSP211..RHD..N;KSP211..LHD..(N,R)202007-202205

90119W0016

main90119-W0016

9052312007

main90523-12007

10 parts on this diagram · 2 diagrams in section
