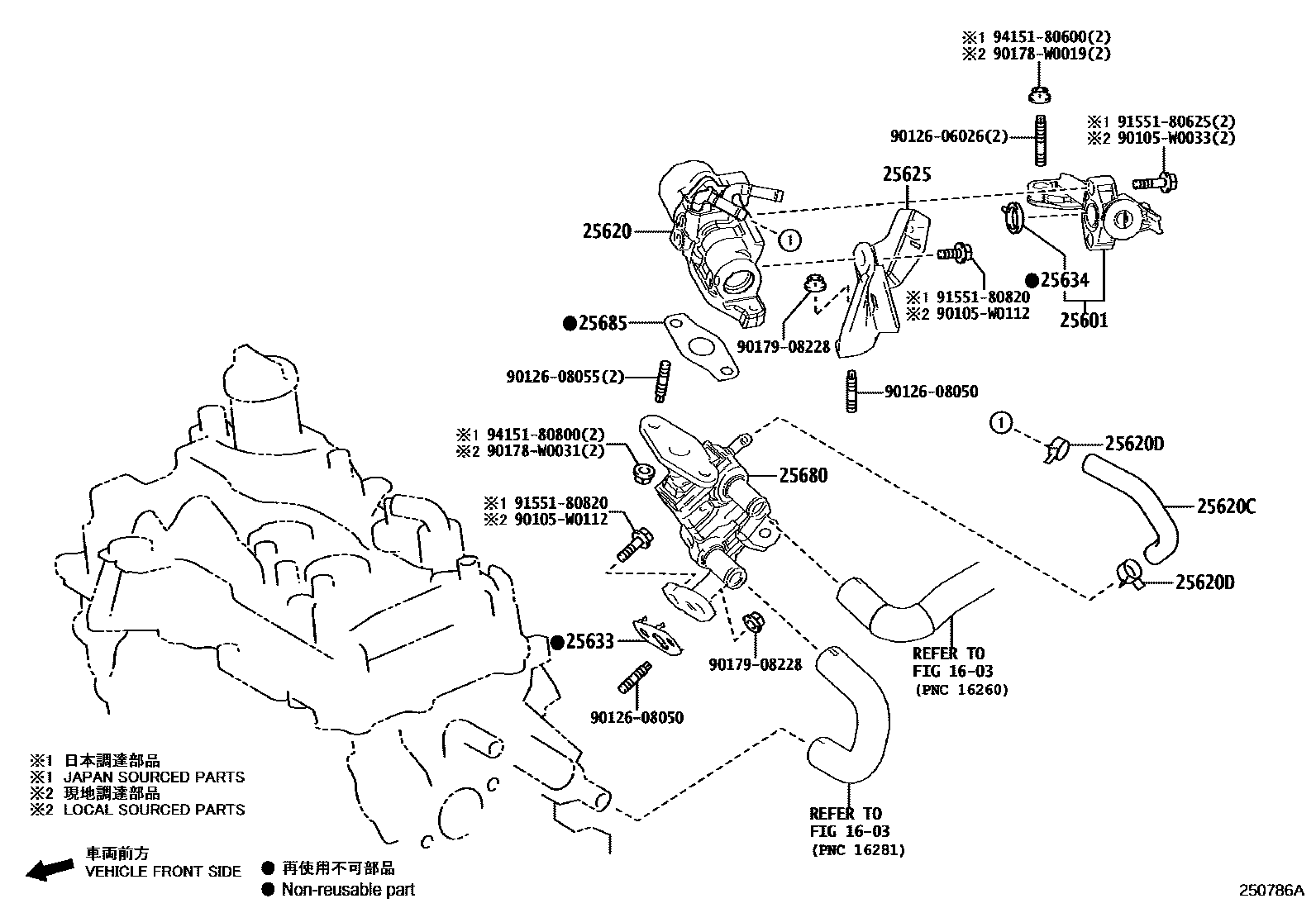

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603

25601PIPE SUB-ASSY, EGR, NO.1

main25601-0Q010i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

main25601-15050iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202007

*119

main25601-F3010iM15#..MXPA11,MXPH11202007-202407

*648

main25601-F3010iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202401-202407

25620VALVE ASSY, EGR

main25620-15360iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202007-202401

*119

main25620-15360iM15AFXE..MXPH11..RHD..R202007-202407

*648

main25620-40040i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

25620CHOSE, WATER BY-PASS, NO.1

main16267-0Q010i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

25620DCLIP(FOR WATER BY-PASS HOSE, NO.1)

main96137-41501i1KRFE..KSP211202007-202008

main96138-41501i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202008-202205

25625BRACKET, EGR VALVE

main25625-0Q010i1KRFE..KSP211..RHD..R202007-202205

25633GASKET, EGR VALVE

main25633-0Q030i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

25634GASKET, EGR PIPE

main25634-15010iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP202007-202401

*119

main25634-40010i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

main25634-F3010iM15AFKS..MXPA11..6F..N;M15AFXE..MXPH11..N,S,V;M15AFKS..MXPA11..LHD..CVT..N;M15AFXE..MXPH11..LHD..R..FRP202007-202407

*648

25680COOLER ASSY, EGR

main25680-0Q010i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

main25680-15020iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP;M15AFKS..MXPA11..LHD..(G,S,V);M15AFKS..MXPA11..RHD..6F..(S,V);M15AFKS..MXPA11..RHD..CVT..(N,S)202007-202407

*648

main25680-15020iM15AFXE..MXPH11..RHD..R202007-202205

*119

main25680-15020iM15AFXE..MXPH11..LHD..R;M15AFXE..MXPH11..G,N,S,V202007-202308

main25680-15030iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202401

*119

main25680-15030iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202309-202401

25685GASKET, EGR COOLER, NO.1

main25685-0Q010i1KRFE..KSP211..RHD..R202007-202205

main25685-15010iM15AFKS..MXPA11..RHD..G;M15AFXE..MXPH11..RHD..R202007-202407

*648

main25685-15010iM15AFXE..MXPH11..RHD..R202007-202401

*119

90105W0033

main90105-W0033

90105W0112

main90105-W0112

9012606026

main90126-06026

9012608050

main90126-08050

9012608055

main90126-08055

90178W0019

main90178-W0019

90178W0031

main90178-W0031

9017908228

main90179-08228

9155180625

main91551-80625

9155180820

main91551-80820

9415180600

main94151-80600

9415180800

main94151-80800

22 parts on this diagram · 2 diagrams in section
