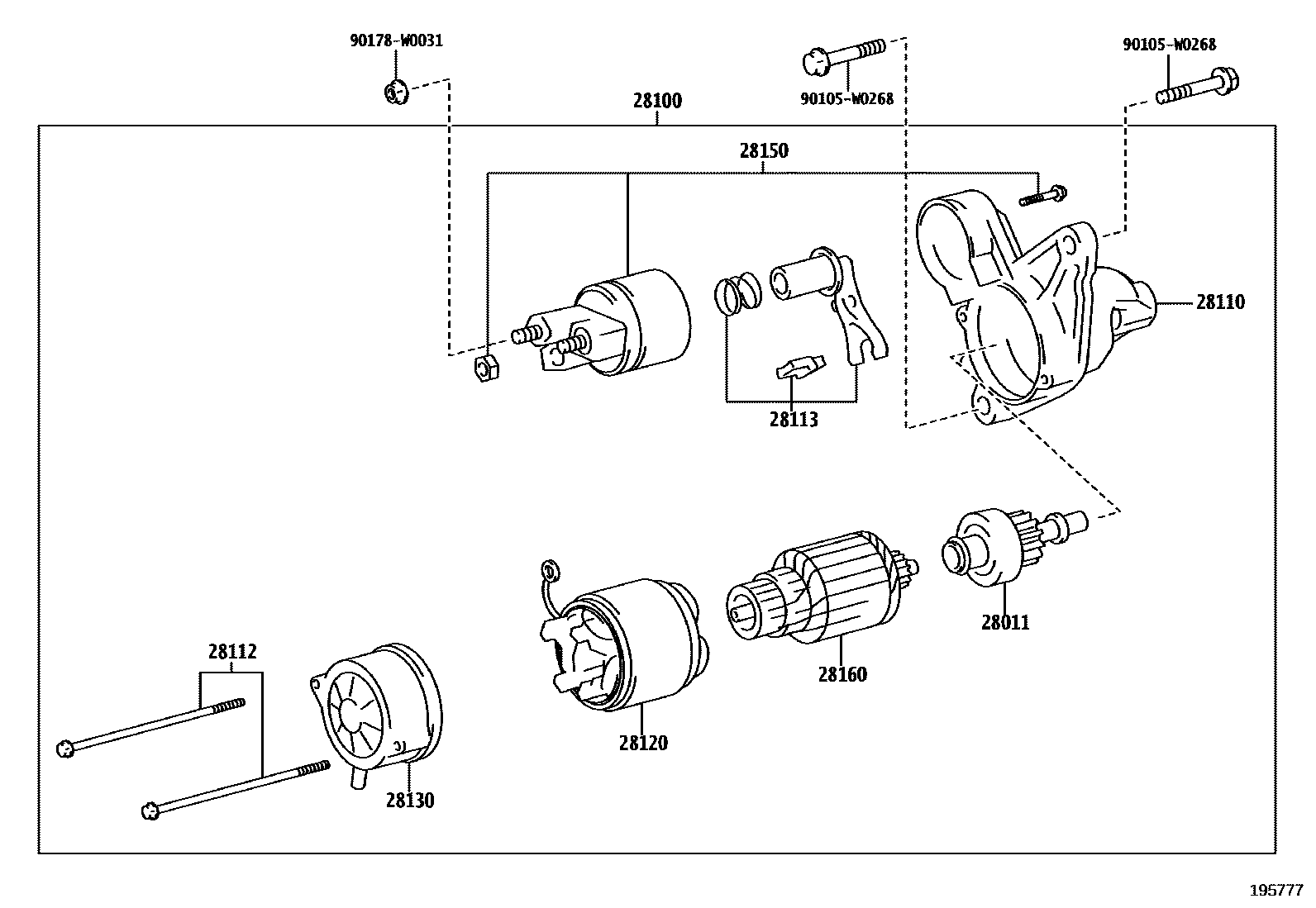

STARTER

0001 112V 1.0KW 0002 112V 1.0KW 0003 112V 1.2KW

28011CLUTCH SUB-ASSY, STARTER

main28011-0Q160i1KRFE..KSP211..RHD..R202007-202205

28100STARTER ASSY

main28100-0Q160i1KRFE..KSP211..RHD..N;1KRFE..KSP211..LHD..(N,R)202007-202205

12V 1.0KW

main28100-K0010iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202007-202407

12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-0Q160i1KRFE..KSP211..G202007-202205

28112BOLT, HOUSING SET

main28112-0Q160i1KRFE..KSP211..G202007-202205

28113LEVER, STARTER PINION DRIVE

main28113-0Q160i1KRFE..KSP211..G202007-202205

28120YOKE ASSY, STARTER

main28120-0Q160i1KRFE..KSP211..G202007-202205

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0Q160i1KRFE..KSP211..G202007-202205

28150SWITCH ASSY, MAGNET STARTER

main28150-0Q160i1KRFE..KSP211..G202007-202205

28160ARMATURE ASSY, STARTER

main28160-0Q160i1KRFE..KSP211..G202007-202205

main28160-21070iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202007-202407

90105W0268

main90105-W0268

90178W0031

main90178-W0031

11 parts on this diagram · 3 diagrams in section
