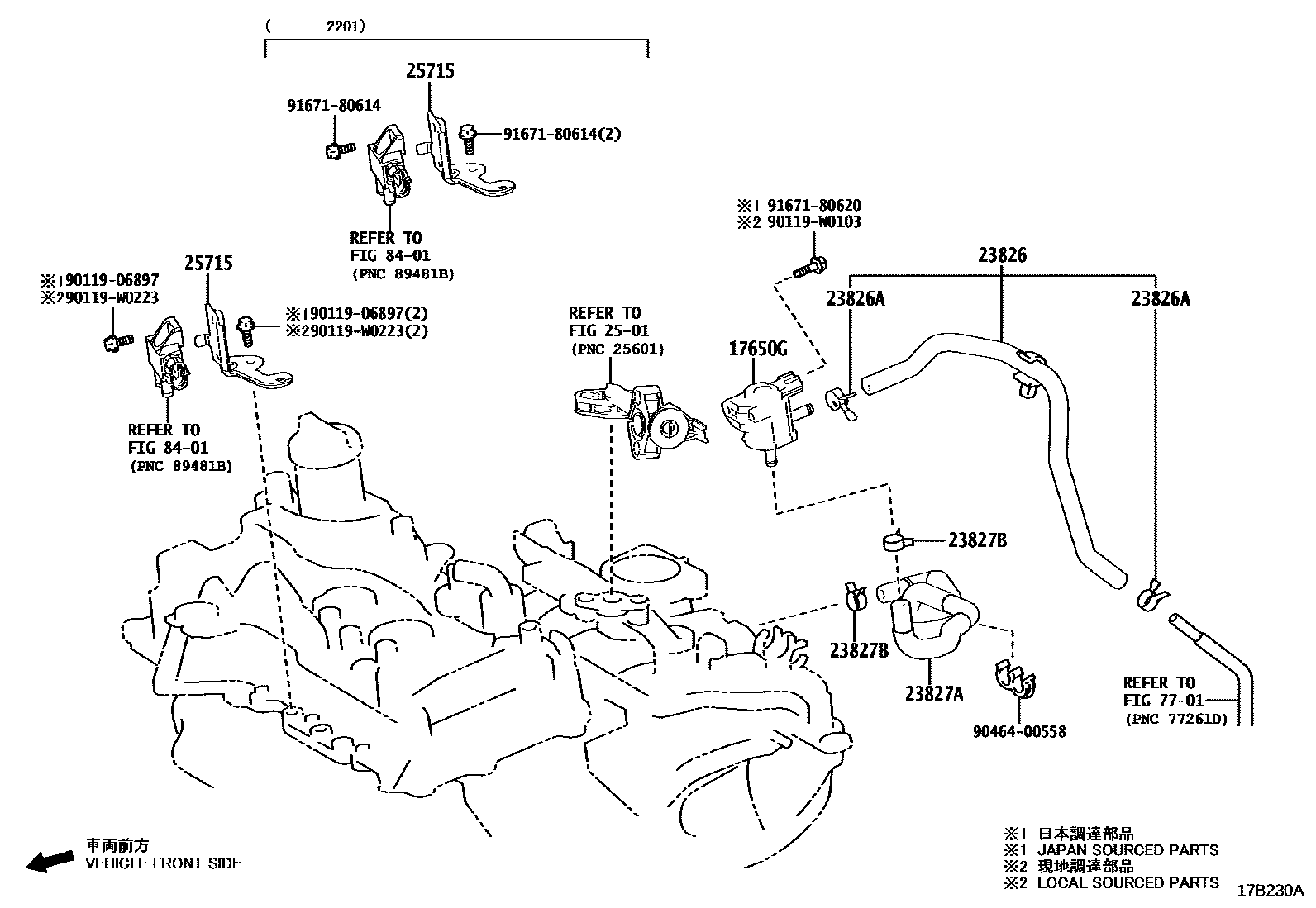

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1W(GPF)

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12282i1KRFE..KSP211..RHD..R202007-202205

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-F3070iM15AFKS..MXPA11..RHD..G202007-202205

main23826-F3080iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..LHD..R..FRP202007-202401

main23826-K0020i1KRFE..KSP211..RHD..R202007-202205

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-W0006×2i1KRFE..KSP211..RHD..R202007-202205

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0Q010i1KRFE..KSP211..RHD..R202007-202205

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96138-41501×2i1KRFE..KSP211202007-202205

2501

25715BRACKET, EMISSION CONTROL VALVE

main25715-0Q010i1KRFE..KSP211202007-202201

main25715-0Q020i1KRFE..KSP211..LHD;1KRFE..KSP211..RHD..N202201

main25715-F3010iM15AFKS..MXPA11..6F..N;M15AFXE..MXPH11..N,S,V;M15AFKS..MXPA11..LHD..CVT..N;M15AFXE..MXPH11..LHD..R..FRP202007-202401

7701

8401

9011906897

main90119-06897

90119W0103

main90119-W0103

90119W0223

main90119-W0223

9046400558

main90464-00558

9167180614

main91671-80614

9167180620

main91671-80620
