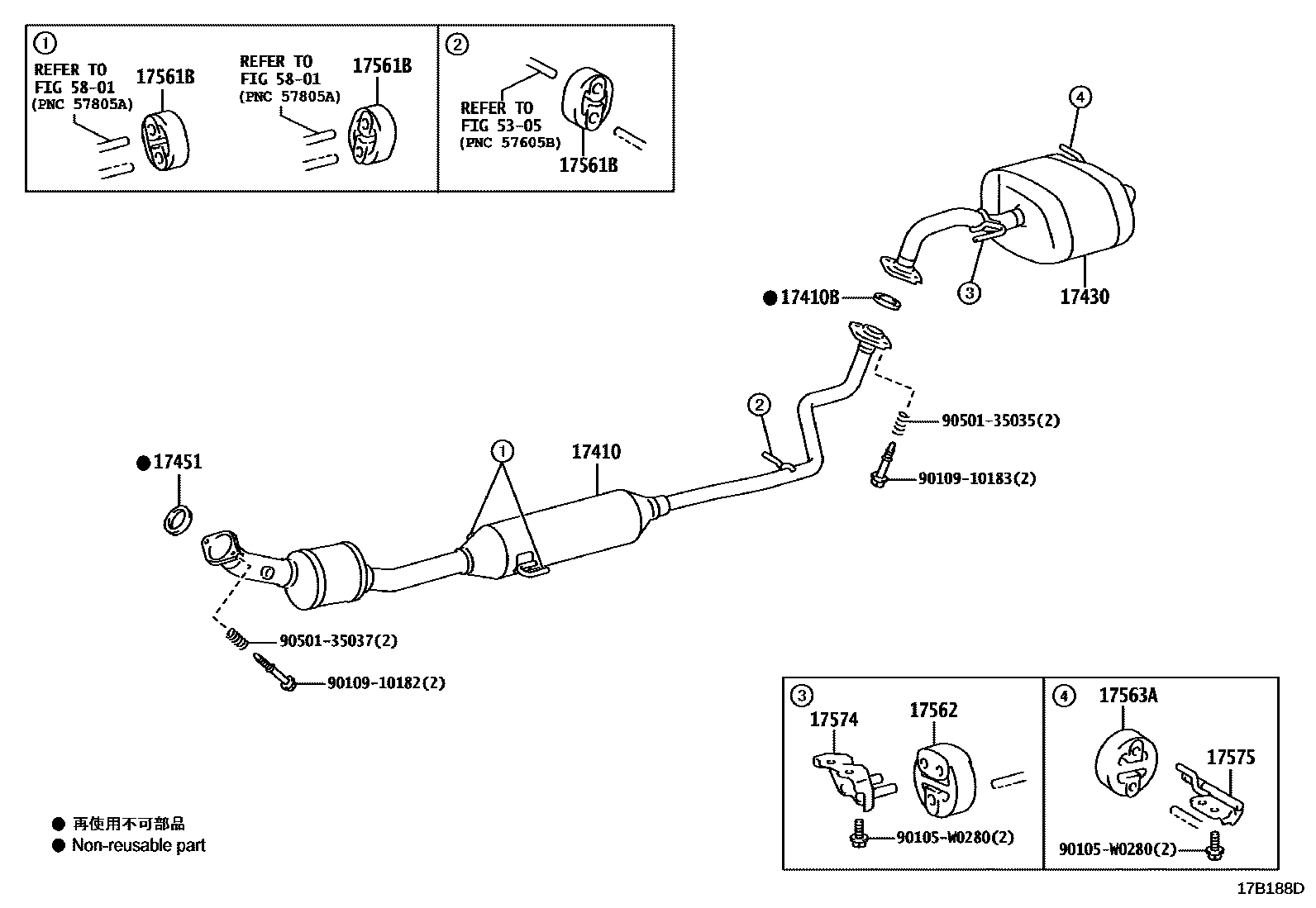

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-K0080iM15AFKS..MXPA11..RHD..G202007-202407

*114=TOYOTA/A64/Y

main17410-K0100iM15AFXE..MXPH11..RHD..R202007-202401

*114=TOYOTA/A65/Y

main17410-K0130i1KRFE..KSP211..RHD..N;1KRFE..KSP211..LHD..(N,R)202007-202205

*114=TOYOTA/NK2/Y

17410BGASKET, EXHAUST PIPE

main17451-0J022iM15AFXE..MXPH1#..N,S,V;M15AFXE..MXPH11..R..FRP202007-202407

17430PIPE ASSY, EXHAUST, TAIL

main17430-0Q090i1KRFE..KSP211..RHD..R202007-202205

main17430-F3070iM15AFKS..MXPA11..V202203-202401

main17430-K0050iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202007-202407

17451GASKET, EXHAUST PIPE

main17451-0J030iM15AFXE..MXPH1#..N,S,V;M15AFXE..MXPH11..R..FRP202007-202407

main17451-0Q030i1KRFE..KSP211..RHD..N;1KRFE..KSP211..LHD..(N,R)202007-202205

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-0Q030i1KRFE..KSP211..G202007-202407

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-74320i1KRFE..KSP211..G202007-202407

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-0T040i1KRFE..KSP211..G202007-202407

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

main17574-K0030i1KRFE..KSP211..G202007-202407

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-K0030i1KRFE..KSP211..G202007-202407

5305

5801

90105W0280

main90105-W0280

9010910182

main90109-10182

9010910183

main90109-10183

9050135035

main90501-35035

9050135037

main90501-35037

16 parts on this diagram · 3 diagrams in section
