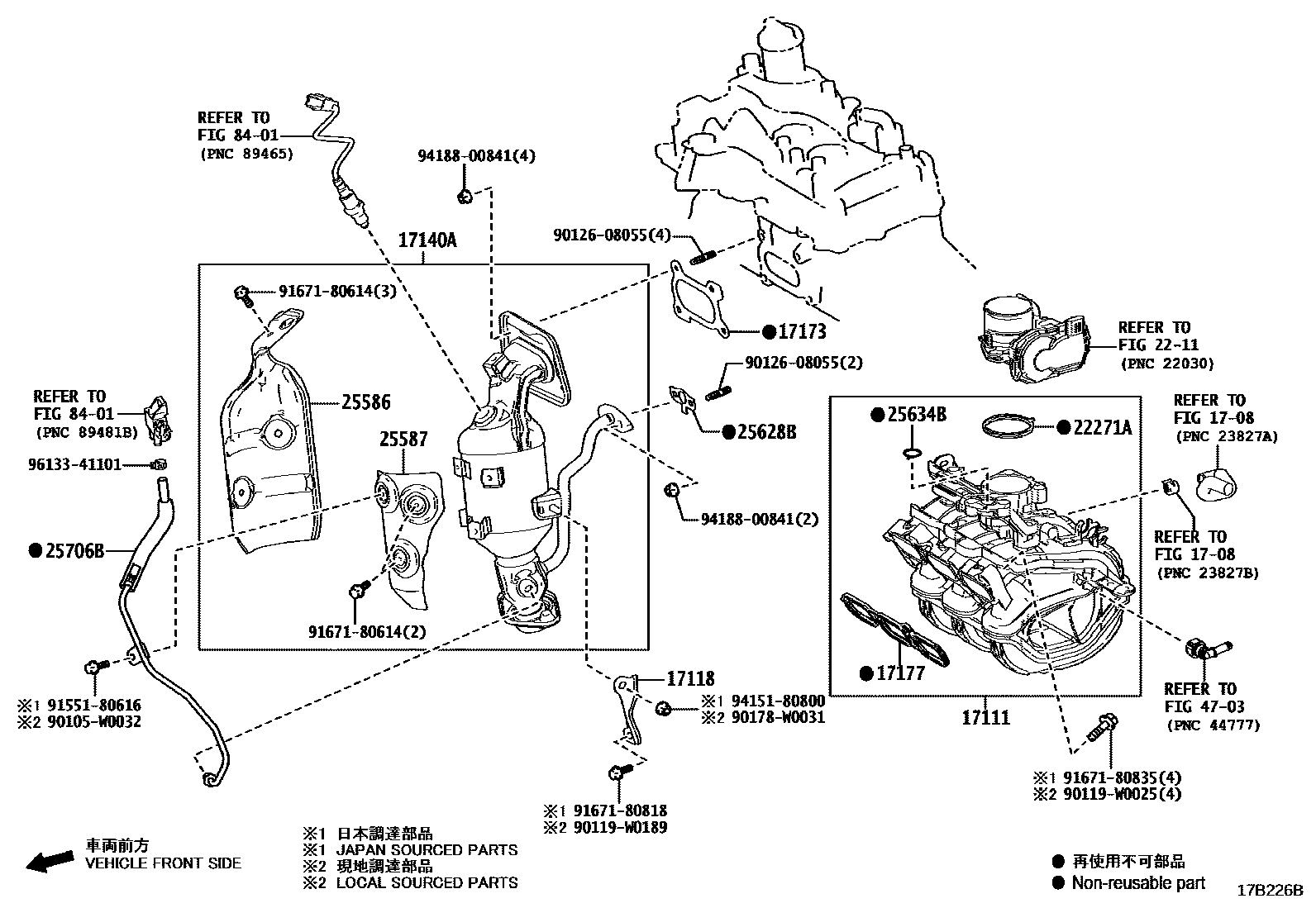

MANIFOLD

0001 1 0002 1W/O(DESTINATION PACKAGE(EUROP0003 1 0004 1

1708

17111MANIFOLD, INTAKE

main17101-15130iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202007

*119

main17120-0Q050i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

main17120-F3030iM15AFKS..MXPA11202007-202407

main17120-F3040iM15AFXE..MXPH11202007

*648

17118STAY, MANIFOLD

main17118-0Q020i1KRFE..KSP211..RHD..R202007-202205

main17118-F3010iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202007-202407

17140AMANIFOLD ASSY, EXHAUST

main17140-0Q120i1KRFE..KSP211..RHD..R202007-202205

*114=TOYOTA/0Q120/Y

main17140-F3010iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202007-202407

*114=TOYOTA/F3010/Y

main17140-F3090iM15AFXE..MXPH1#..N,S,V;M15AFXE..MXPH11..R..FRP202401

*114=TOYOTA/F3090/Y

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0Q030i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

main17173-15050iM15AFKS..MXPA11..6F..N;M15AFXE..MXPH11..N,S,V;M15AFKS..MXPA11..LHD..CVT..N;M15AFXE..MXPH11..LHD..R..FRP202007-202407

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-15040iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202401

*119

main17171-15040iM15AFXE..MXPH11..RHD..R202007-202401

*648,*119

main17171-15040iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202401-202407

main17171-15040iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202401

*648

main17177-0Q040i1KRFE..KSP211..RHD..R202007-202205

2211

22271AGASKET, THROTTLE BODY

main22271-0Q020i1KRFE..KSP211..RHD..R202007-202205

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-0Q070i1KRFE..KSP211..RHD..R202007-202205

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-40010i1KRFE..KSP211..RHD..R202007-202205

25628BGASKET, EGR INLET

main25628-0Q010i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

(L)

main25628-40020i1KRFE..KSP211..RHD..R202007-202205

(J)

25634BGASKET, EGR PIPE

main25634-40010i1KRFE..KSP211..RHD..R202007-202205

25706BPIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-0Q010i1KRFE..KSP211202007

4703

8401

90105W0032

main90105-W0032

90119W0025

main90119-W0025

90119W0189

main90119-W0189

9012608055

main90126-08055

90178W0031

main90178-W0031

9155180616

main91551-80616

9167180614

main91671-80614

9167180818

main91671-80818

9167180835

main91671-80835

9415180800

main94151-80800

9418800841

main94188-00841

9613341101

main96133-41101

27 parts on this diagram · 4 diagrams in section
