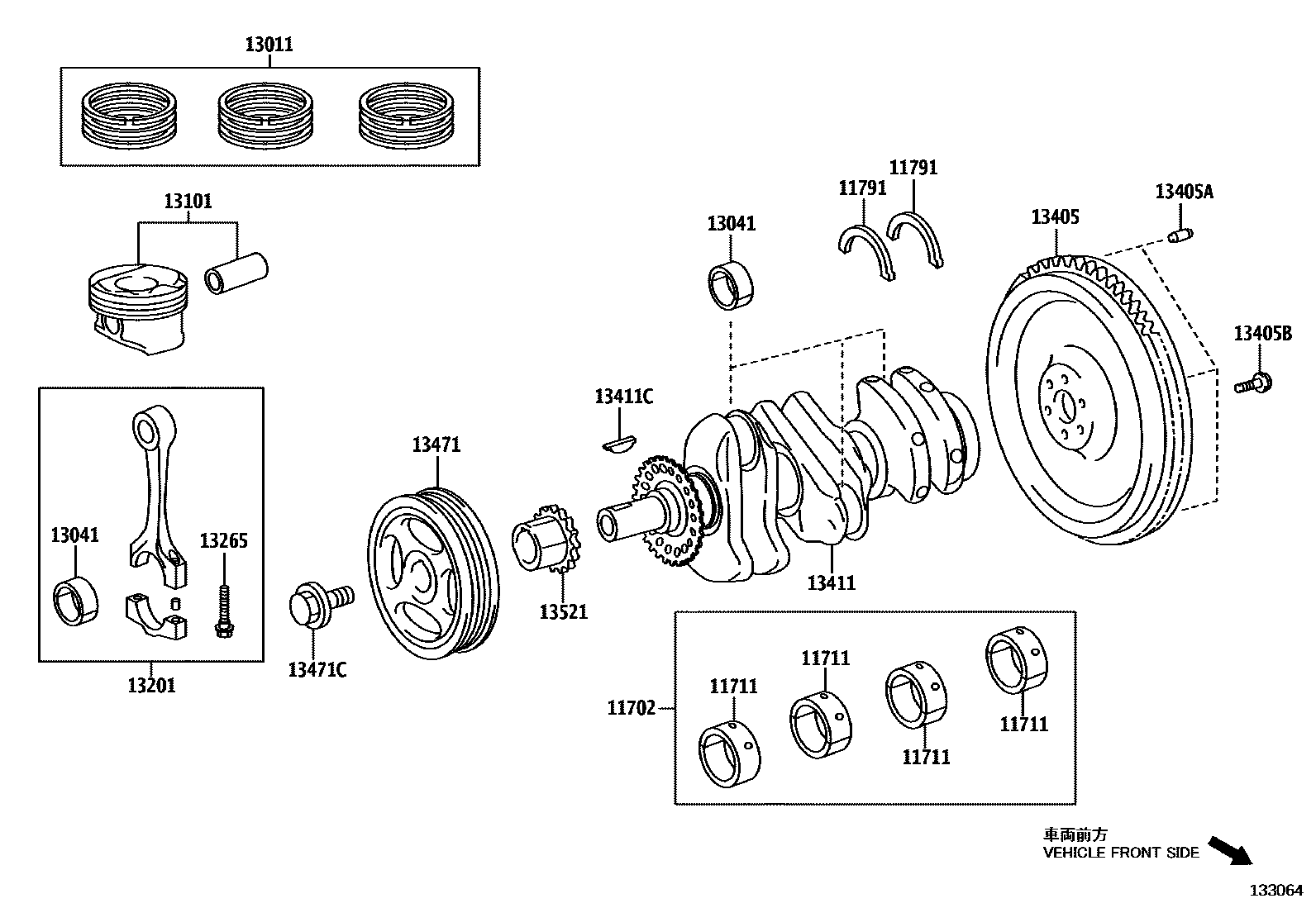

CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
main11704-0Q030i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007 U/S 0.25
11711BEARING, CRANKSHAFT
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
main11701-15060-02×4iM15AFXE..MXPH11..LHD..R;M15AFXE..MXPH11..G,N,S,V202007-202303 MARK 2,*119:REFER R/M
main11701-15060-04×4iM15AFXE..MXPH11..LHD..R;M15AFXE..MXPH11..G,N,S,V202007-202303 MARK 4,*119:REFER R/M
main11701-15060-06×4iM15AFXE..MXPH11..LHD..R;M15AFXE..MXPH11..G,N,S,V202007-202303 MARK 6,*119:REFER R/M
main11701-15061-01×4iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202303-202401 MARK 1,*119:REFER R/M
main11701-15061-02×4iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP202303 MARK 2,*119:REFER R/M
main11701-15061-03×4iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202303-202401 MARK 3,*119:REFER R/M
main11701-15061-04×4iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP202303 MARK 4,*119:REFER R/M
main11701-15061-05×4iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP202303 MARK 5,*119:REFER R/M
main11701-15061-06×4iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP202303 MARK 6,*119:REFER R/M
main11701-F3010-01×4iM15AFKS..MXPA11..RHD..G;M15AFXE..MXPH11..RHD..R202007-202205 MARK 1,*648:REFER R/M
main11701-F3010-02×4iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP;M15AFKS..MXPA11..LHD..(G,S,V);M15AFKS..MXPA11..RHD..6F..(S,V);M15AFKS..MXPA11..RHD..CVT..(N,S)202007 MARK 2,*648:REFER R/M
main11701-F3010-03×4iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202401-202407 MARK 3,*648:REFER R/M
main11701-F3010-04×4iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP;M15AFKS..MXPA11..LHD..(G,S,V);M15AFKS..MXPA11..RHD..6F..(S,V);M15AFKS..MXPA11..RHD..CVT..(N,S)202007 MARK 4,*648:REFER R/M
main11701-F3010-05×4iM15AFKS..MXPA11..RHD..G;M15AFXE..MXPH11..RHD..R202007-202205 MARK 5,*648:REFER R/M
main11701-F3010-06×4iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202401-202407 MARK 6,*648:REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-F2040×2iM15AFKS..MXPA11..6F..N;M15AFXE..MXPH11..N,S,V;M15AFKS..MXPA11..LHD..CVT..N;M15AFXE..MXPH11..LHD..R..FRP202007-202401 STD,*648
main11793-0Q020×2i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007 O/S 0.25
13011RING SET, PISTON
main13011-15150iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..LHD..R..FRP202007-202401 STD,*119
main13011-F3010iM15AFKS..MXPA11..6F..N;M15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP;M15AFKS..MXPA11..LHD..CVT..N202306-202401 STD,(L),*648
13041BEARING, CONNECTING ROD
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
main13041-24020-01×3iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202401 MARK 1,*119:REFER R/M
main13041-24020-02×3iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..LHD..R..FRP202007-202401 MARK 2,*119:REFER R/M
main13041-24020-03×3iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..LHD..R..FRP202007-202401 MARK 3,*119:REFER R/M
main13041-F2010-01×3iM15AFXE..MXPH1#..N,S,V;M15AFXE..MXPH11..R..FRP202401 MARK 1,*648:REFER R/M
main13041-F2010-02×3iM15AFKS..MXPA11..RHD..G;M15AFXE..MXPH11..RHD..R202007-202205 MARK 2,*648:REFER R/M
main13041-F2010-03×3iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202401-202407 MARK 3,*648:REFER R/M
13101PISTON SUB-ASSY, W/PIN
main13101-40100×3i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007 STD
main13101-F2040×3iM15AFXE..MXPH1#..N,S,V;M15AFXE..MXPH11..R..FRP202401 STD,*119
13201ROD SUB-ASSY, CONNECTING
main13201-29835-A0×3iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202401 MARK A,*119:REFER R/M
main13201-29835-B0×3iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202401 MARK B,*119:REFER R/M
main13201-29835-C0×3iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202401 MARK C,*119:REFER R/M
main13201-F9010-A0×3iM15AFKS..MXPA11..6F..N;M15AFXE..MXPH11..N,S,V;M15AFKS..MXPA11..LHD..CVT..N;M15AFXE..MXPH11..LHD..R..FRP202007-202401 MARK A,*648:REFER R/M
main13201-F9010-B0×3iM15AFKS..MXPA11..RHD..G;M15AFXE..MXPH11..RHD..R202007-202205 MARK B,*648:REFER R/M
main13201-F9010-C0×3iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP;M15AFKS..MXPA11..LHD..(G,S,V);M15AFKS..MXPA11..RHD..6F..(S,V);M15AFKS..MXPA11..RHD..CVT..(N,S)202007 MARK C,*648:REFER R/M
13265BOLT, CONNECTING ROD
main13265-21020×6i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007 main13265-25020×6iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP;M15AFKS..MXPA11..LHD..(G,S,V);M15AFKS..MXPA11..RHD..6F..(S,V);M15AFKS..MXPA11..RHD..CVT..(N,S)202007 *648
13405FLYWHEEL SUB-ASSY
main13405-F3020iM15AFKS..MXPA11..6F..(S,V);M15AFKS..MXPA11..LHD..6F..G202007 main13451-15111iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP202106 *119T/P B:REF.ILLUST
main13451-F3050iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP202107 *648T/P B:REF.ILLUST
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08120×3iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..LHD..R..FRP202007-202401 L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
main90105-12404×8iM15AFXE..MXPH1#..N,S,V;M15AFXE..MXPH11..R..FRP202401 *648
13411CRANKSHAFT
main13401-F3010iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..LHD..R..FRP202007-202401 *648
main13401-0Q020supersedes 13401-0Q030i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007 WITH(STOP & START SYSTEM)
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
main90250-06035iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..LHD..R..FRP202007-202401 *648,*119
main90280-04001i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007 13471PULLEY, CRANKSHAFT
main13470-0Q012i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007 13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-14106i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007 13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0Q020i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007 main13521-15030iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP202007 *119
main13521-F3010iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..LHD..R..FRP202007-202401 *648
16 parts on this diagram · 3 diagrams in section
