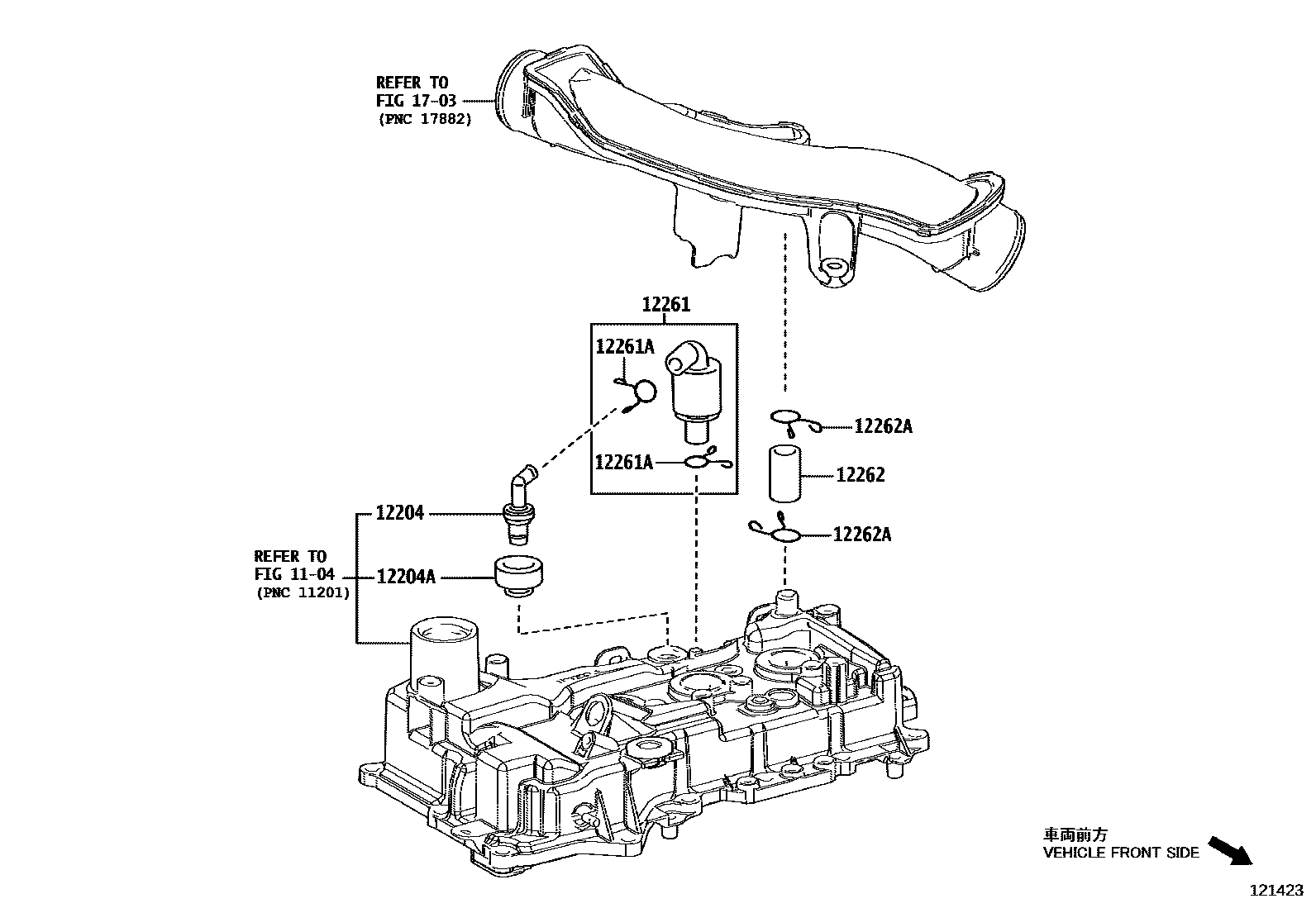

VENTILATION HOSE

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

12204VALVE SUB-ASSY, VENTILATION

main12204-40040i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18016i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

12261HOSE, VENTILATION

main12261-0Q010i1KRFE..KSP211202007-202111

main12261-0Q011i1KRFE..KSP211..LHD;1KRFE..KSP211..RHD..N202111-202205

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-15120i1KRFE..KSP211..RHD..R202007-202205

12262HOSE, VENTILATION, NO.2

main12262-15100iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202007-202407

main12262-15110iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..LHD..R..FRP202007-202401

main12262-40040i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202407

1703AIR CLEANER

→ Go to FIG 17-03

8 parts on this diagram · 2 diagrams in section
