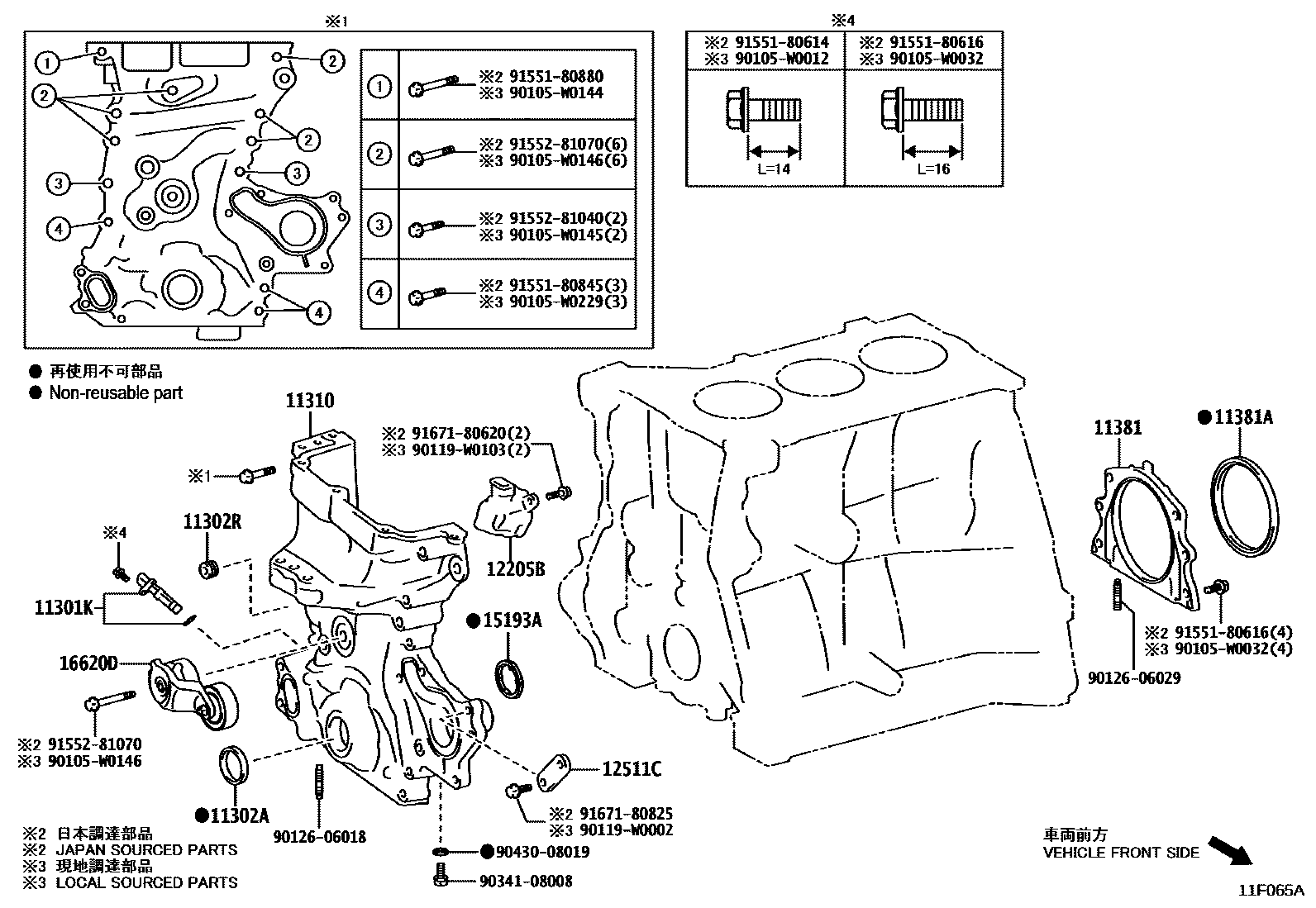

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301KSENSOR, CRANK POSITION

main90919-05062i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

(J)

main90919-W5002i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

(L)

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38092i1KRFE..KSP211..RHD..R202007-202205

(J)

main90311-W0013i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

(L)

11302RPLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)

main90344-53006i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

11310COVER ASSY, TIMING CHAIN

main11310-0Q040i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

main11310-15010iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202007-202401

*119

main11310-F3010iM15AFKS..MXPA11..6F..N;M15AFXE..MXPH11..N,S,V;M15AFKS..MXPA11..LHD..CVT..N;M15AFXE..MXPH11..LHD..R..FRP202007-202407

*648

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0Q020i1KRFE..KSP211..RHD..R202007-202205

11381ASEAL, ENGINE REAR OIL

main90311-73005i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

(J)

main90311-W0018i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007-202205

(L)

12205BCASE SUB-ASSY, VENTILATION

main12205-0Q020i1KRFE..KSP211..RHD..R202007-202207

12511CBRACKET, ALTERNATOR

main12511-0Q010i1KRFE..KSP211..RHD..R202007-202205

15193AGASKET, OIL PUMP

main15193-15010iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP202007-202407

NO.1:REFER ILLUST.

main15193-15010iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP202007-202401

*648,NO.1:REFER ILL.,*119,NO.1:REFER ILL.

main15193-15010iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202401

*119,NO.1:REFER ILL.

main15193-15010iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202401

*648,NO.1:REFER ILL.

main15193-40010i1KRFE..KSP211..RHD..R202007-202205

main15197-15040iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202401

*648,NO.2:REFER ILL.

main15197-15040iM15AFXE..MXPH11..RHD..R202007-202401

*648,NO.2:REFER ILL.,*119,NO.2:REFER ILL.

main15197-15040iM15AFXE..MXPH11..RHD..R202007-202407

NO.2:REFER ILLUST.

main15197-15040iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202401

*119,NO.2:REFER ILL.

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-0Q020i1KRFE..KSP211202007-202201

sub16620-0Q021

main16620-0Q021i1KRFE..KSP211..RHD..R202202-202205

main16620-24020iM15AFKS..MXPA11202007-202105

sub16620-24021

main16620-24021iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202106-202407

90105W0012

main90105-W0012

90105W0032

main90105-W0032

90105W0144

main90105-W0144

90105W0145

main90105-W0145

90105W0146

main90105-W0146

90105W0229

main90105-W0229

90119W0002

main90119-W0002

90119W0103

main90119-W0103

9012606018

main90126-06018

9012606029

main90126-06029

9034108008

main90341-08008

9043008019

main90430-08019

9155180614

main91551-80614

9155180616

main91551-80616

9155180845

main91551-80845

9155180880

main91551-80880

9155281040

main91552-81040

9155281070

main91552-81070

9167180620

main91671-80620

9167180825

main91671-80825

30 parts on this diagram · 3 diagrams in section
