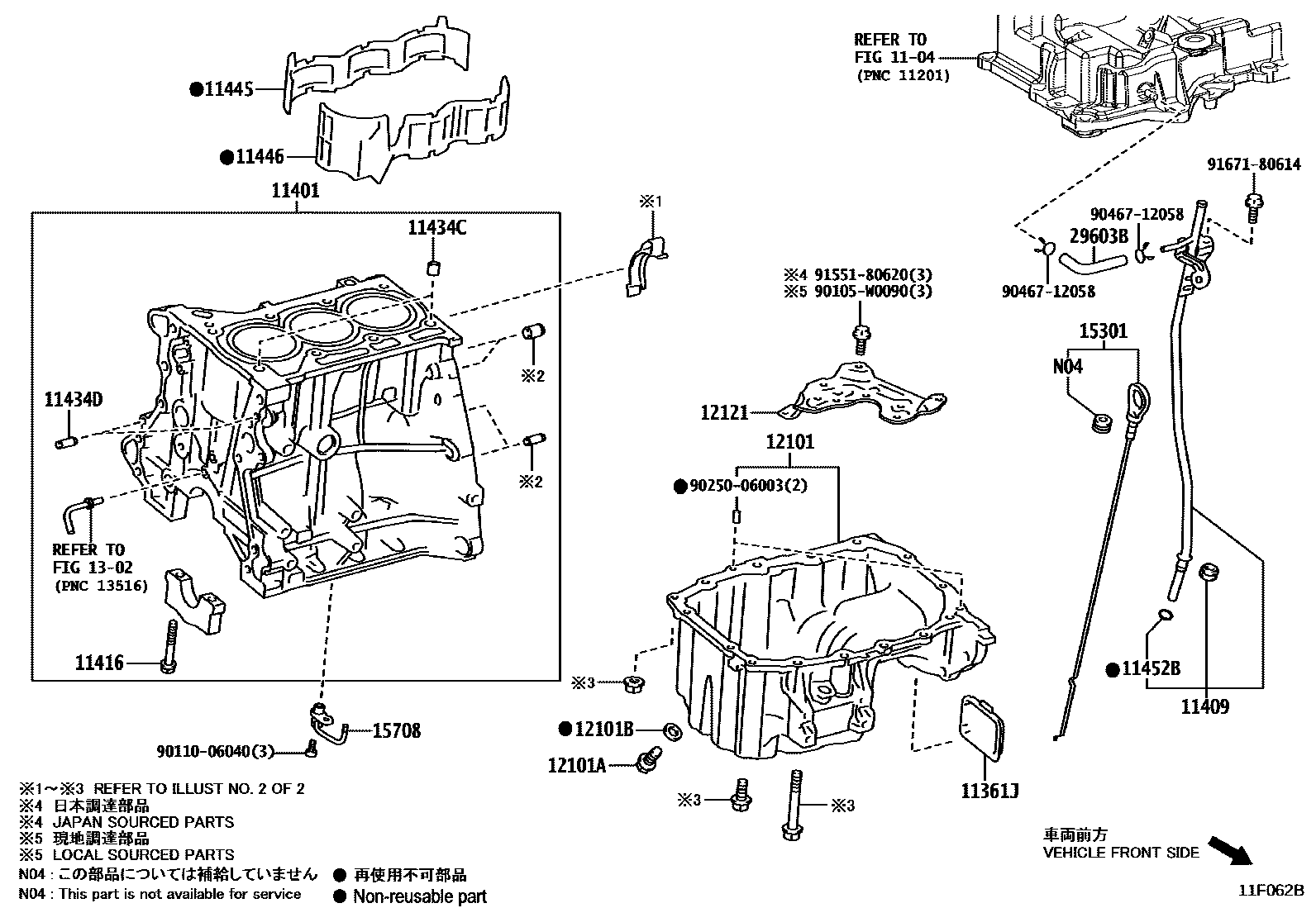

CYLINDER BLOCK

0001 1 0002 1W/O(DESTINATION PACKAGE(EUROP0003 1 0004 1CYLINDER BLOCK 0005 1CYLINDER BLOCK 0006 1FITTING PARTS 0007 1FITTING PARTS

1104

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-23020i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007

main11361-25010iM15AFKS..MXPA11..6F..N;M15AFXE..MXPH11..N,S,V;M15AFKS..MXPA11..LHD..CVT..N;M15AFXE..MXPH11..LHD..R..FRP202007-202401

11401BLOCK SUB-ASSY, CYLINDER

main11401-0Q040i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007

main11410-19005iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202401

*119

main11410-F9110iM15AFKS..MXPA11..6F..N;M15AFXE..MXPH11..N,S,V;M15AFKS..MXPA11..LHD..CVT..N;M15AFXE..MXPH11..LHD..R..FRP202007-202401

*648

11409GUIDE SUB-ASSY, OIL LEVEL GAGE

main11409-0Q020i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10531×8i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007

main90910-02197×8iM15AFXE..MXPH11..RHD..R202007-202205

*648

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-12002×2i1KRFE..KSP211..RHD..R202007-202205

L=12,OD=12

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003×4i1KRFE..KSP211..RHD..R202007-202205

L=14,OD=6

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-15010iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202401-202407

(J),*648

main11445-40030i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007

main11445-F3010iM15#..MXPA11,MXPH11202104

(L),*648

main11445-F3040iM15AFXE..MXPH1#..N,S,V;M15AFXE..MXPH11..R..FRP202401

*648,MADE IN INDIA

11446SPACER, CYLINDER BLOCK WATER JACKET, LH

main11446-40010i1KRFE..KSP211..RHD..R202007-202205

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007

12101PAN SUB-ASSY, OIL

main12101-0Q050i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007

main12102-15010iM15AFXE..MXPH11..G;M15AFXE..MXPH11..R..CZEP202007

*119

main12102-F3010iM15AFXE..MXPH1#..N,S,V;M15AFXE..MXPH11..R..FRP202401

*648

main12101-0Q030i1KRFE..KSP211..LHD..FRP202007

MOROCCO SPEC

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..R..FRP202401

*648

main90341-12032i1KRFE..KSP211..G,N;1KRFE..KSP211..LHD..R202007

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90080-43037i1KRFE..KSP211..RHD..R202007-202205

main90430-12031iM15AFKS..MXPA11..RHD..G202007-202205

*648,*119

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-0Q040i1KRFE..KSP211..RHD..R202007-202205

main12121-F3010iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202401-202407

main12121-0Q030i1KRFE..KSP211..LHD..FRP202007

MOROCCO SPEC

1302

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0Q050i1KRFE..KSP211..RHD..R202007-202205

main15301-0Q040i1KRFE..KSP211..LHD..FRP202007

MOROCCO SPEC

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-15010×3iM15AFKS..MXPA11..6F..N;M15AFXE..MXPH11..N,S,V;M15AFKS..MXPA11..LHD..CVT..N;M15AFXE..MXPH11..LHD..R..FRP202007-202401

*648

main15708-40010×3i1KRFE..KSP211..RHD..R202007-202205

29603BHOSE, OIL(FOR OIL LEVEL GAUGE GUIDE)

main29603-40010i1KRFE..KSP211..RHD..R202007-202205

90105W0090

main90105-W0090

9011006040

main90110-06040

9025006003

main90250-06003

9046712058

main90467-12058

9155180620

main91551-80620

9167180614

main91671-80614

24 parts on this diagram · 7 diagrams in section
