CYLINDER HEAD

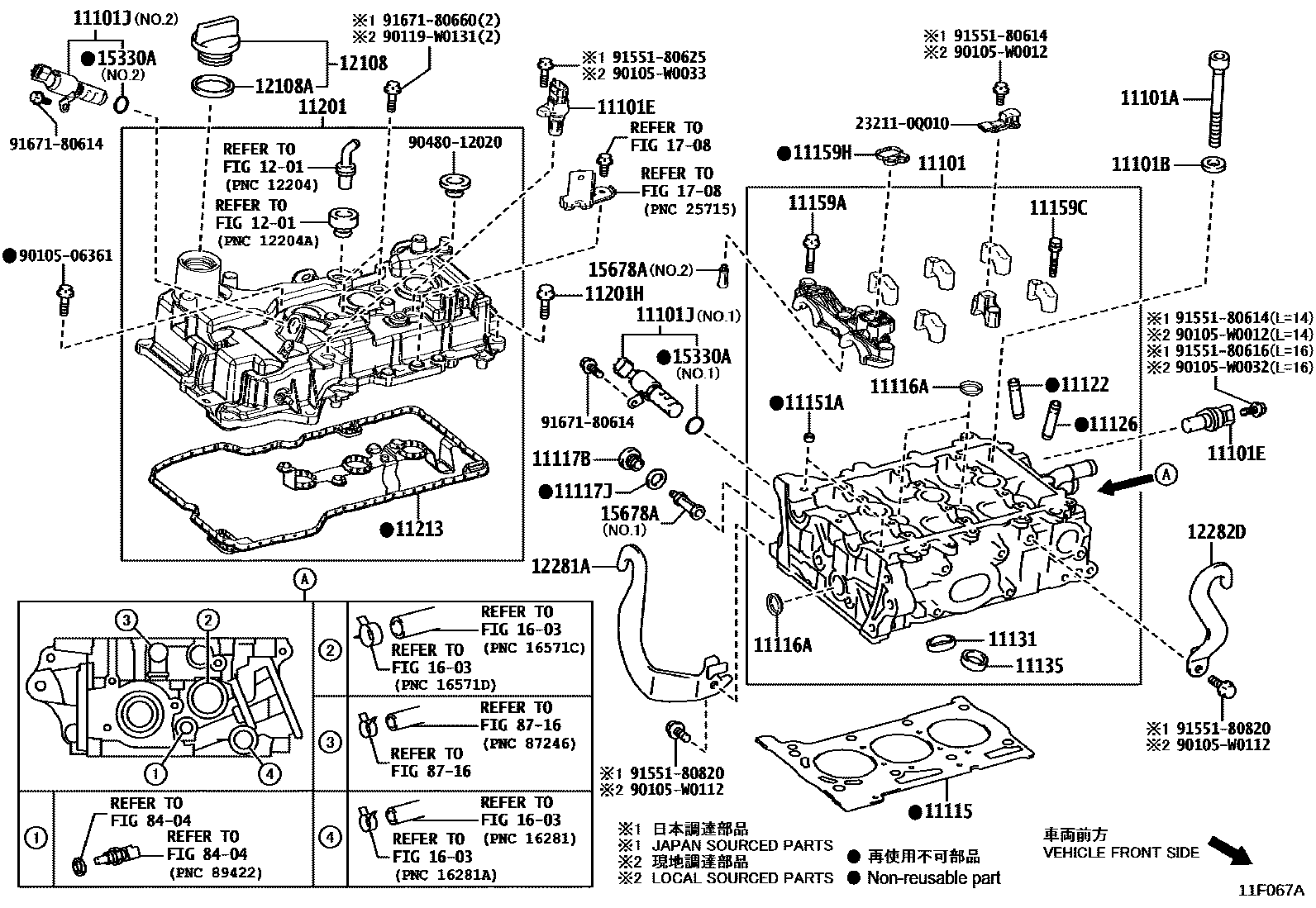

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-0Q040i202007-202205
main11101-19545i202401-202412
*119
main11101-19546i202412
*119
main11101-F9070i202007-202205
main11101-F9080i202007-202205
*648
main11101-F9081i202412
*648
11101ABOLT(FOR CYLINDER HEAD SET)
main90910-02186×8i202007
main90910-02202×4i202401
*119,NO.1:REFER ILL.
main90910-02205×4i202007
*648,NO.2:REFER ILL.
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
main90201-10136×8i202007-202205
main90201-12079×4i202007-202205
*119
11101ESENSOR, CAM POSITION
main90919-W5003×2i202007-202205
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
main15330-0Q021i202007
NO.1
main15330-0Q030i202007
NO.2
11115GASKET, CYLINDER HEAD
main11115-15100i202007-202401
*648
main11115-40090i202007
11116APLUG, TIGHT, NO.1
main96411-62500×3i202007-202205
11117BPLUG, W/HEAD TAPER SCREW, NO.2
main90341-14013i202007-202205
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
main90430-14009i202007
11122BUSH, INTAKE VALVE GUIDE
main11122-21010×6i202007
STD
main11122-31090×6i202007
STD
main11123-21010×6i202007
O/S 0.05
main11123-31090×6i202007
O/S 0.05,*648,*119
11126BUSH, EXHAUST VALVE GUIDE
main11122-21010×6i202007
STD
main11122-31041×6i202007
STD,*119
main11122-47010×6i202007
STD,*648
main11123-21010×6i202007
O/S 0.05
main11123-31041×6i202007-202401
O/S 0.05,*119
main11123-47010×6i202401
O/S 0.05,*648
11131SEAT, INTAKE VALVE
main11131-0Q030×6i202007-202205
STD
main11132-0Q030×6i202007-202205
O/S 0.03
11135SEAT, EXHAUST VALVE
main11135-0Q030×6i202007
STD
main11135-24020×6i202007-202205
STD,*119
main11135-F2020×6i202007-202401
STD,*648
main11136-0Q030×6i202007
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
main90253-11005×2i202007
L=11,OD=9
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main90105-W0133×3i202007-202205
(L)
main91551-80840×3i202007-202205
(J)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main90109-06080×12i202007-202205
(J)
main90119-W0221×12i202007-202205
(L)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
main11159-31040i202401
*119
main11159-47020i202007-202205
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-15040i202007-202401
*119
main11201-F3010i202007-202205
main11201-F3020i202401
*648
main11210-0Q040i202007-202206
main11210-0Q041i202207
11201HBOLT(FOR CYLINDER HEAD COVER)
main90105-06359×2i202007-202401
(J),NO.1:REFER ILL.
main90105-W0303×2i202007
(L),*648,NO.1:REF.
main90109-06384×11i202007
(J)
main90109-W0019×11i202007-202205
(L),*648,NO.2:REF.
11213GASKET, CYLINDER HEAD COVER
main11213-0Q030i202007-202206
main11213-0Q031i202207
main11213-15100i202007-202205
*119
main11213-F3010i202007-202401
*648
1201
12108CAP SUB-ASSY, OIL FILLER
main12180-38010i202007-202205
12108AGASKET(FOR OIL FILLER CAP)
main90430-35001i202007-202401
*648
12281AHANGER, ENGINE, NO.1
main12281-40032i202007
12282DHANGER, ENGINE, NO.2
main12282-25010i202007
*648
main12282-40010i202007
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
main90068-14040i202007
NO.1
main90099-14137i202007-202205
NO.2
15678AFILTER, OIL CONTROL VALVE
main15678-21010i202007-202205
NO.1
main15678-31020i202007-202205
NO.2
main15678-46020i202007-202401
1603
1708
8404
8716
232110Q010BRACKET, WIRE
main23211-0Q010
9010506361
main90105-06361
90105W0012
main90105-W0012
90105W0032
main90105-W0032
90105W0033
main90105-W0033
90105W0112
main90105-W0112
90119W0131
main90119-W0131
9048012020
main90480-12020
9155180614
main91551-80614
9155180616
main91551-80616
9155180625
main91551-80625
9155180820
main91551-80820
9167180614
main91671-80614
9167180660
main91671-80660

45 parts on this diagram · 5 diagrams in section
