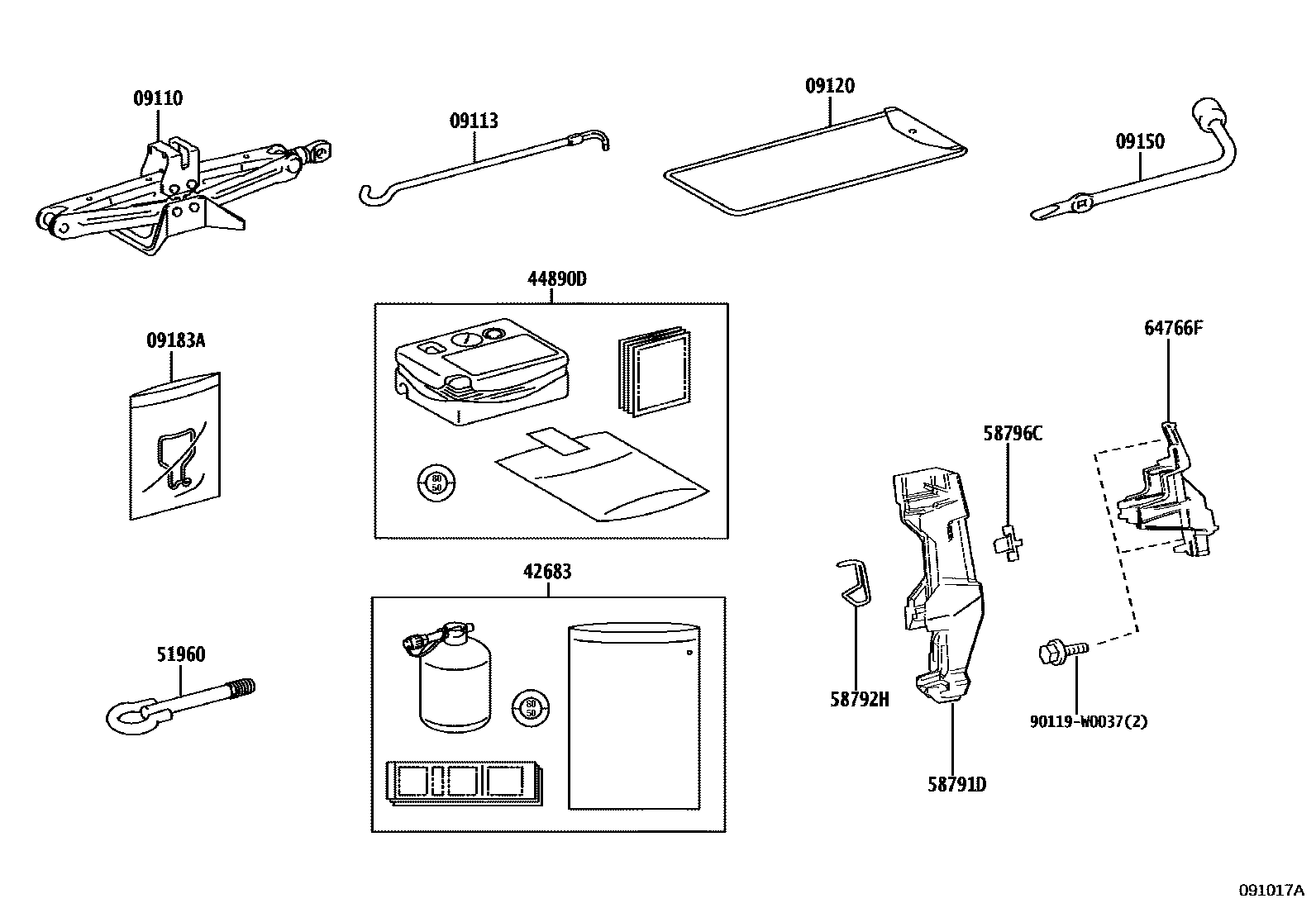

STANDARD TOOL

09110JACK ASSY

main09111-F4010

main09111-F4011

09113HANDLE, JACK

main09113-F4010

09120BAG, TOOL

main09120-37030

09150WRENCH, HUB NUT BOX

main09150-F4010

09183AREPLACER, WHEEL CAP

main09183-0D010iMXPH11..R..FRP202401

TIRE & DISC WHEEL-185/65R15, 6J, STEEL, ROUGH ROAD SPEC

main09183-0D010iKSP211,MXPH11..RHD..R202007-202106

TIRE & DISC WHEEL-185/65R15, 6J, ALUMINUM

main09183-0D010iKSP211,MXPH11..R202007

LW PACKAGE&TIRE & DISC WHEEL-185/65R15, 6J, STEEL

main09183-0D010iMXPH11..R..FRP202401

LW PACKAGE

main09183-0D010iMXPH11..R..FRP202401

TIRE & DISC WHEEL-185/65R15, 6J, STEEL

42683SEAL, TIRE REPAIR

main42606-0D020iMXPA11..6F..N;MXPA11..LHD..CVT..N202404-202407

main42606-F4040iKSP211,MXPA11,MXPH11202007-202012

sub42606-F4041

main42606-F4041iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202101-202404

44890DCOMPRESSOR ASSY, AIR

main42680-F4011iKSP211,MXPA11,MXPH11202007-202101

sub42680-F4012

main42680-F4012iKSP211..G202101-202110

sub42680-F4013

main42680-F4013iMXPH11..RHD..R;KSP211,MXPA11..RHD..(G,R)202110-202407

51960HOOK ASSY, FRONT

main51960-F4010iKSP211..G202007-202407

58791DCARRIER, JACK

58792HSUPPORT, JACK CARRIER

58796CHOOK, JACK CLAMP

64766FBEZEL, JACK COVER, LOWER

90119W0037

main90119-W0037

13 parts on this diagram · 1 diagram in section
