HEATING & AIR CONDITIONING - COOLER PIPING

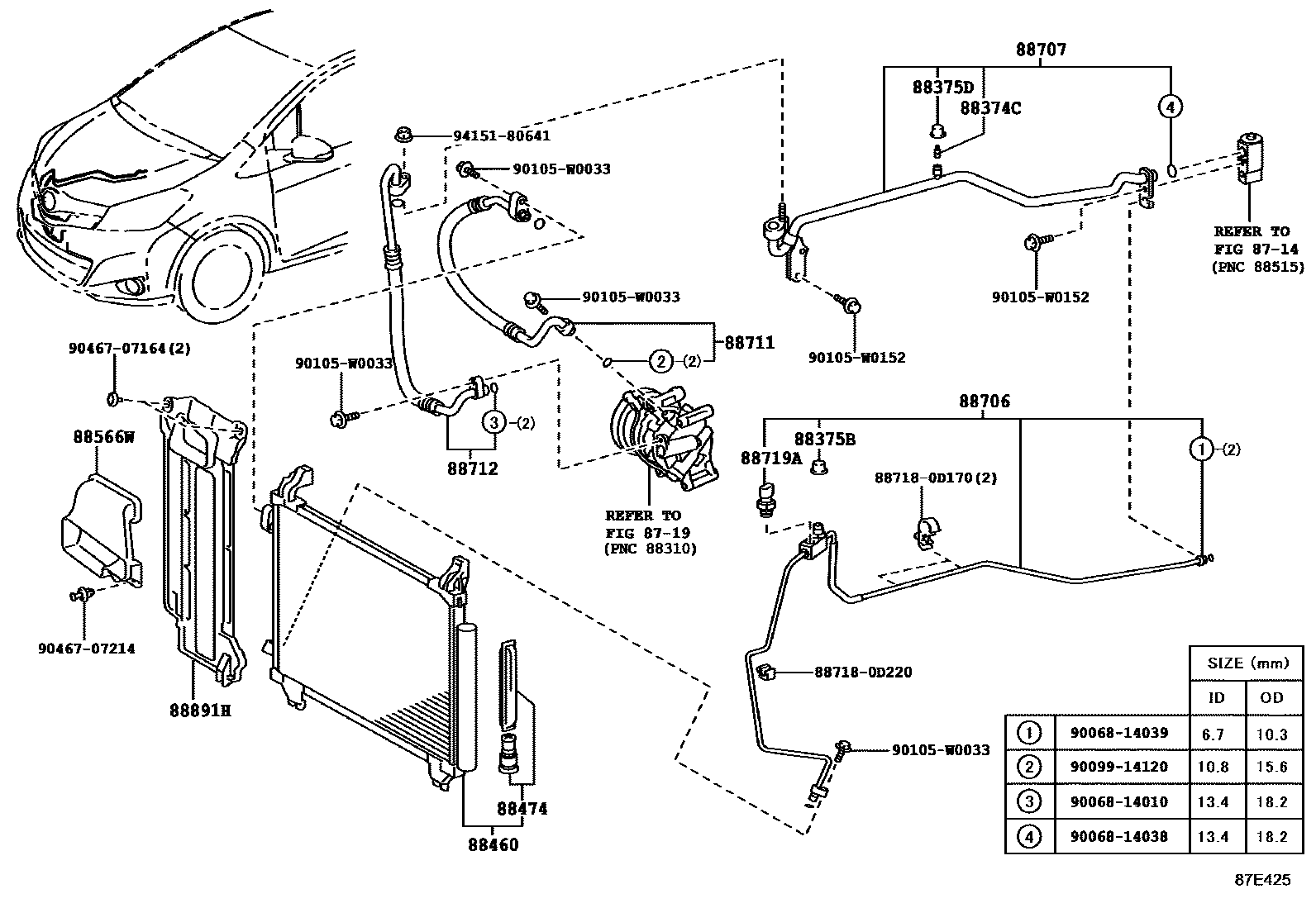

Parts diagram
8714
8719
88374CVALVE, SERVICE, NO.2
main88374-30010supersedes 88374-30010i201407-201607
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&FRONT AIR CONDITIONER-DEALER OPTION
88375BCAP, SERVICE VALVE, NO.1
main88375-30280i201407-201607
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&FRONT AIR CONDITIONER-DEALER OPTION
main88375-30320supersedes 88375-30320i201607-201703
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&FRONT AIR CONDITIONER-DEALER OPTION
88375DCAP, SERVICE VALVE, NO.2
main88375-30290i201805-201812
FRONT AIR CONDITIONER-HEATER ONLY
main88375-30310supersedes 88375-30310i201806-202006
88460CONDENSER ASSY, COOLER
main88460-0D200supersedes 88460-0D400i201407-201505
FRONT AIR CONDITIONER-HEATER ONLY
main88460-0D210supersedes 88460-0D520i201407-201607
FRONT AIR CONDITIONER-HEATER ONLY
main88460-0D220i201407-201505
main88460-0D420i201703-202006
main88460-0D520i201607-201703
main88460-0D500supersedes 88460-0D550i201703-202006
COLD AREA SPEC & W(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION
88474DRYER, COOLER
main88474-12010supersedes 88474-17010i201703-202006
FRONT AIR CONDITIONER-DEALER OPTION
main88474-12020i201505-201703
main88474-17010supersedes 88474-12010i201407-201505
FRONT AIR CONDITIONER-HEATER ONLY
main88474-17030supersedes 88474-17010i201805-201812
main88474-47020i201407-201505
88566WDUCT, COOLER AIR, NO.2
main88566-0D050i201703-202006
main88566-0D060i201407-201511
88706PIPE SUB-ASSY, LIQUID
main88706-0D400i201407-201505
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&FRONT AIR CONDITIONER-DEALER OPTION
main88706-0D470i201407-201505
main88706-0D640i201505-201607
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&FRONT AIR CONDITIONER-DEALER OPTION
main88706-0D660i201505-201607
main88706-0D450supersedes 88706-0DD20i201703-201805
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&COLDAREA SPEC & W/O(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION
main88706-0D460i201703-201805
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&COLDAREA SPEC & W(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION
main88706-0DB40i201703-201805
COLD AREA SPEC & W(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION
main88706-0DD00i201703-201810
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)
main88706-0DD10i201703-202006
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)
main88706-0DD30i201703-201810
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)
88707PIPE SUB-ASSY, SUCTION
main88707-0D230i201407-201607
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&FRONT AIR CONDITIONER-DEALER OPTION
main88707-0D240i201407-201607
FRONT AIR CONDITIONER-DEALER OPTION
main88707-0D290i201407-201607
main88707-0D620i201805-201812
FRONT AIR CONDITIONER-DEALER OPTION
main88707-0D440i201806-202006
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)
main88707-0D570i201703-202006
FRONT AIR CONDITIONER-DEALER OPTION
main88707-0D580i201703-201805
FRONT AIR CONDITIONER-DEALER OPTION
main88707-0D610i201703-201810
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)
main88707-0D630i201703-201806
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
main88711-0D320i201407-201505
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY
main88711-0D330i201407-201505
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&FRONT AIR CONDITIONER-DEALER OPTION
main88711-0D370i201407-201505
main88711-0D520supersedes 88711-0D520i201505-201703
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY
main88711-0D530i201505-201703
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&FRONT AIR CONDITIONER-DEALER OPTION
main88711-0D550i201703-202006
main88711-0D730i201703-202006
FRONT AIR CONDITIONER-HEATER ONLY
88712HOSE, COOLER REFRIGERANT SUCTION, NO.1
main88712-0D410i201407-201607
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&FRONT AIR CONDITIONER-DEALER OPTION
main88712-0D420i201407-201607
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&FRONT AIR CONDITIONER-DEALER OPTION
main88712-0D430i201407-201607
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY
88719ASENSOR, AIR CONDITIONER PRESSURE
main88719-33020i201407-201703
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY
88891HCOVER, COOLER, NO.1
main88891-0D190i201703-202006
main88891-0D450i201703-202006
887180D170PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-0D170
887180D220PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-0D220
9006814010
main90068-14010
9006814038
main90068-14038
9006814039
main90068-14039
9009914120
main90099-14120
90105W0033
main90105-W0033
90105W0152
main90105-W0152
9046707164
main90467-07164
9046707214
main90467-07214
9415180641
main94151-80641

25 parts on this diagram · 22 diagrams in section
