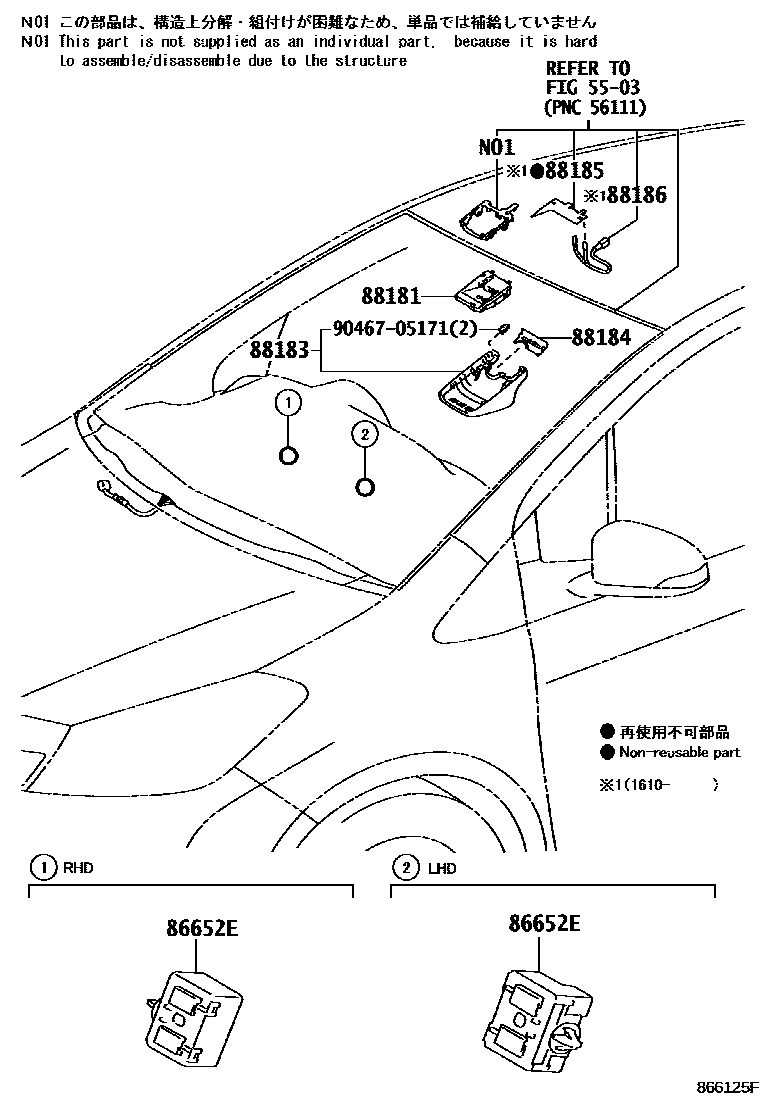

PRE-COLLISION SYSTEM

0001 1 0002 1

5503

86652EBUZZER, PRE-COLLISION CITY

main86652-50010iKSP130,NLP130,NSP130..3D..(G,S)201505-201610

PRE-COLLISION SYSTEM-WITH

88181SENSOR, PRE-COLLISION CITY

main88181-0D010iKSP130,NLP130,NSP130..3D..(G,S)201505-201606

PRE-COLLISION SYSTEM-WITH

main88181-0D020iNLP130..RHD;KSP130,NHP130,NSP131..5D201703-202006

PRE-COLLISION SYSTEM-WITHOUT

sub88181-52170

main88181-0D030iKSP130,NHP130,NLP130,NSP130201607-201610

PRE-COLLISION SYSTEM-WITH

sub88181-52190

main88181-0D040iKSP130,NHP130,NLP130,NSP130201610-201703

PRE-COLLISION SYSTEM-WITH

88183COVER, PRE-COLLISION CITY

main88183-52020iKSP130,NLP130,NSP130..3D..(G,S)201505-201610

PRE-COLLISION SYSTEM-WITH

main88183-52060iKSP130,NHP130,NLP130,NSP130201610-201703

PRE-COLLISION SYSTEM-WITH

main88183-52060iNLP130..LHD201703-202006

PRE-COLLISION SYSTEM-WITHOUT

88184COVER, PRE-COLLISION CITY, 2ND

main88184-52020iKSP130,NLP130,NSP130..3D..(G,S)201505-201610

PRE-COLLISION SYSTEM-WITH

main88184-52060iKSP130,NHP130,NLP130,NSP130201610-201703

PRE-COLLISION SYSTEM-WITH

main88184-52060iNLP130..LHD201703-202006

PRE-COLLISION SYSTEM-WITHOUT

88185HEATER, PRE-COLLISION CITY

main88185-0D010iKSP130,NHP130,NLP130,NSP130201610-201703

PRE-COLLISION SYSTEM-WITH

main88185-0D010iNLP130..LHD201703-202006

PRE-COLLISION SYSTEM-WITHOUT

88186WIRE, PRE-COLLISION CITY HEATER

main88186-0D010iKSP130,NHP130,NLP130,NSP130201610-201703

PRE-COLLISION SYSTEM-WITH

main88186-0D010iNLP130..LHD201703-202006

PRE-COLLISION SYSTEM-WITHOUT

9046705171

main90467-05171

8 parts on this diagram · 2 diagrams in section
