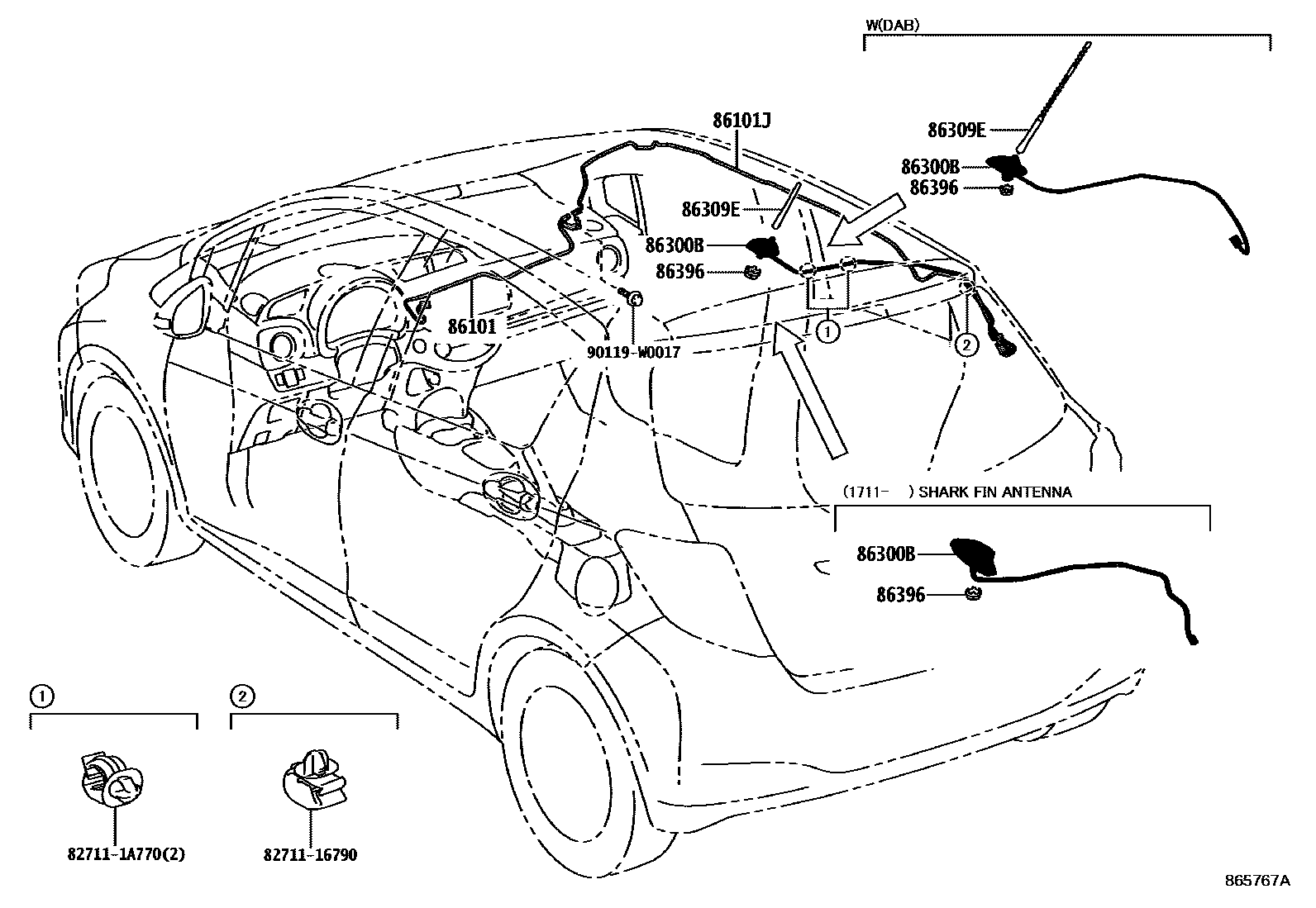

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-0D410iNHP130..LHD;KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S)201407-202006

main86101-0D420iKSP130,NLP130,NSP130..RHD..3D..(G,S)201407-202006

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0D400iKSP130,NHP130,NLP130,NSP131201407-202006

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0D220iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-0D110iKSP130,NHP130,NLP130,NSP130201407-202006

86396NUT, ANTENNA

main86396-47010iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

90119W0017

main90119-W0017

8 parts on this diagram · 1 diagram in section
