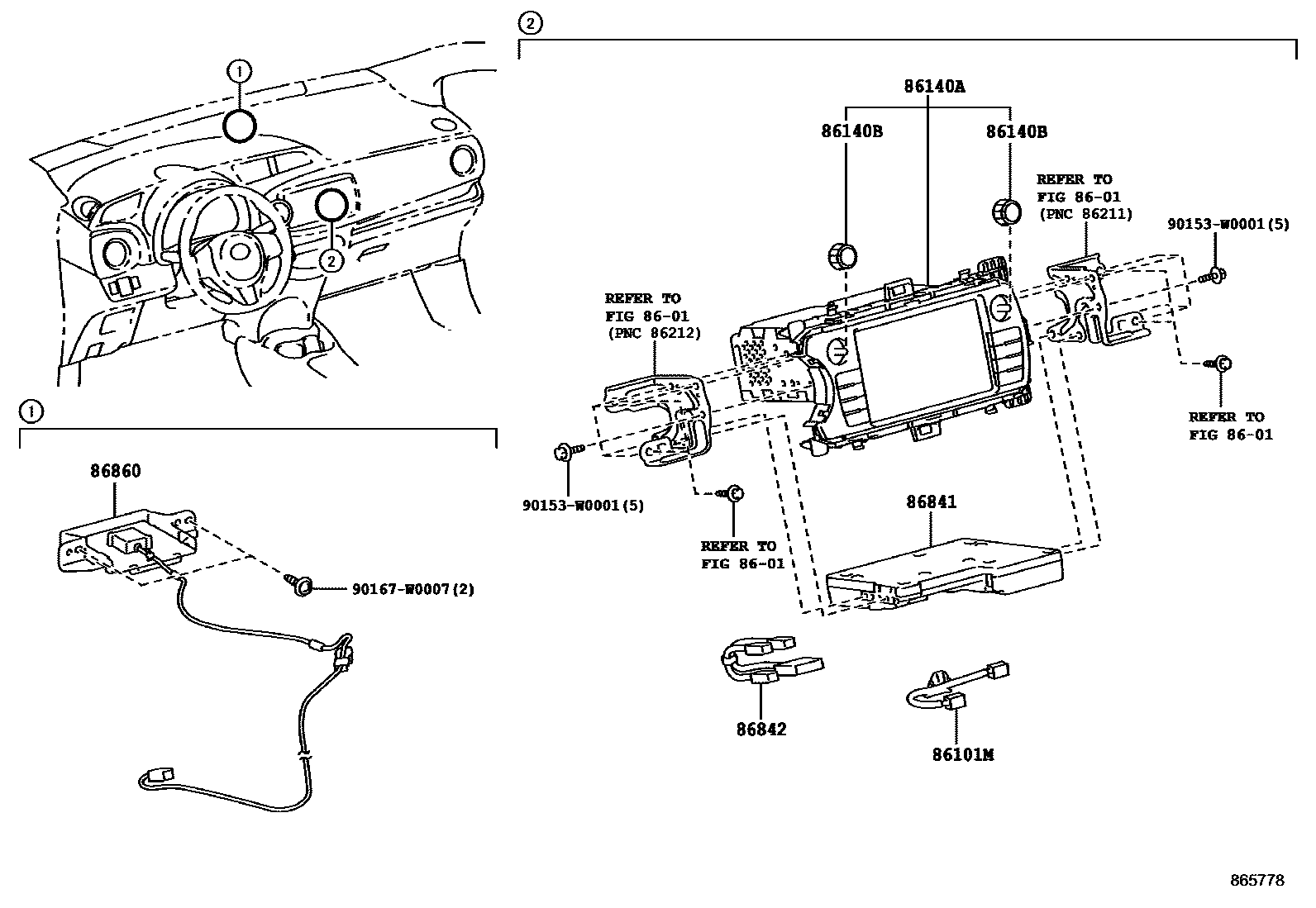

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1

8601

86101MCORD SUB-ASSY, ANTENNA

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-0D100iKSP130,NLP130,NSP130..LHD..N;KSP130,NLP130,NSP130..LHD..5D..(G,S)201407-201703

FUJITSU TEN

main86140-0D100iKSP130,NLP130,NSP130..LHD..N;KSP130,NLP130,NSP130..LHD..5D..(G,S)201407-201703

FUJITSU TEN,AUDIO-*DA & *BT & 6SPEAKER

main86140-0D160iKSP130,NLP130,NSP130..RHD..N;KSP130,NLP130,NSP130..RHD..5D..(G,S)201407-201703

FUJITSU TEN,AUDIO-*DA & *BT & 6SPEAKER

main86140-0D160iKSP130,NLP130,NSP130..RHD..R201407-201703

FUJITSU TEN

main86140-0D220iNHP130..LHD201407-201703

FUJITSU TEN

main86140-0D260iNHP130..RHD201407-201703

FUJITSU TEN

main86140-0D320iKSP130,NHP130,NSP131..LHD..5D..(G,N)201703-201901

FUJITSU TEN,AUDIO-TAS500 (ILA)&ANTENNA-SHARK FIN TYPE

sub86140-0D321

main86140-0D320iKSP130,NLP130,NSP131..LHD..R201703-201901

FUJITSU TEN

sub86140-0D321

main86140-0D320iKSP130,NLP130,NSP131..LHD..R201703-201901

FUJITSU TEN,AUDIO-*DA & *BT & 6SPEAKER

sub86140-0D321

main86140-0D320iKSP130,NLP130,NSP131..LHD..R201703-201901

FUJITSU TEN,AUDIO-TAS500 (ILA)

sub86140-0D321

main86140-0D321iKSP130,NHP130,NSP131..LHD..5D..(G,N)201902-202006

DENSO TEN

main86140-0D321iKSP130,NHP130,NSP131..LHD..5D..(G,N)201902-202006

DENSO TEN,AUDIO-*DA & *BT & 6SPEAKER

main86140-0D321iKSP130,NHP130,NSP131..LHD..5D..(G,N)201902-202006

DENSO TEN,AUDIO-TAS500 (ILA)

main86140-0D321iKSP130,NHP130,NSP131..LHD..5D..(G,N)201902-202006

DENSO TEN,AUDIO-TAS500 (ILA)&ANTENNA-SHARK FIN TYPE

main86140-0D390iKSP130,NHP130,NSP131..RHD..5D..(G,N)201703-202006

FUJITSU TEN,AUDIO-TAS500 (ILA)&ANTENNA-SHARK FIN TYPE

main86140-0D390iKSP130,NHP130,NLP130,NSP131..RHD..(G,N,S)201703-202006

FUJITSU TEN

main86140-0D390iKSP130,NHP130,NLP130,NSP131..RHD..(G,N,S)201703-202006

FUJITSU TEN,AUDIO-*DA & *BT & 6SPEAKER

main86140-0D390iKSP130,NHP130,NLP130,NSP131..RHD..(G,N,S)201703-202006

FUJITSU TEN,AUDIO-TAS500 (ILA)

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90011-25242iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

main90011-25242iNHP130;KSP130,NLP130,NSP130..N;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

AUDIO-*DA & *BT & 6SPEAKER

main90011-25242iNHP130;KSP130,NLP130,NSP130..N;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

AUDIO-*DA & *BT & 6SPEAKER&ANTENNA-WITH(DAB)

main90011-25299iKSP130,NHP130,NLP130,NSP131..G,N,S201703-202006

AUDIO-*DA & *BT & 6SPEAKER

main90011-25299iKSP130,NHP130,NLP130,NSP131..G,N,S201703-202006

AUDIO-*DA & *BT & 6SPEAKER&ANTENNA-WITH(DAB)

main90011-25299iKSP130,NHP130,NLP130,NSP131..G,N,S201703-202006

AUDIO-TAS500 (ILA)

main90011-25299iKSP130,NHP130,NLP130,NSP131..G,N,S201703-202006

AUDIO-TAS500 (ILA)&ANTENNA-SHARK FIN TYPE

86841COMPUTER, NAVIGATION

main86840-0W012

main86840-0W013

main86840-02013

main86840-02014

main86840-0F020

main86840-0F040

86842WIRE, NAVIGATION, NO.1

main86842-12010

86860ANTENNA ASSY, NAVIGATION

main86860-0D020

90153W0001

main90153-W0001¥110

90167W0007

main90167-W0007¥110

9 parts on this diagram · 4 diagrams in section
