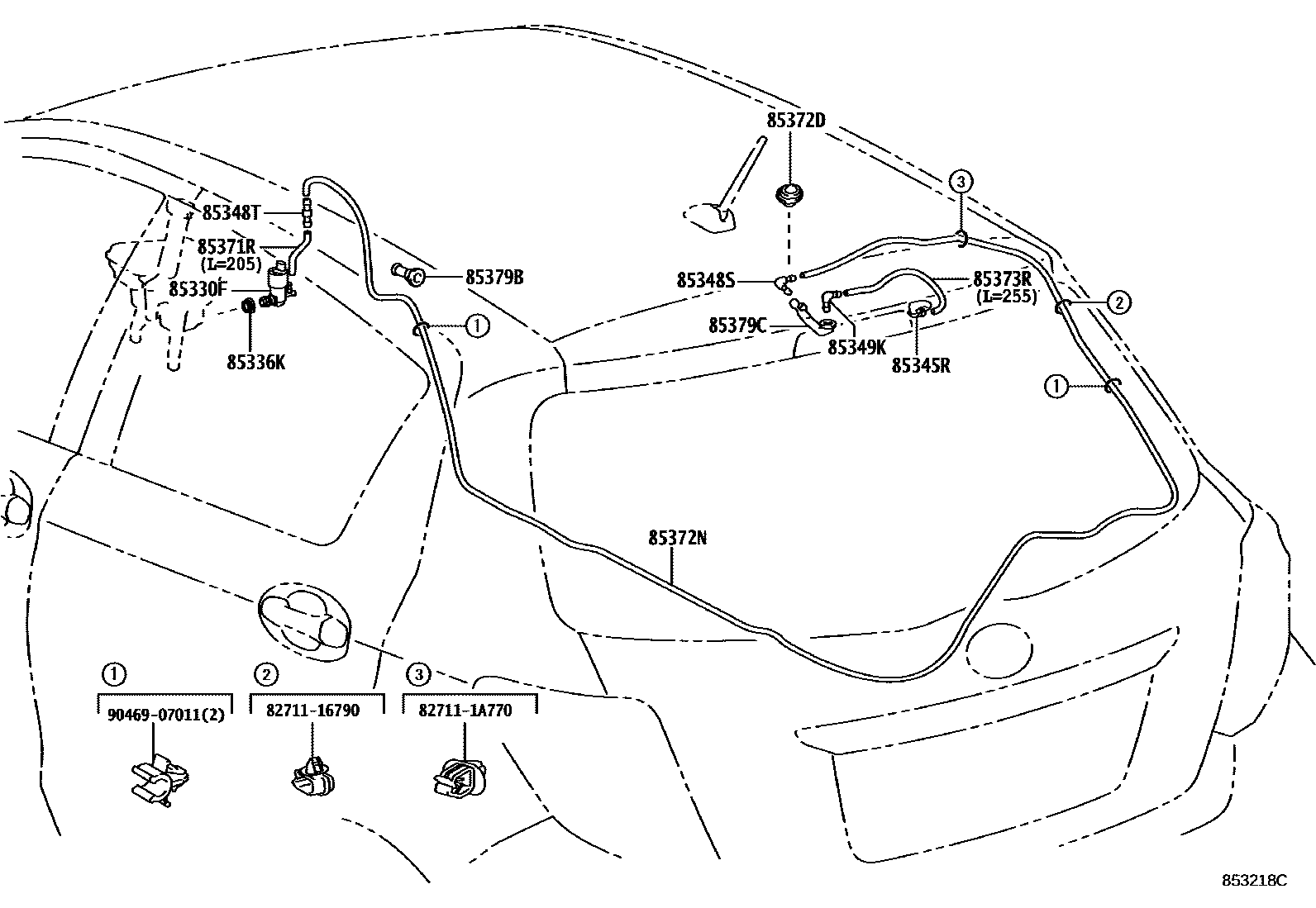

REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-0F020iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

main85330-0F021iKSP130,NHP130,NLP130,NSP130201702-201703

85336KPROTECTOR, WASHER JAR

main85336-0D170iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

85345RNOZZLE, REAR WASHER

main85391-0D050iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

85348SJOINT, REAR WASHER ELBOW, NO.1

main85376-0D260iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-0D260iKSP130,NHP130,NLP130,NSP130201407-201703

85349KJOINT, REAR WASHER ELBOW, NO.2

main85376-0D260iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90069-46058iKSP130,NHP130,NLP130,NSP130201407-201703

*318:REFER ILLUST.

85372DGROMMET, REAR WASHER HOSE

main85373-0D060iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90069-46059iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

L=4548

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90069-46058iKSP130,NHP130,NLP130,NSP130201407-201703

*318:REFER ILLUST.

85379BGROMMET, WASHER, A

main85379-0D260iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

85379CGROMMET, REAR WASHER HOSE NO.1

main85373-0D050iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9046907011

main90469-07011

15 parts on this diagram · 1 diagram in section
