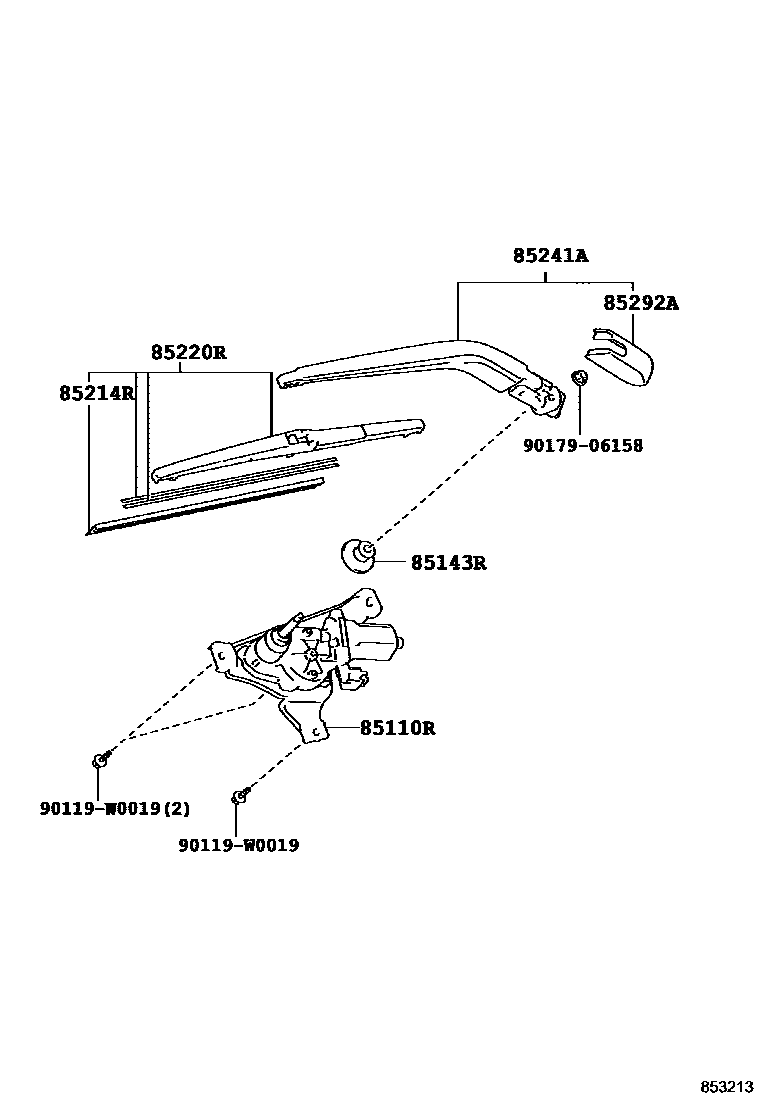

REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85130-0D080iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

main85130-0D190iNHP130..N201703-202006

SIMPLE PACKAGE

85143RGROMMET, REAR WIPER MOTOR

main85143-02030iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

main85143-05070iNHP130..N201703-202006

SIMPLE PACKAGE

85214RRUBBER, REAR WIPER

main85214-0D440iNHP130..N201703-202006

SIMPLE PACKAGE

main85214-42040iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

85220RBLADE ASSY, REAR WIPER

main85242-0D130iNHP130..N201703-202006

SIMPLE PACKAGE

main85242-0R010iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

85241AARM, REAR WIPER

main85241-0D060iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

main85241-0D150iNHP130..N201703-202006

SIMPLE PACKAGE

85292ACAP, REAR WIPER ARM HEAD

main85292-0D080iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

90119W0019

main90119-W0019

9017906158

main90179-06158

8 parts on this diagram · 2 diagrams in section
