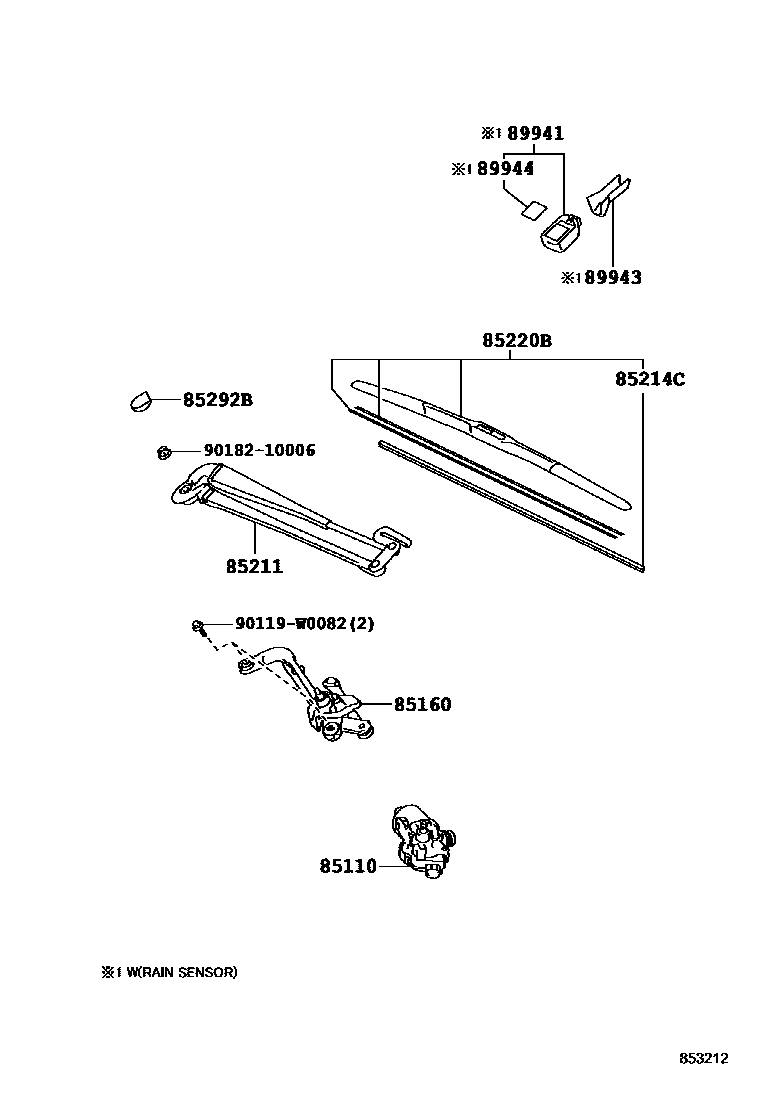

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0D190iKSP130,NHP130,NLP130,NSP130..LHD201407-201505

sub85110-0D191

main85110-0D191iKSP130,NHP130,NLP130,NSP131..LHD201505-202006

main85110-0D200iKSP130,NHP130,NLP130,NSP130..RHD201407-201505

main85110-0D201iNHP130..RHD;KSP130,NLP130,NSP130..RHD..(N,R);KSP130,NLP130,NSP130..RHD..5D..(G,S)201505-202006

85160LINK ASSY, WINDSHIELD WIPER

main85150-0D180iKSP130,NLP130,NSP130..LHD..3D..(G,S)201407-202006

main85150-0D190iNHP130..RHD;KSP130,NLP130,NSP130..RHD..(N,R);KSP130,NLP130,NSP130..RHD..5D..(G,S)201407-202006

85211ARM, FRONT WIPER

main85211-0D240iKSP130,NLP130,NSP130..RHD..3D..(G,S)201407-202006

main85221-0D250iNHP130..LHD;KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S)201407-202006

85214CRUBBER, WIPER BLADE, CENTER

main85214-0D310iKSP130,NHP130,NLP130,NSP131201407-202006

85220BBLADE, FRONT WIPER

main85212-0D102iKSP130,NLP130,NSP130..RHD..3D..(G,S)201407-202006

main85222-0D122iKSP130,NHP130,NLP130,NSP131..LHD201407-202006

85292BCAP, FRONT WIPER ARM HEAD

main85292-52060iKSP130,NHP130,NLP130,NSP131..RHD201407-202006

main85292-52070iKSP130,NHP130,NLP130,NSP131..LHD201407-202006

89941SENSOR, RAIN

main89941-0D010iNLP130..LHD201703-202006

PRE-COLLISION SYSTEM-WITHOUT

89943COVER, RAIN SENSOR

main89943-02010iNLP130..LHD201703-202006

PRE-COLLISION SYSTEM-WITHOUT

89944TAPE, RAIN SENSOR

main89944-02010iNLP130..LHD201703-202006

PRE-COLLISION SYSTEM-WITHOUT

90119W0082

main90119-W0082

9018210006

main90182-10006

11 parts on this diagram · 1 diagram in section
