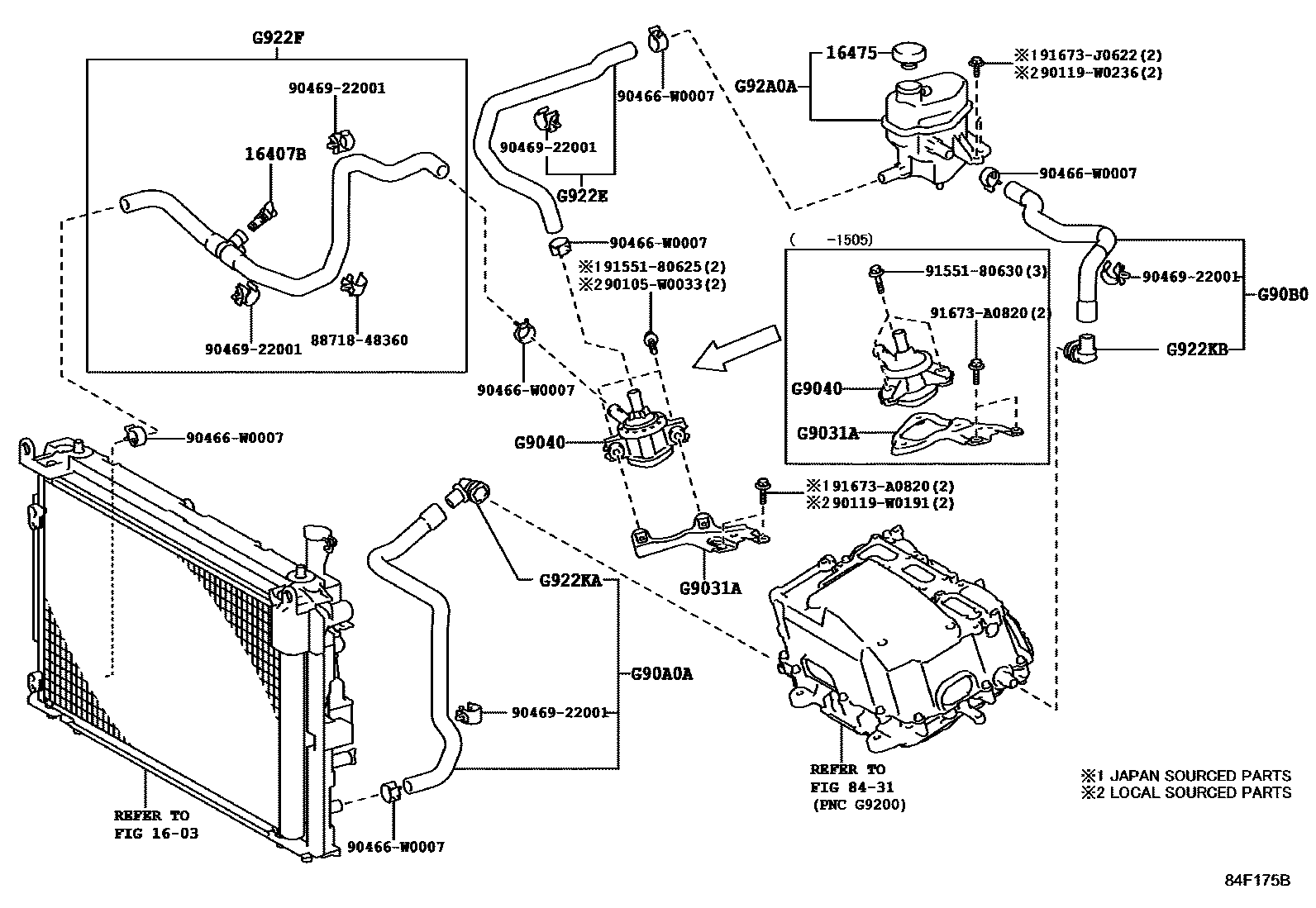

INVERTER COOLING

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010i1NZFXE..NHP130201407-202006

16475CAP, RESERVE TANK

main16475-28140i1NZFXE..NHP130201610-202006

main16475-51010i1NZFXE..NHP130201407-201409

sub16475-28140

main16475-51011i1NZFXE..NHP130201410-201609

sub16475-28140

8431

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914152011iNHP130201407-201505

mainG914152020iNHP130201505-202006

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904052010iNHP130201407-201505

mainG904052020iNHP130201505-202006

G90A0AHOSE ASSY, INVERTER COOLING, NO.1

mainG90A052010iNHP130201407-202006

G90B0HOSE ASSY, INVERTER COOLING, NO.2

mainG90B052010iNHP130201407-202006

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E52010iNHP130201407-202006

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F52020iNHP130201407-202006

G922KACONNECTOR, HYBRID WATER HOSE, NO.1

mainG922K33030iNHP130201407-202006

G922KBCONNECTOR, HYBRID WATER HOSE, NO.2

mainG922K52010iNHP130201407-202006

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H015010iNHP130201703-202006

mainG92A052010iNHP130201407-201409

subG92A0-52011

mainG92A052011iNHP130201410-201703

8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48360

90105W0033

main90105-W0033

90119W0191

main90119-W0191

90119W0236

main90119-W0236

90466W0007

main90466-W0007

9046922001

main90469-22001

9155180625

main91551-80625

9155180630

main91551-80630

91673A0820

main91673-A0820

91673J0622

main91673-J0622

23 parts on this diagram · 1 diagram in section
