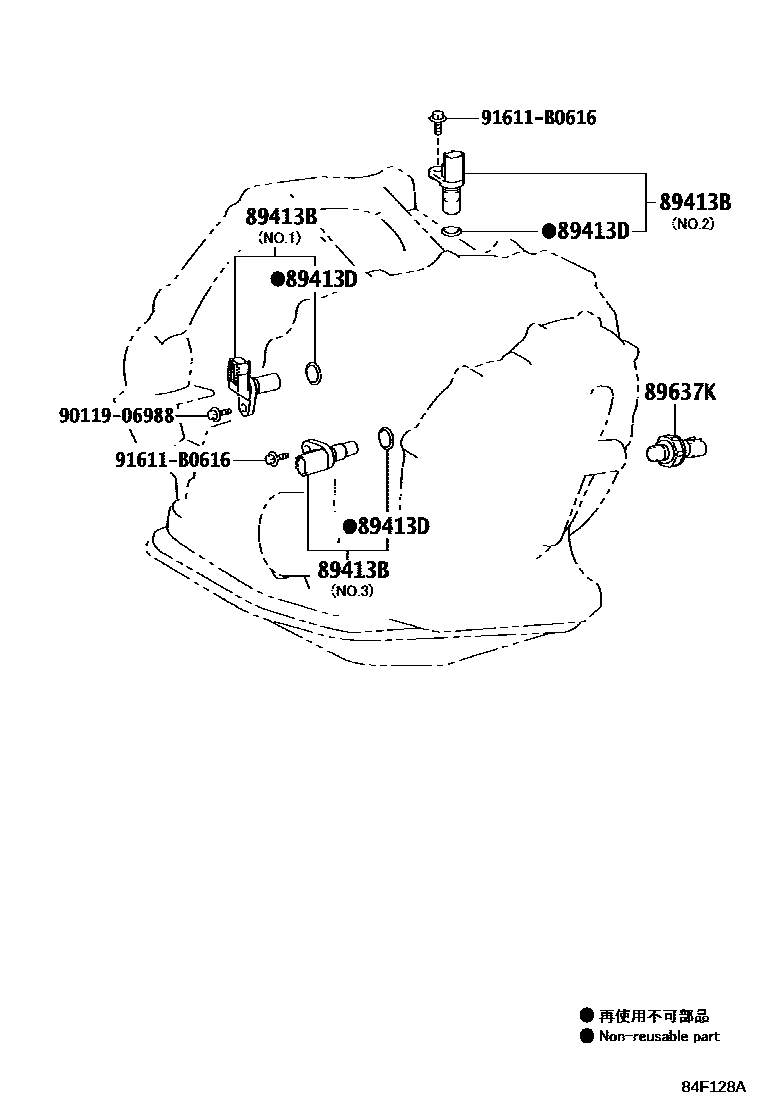

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1K411 0002 1K312

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-12020iNSP130..CVT201407-201703

NO.1

main89413-28010iNSP130..CVT201407-201703

NO.2

sub89413-28011

main89413-60020iNSP130..CVT201407-201703

NO.3

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×3iNSP130..3D..CVT..(G,S)201407-201511

89637KSENSOR, OIL PRESSURE

main89637-63010iNSP130..CVT201407-201703

9011906988

main90119-06988

91611B0616

main91611-B0616

5 parts on this diagram · 2 diagrams in section
