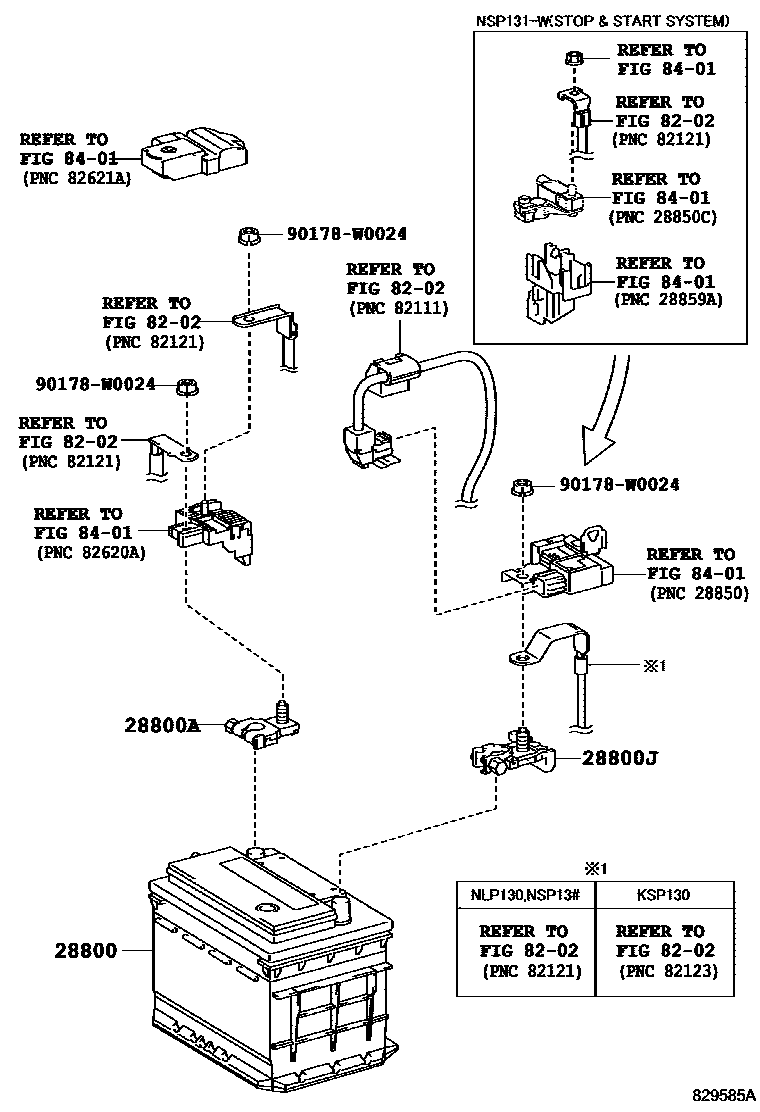

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-0D350i1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S)201407-201703

LN2

main28800-0D351i1NDTV..NLP130201802-201809

LN2

main28800-0Q060i1KRFE,1NRFE..KSP130,NSP130..3D..(G,S)201407-201511

LN1

main28800-0Q061i1KRFE,2NRFKE..KSP130,NSP131201802-201809

LN1

main28800-0Q062i1KRFE,2NRFKE..KSP130,NSP131201810-202006

LN1

main28800-21181i1NZFXE..NHP130201407-201703

S34B20R

sub28800-21182

main28800-0N060supersedes 28800-0D352i1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S)201407-201703

LN3,COLD AREA SPEC&WITH(REAR HEATER DUCT)

main28800-0N061i1NDTV..NLP130..LHD201802-201805

LN3,GERMANY SPEC&COLD AREA SPEC & W/O(REAR HEATER DUCT)

main28800-0N062i2NRFKE..NSP131..LHD201810-202006

LN3,GERMANY SPEC

main28800-0T060i1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G201407-201703

LN2,GERMANY SPEC

main28800-0T061i1KRFE..KSP130..LHD201802-201809

LN2,GERMANY SPEC

main28800-0T062i1KRFE..KSP130..LHD201810-202006

LN2,GERMANY SPEC

main28800-0Y060i1KRFE..KSP130..RHD201407-201505

LN2,WITH(STOP & START SYSTEM)

main28800-0Y080i1NDTV..NLP130..LHD..3D..(G,S)201505-201511

LN3,WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT)

main28800-F2060i1KRFE..KSP130..LHD201901-202006

LN2,WITH(STOP & START SYSTEM)

main28800-F2080i2NRFKE..NSP131..LHD..CVT201901-202006

LN3,WITH(STOP & START SYSTEM)

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130..3D..(G,S)201407-201511

28800JTERMINAL, BATTERY NEGATIVE

main82675-52090i1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130..3D..(G,S)201407-201511

8202

8401

90178W0024

main90178-W0024

6 parts on this diagram · 5 diagrams in section
