BACK UP LAMP

8116

81670BBULB(FOR BACK-UP LAMP)

main90981-13043iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

12V 21W

81671CLENS & BODY, BACK-UP LAMP, RH

main81581-0D220iKSP130,NLP130,NSP130..LHD..3D..(G,S)201407-201511

HEADLAMP AIMING-RH TRAFFIC SPEC

81675APLUG, SOCKET(FOR BACK-UP LAMP)

main90075-99080iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

81681ALENS & BODY, BACK-UP LAMP, LH

main81591-0D200iKSP130,NLP130,NSP130..LHD..3D..(G,S)201407-201511

HEADLAMP AIMING-LH TRAFFIC SPEC

9007515509

main90075-15509

9015950311

main90159-50311

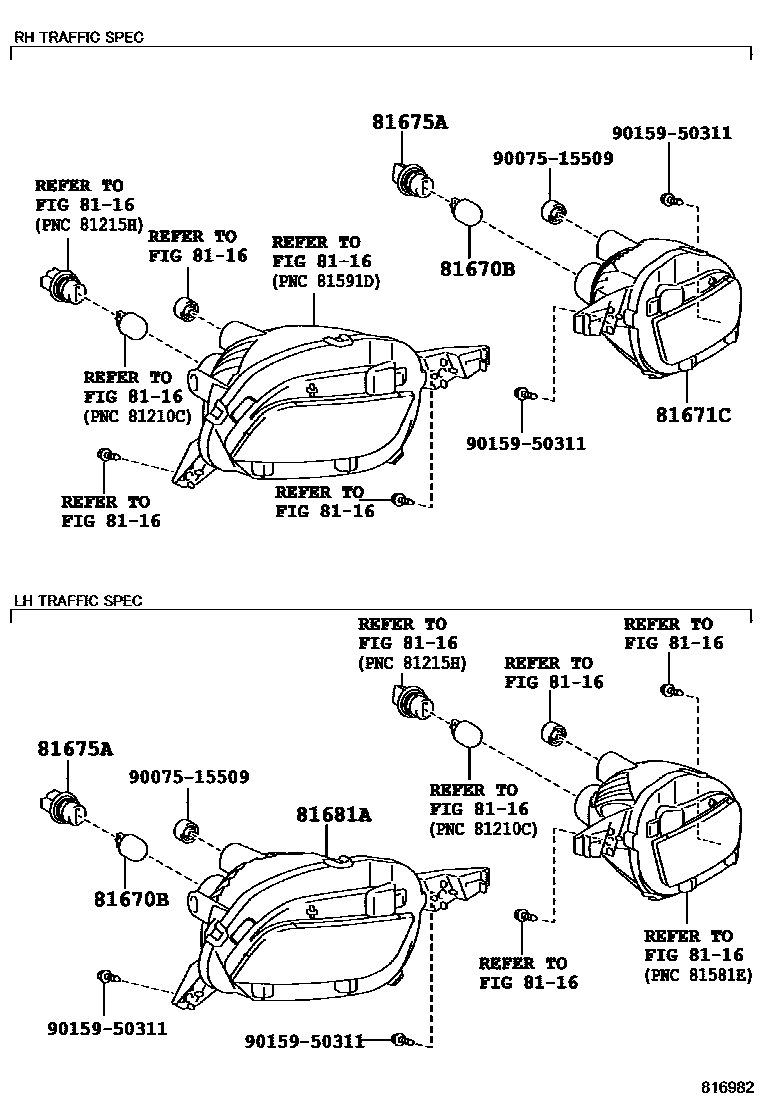

7 parts on this diagram · 1 diagram in section
