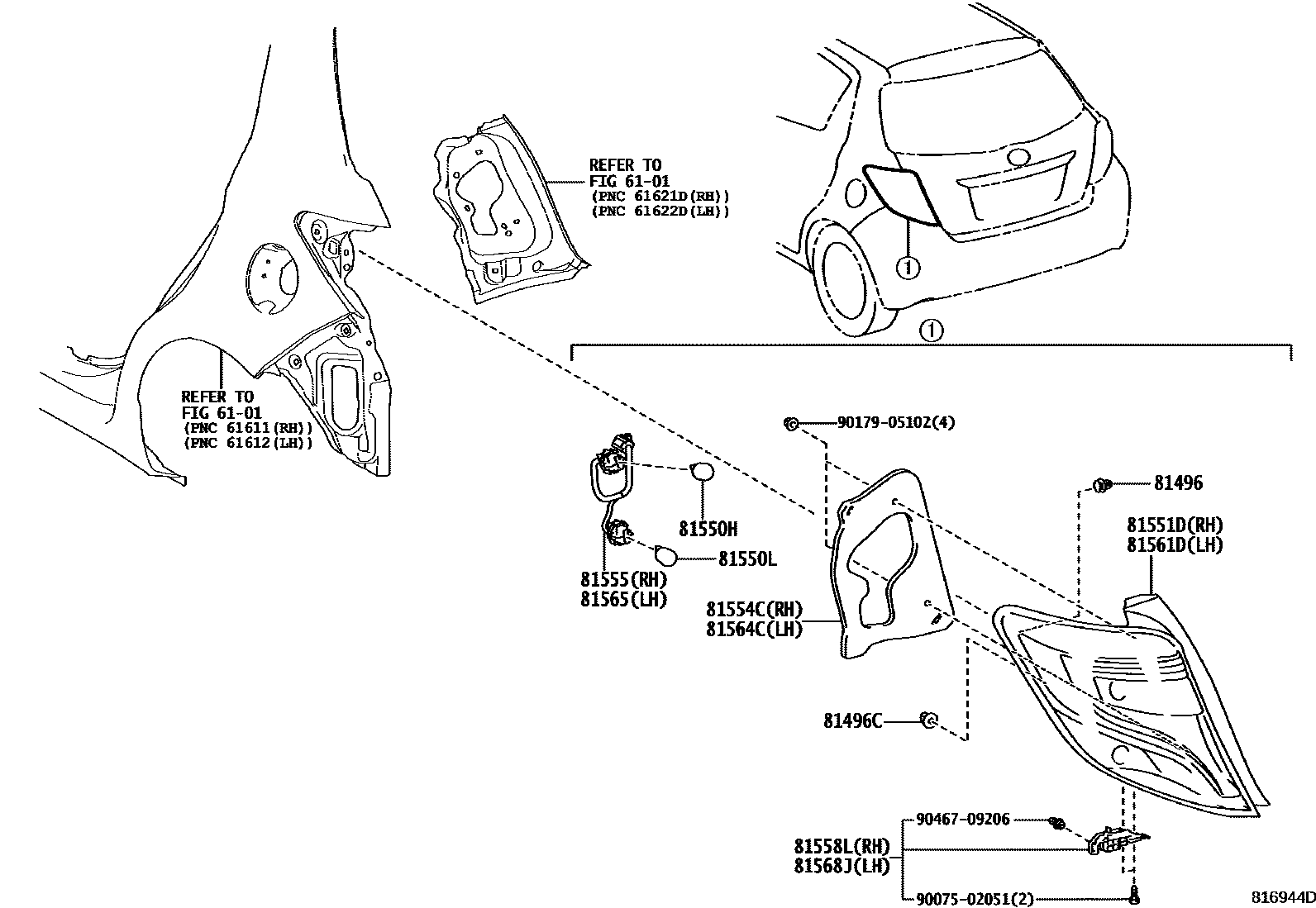

REAR COMBINATION LAMP

0001 1STOP LAMP = BULB 0002 1STOP LAMP = LED 0003 1REAR COMBINATION LAMP 0004 1REAR LAMP

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020×2iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

81550LAMP ASSY, REAR COMBINATION, RH

main90981-15021

main90981-13044

main90981-11059

main90981-13093

main90981-13094

main81550-0DB60

main81550-0DB61

main81550-0DB70

main81550-0DB71

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iKSP130,NLP130,NSP130..5D..(G,S);KSP130,NHP130,NLP130,NSP130..N,R201407-201703

12V 21/5W,REAR COMBINATION LAMP-STOP LAMP(BULB)

main90981-13094×2iNHP130..RHD..G201703-202006

12V 21/5W,HEADLAMP AIMING-RH TRAFFIC SPEC&REAR COMBINATION LAMP-BULB

81550LBULB, REAR TURN SIGNAL LAMP

main90981-13093×2iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

12V 21W

main90981-15021×2iKSP130,NHP130,NLP130,NSP131201703-202006

12V 21W,AMBER

81551DLENS & BODY, REAR COMBINATION LAMP, RH

81554CPACKING, REAR COMBINATION LAMP BODY, RH

main81552-0DB60iKSP130,NHP130,NLP130,NSP131201703-202006

main81554-0D600iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0D600

main81555-0D610

main81555-0DB60

main81555-0DB70

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-0D600iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

81561DLENS & BODY, REAR COMBINATION LAMP, LH

81564CPACKING, REAR COMBINATION LAMP BODY, LH

main81554-0D600iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

main81562-0DB60iKSP130,NHP130,NLP130,NSP131201703-202006

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0D600

main81555-0D610

main81555-0DB60

main81555-0DB70

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81568-0D600iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

9007502051

main90075-02051

9017905102

main90179-05102

9046709206

main90467-09206

17 parts on this diagram · 4 diagrams in section
