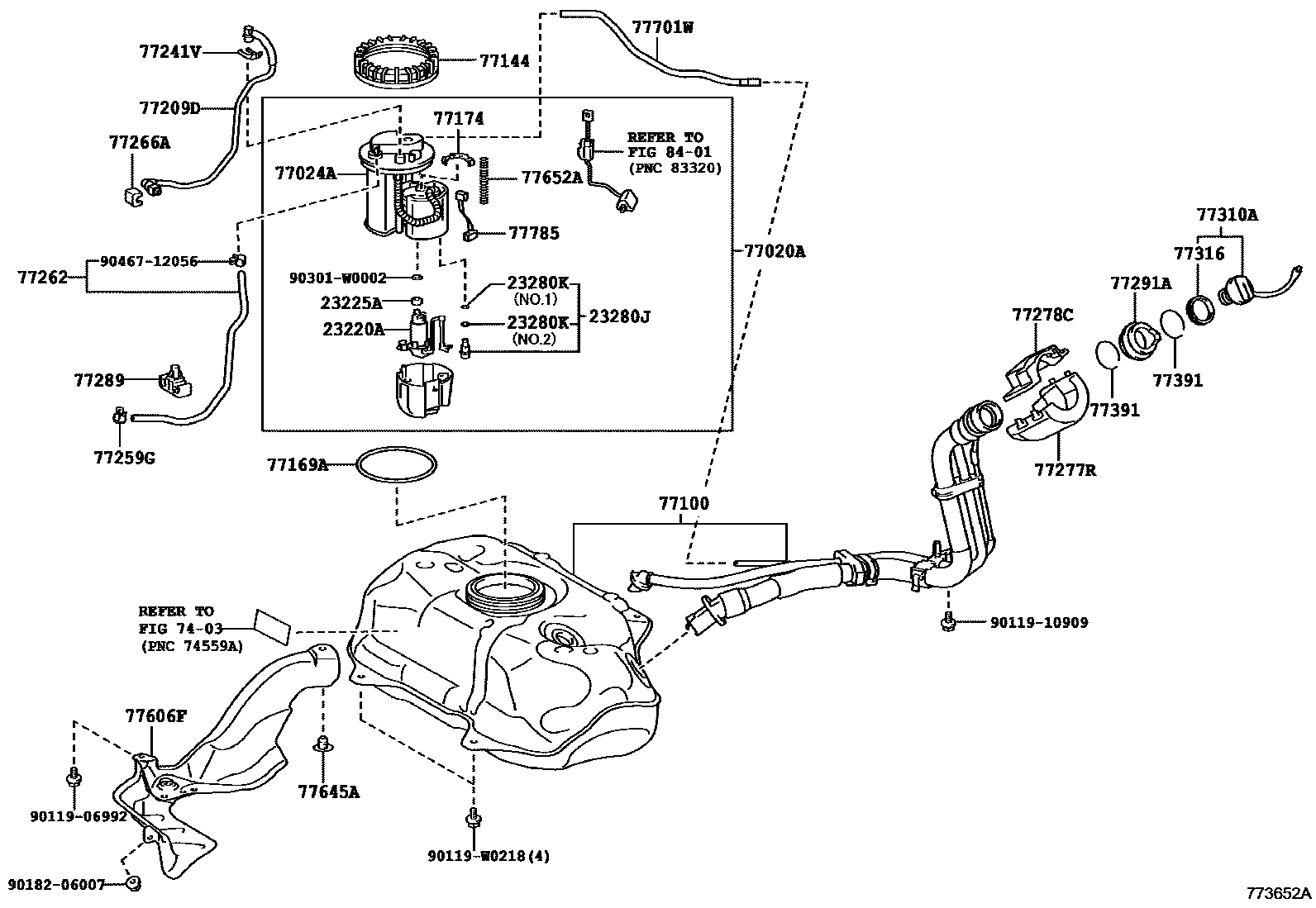

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE,W/O(REAR HEATER DUC0006 1FUEL TUBE,W(REAR HEATER DUCT)0007 1FUEL TUBE 0008 1FUEL LID OPENER 0009 1FUEL LID OPENER

23220APUMP ASSY, FUEL W/FILTER

main23220-0Q041i1NZFXE..NHP130¥31,700201407-202006

23225ASPACER, FUEL PUMP

main23225-0T010i1KRFE,1NRFE..KSP130,NSP130..3D..(G,S)¥410201407-202006

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i1NZFXE..NHP130¥6,000201407-202006

main23280-22010i1KRFE,1NRFE..KSP130,NSP130..N,R;1KRFE,1NRFE..KSP130,NSP130..5D..(G,S)¥6,000201407-202006

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1NZFXE..NHP130¥140201407-202006

NO.1:REFER ILLUST.

main90301-07020i1KRFE,2NRFKE..KSP130,NSP131201407-202006

main90301-15024i1NZFXE..NHP130¥140201407-202006

NO.2:REFER ILLUST.

7403

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0D161iNHP130201407-202006

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0D120iNHP130201407-202006

77100TANK ASSY, FUEL

main77001-0D160iKSP130,NSP131¥37,200201407-201904

sub77001-0D470

main77001-0D180iNLP130201407-201505

main77001-0D200iNHP130201407-201904

sub77001-0D480

main77001-0D340iNLP130..N,R;NLP130..5D..(G,S)201505-201812

main77001-0D470iKSP130,NSP131201905-202006

main77001-0D480iNHP130201905-202006

77144RETAINER, FUEL PUMP GAUGE

main77144-0D070iKSP130,NLP130,NSP130..3D..(G,S)¥2,990201407-202006

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0D070iKSP130,NLP130,NSP130..3D..(G,S)¥930201407-201904

main77169-0D150iKSP130,NHP130,NSP131201905-202006

77174SUPPORT, FUEL SUCTION, NO.1

main77174-0D050iNHP130¥440201407-202006

main77174-0D070iKSP130,NSP131201407-202006

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0D100iKSP130,NSP131201407-201904

main77209-0D110iNLP130..N,R;NLP130..5D..(G,S)201407-201812

main77209-0D120iNHP130201407-201904

main77209-0D310iKSP130,NSP131201905-202006

main77209-0D320iNHP130201905-202006

77241VCLIP, TUBE JOINT

main77241-32060iKSP130,NSP130..3D..(G,S)¥80201407-202006

77259GCLIP, FUEL HOSE

main90466-13004iNHP130;KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)¥140201407-201703

main90466-13005iKSP130,NHP130,NSP131¥120201703-202006

77262TUBE, FUEL EMISSION, NO.2

main77028-0D090iKSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)201407-202006

main77028-0D110iNHP130201407-202006

77266APROTECTOR, FUEL TUBE, NO.1

main77266-52110iNHP130¥440201407-202006

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-52090iNHP130¥1,700201407-202006

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-12070iNHP130¥1,090201407-202006

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52130iNHP130¥340201407-202006

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0D130iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

77310ACAP ASSY, FUEL TANK

main77300-20020iNLP130..3D..(G,S)¥2,200201407-201812

main77300-52030iNHP130;KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)¥1,560201407-202006

77316GASKET, FUEL TANK CAP

main77316-52040iKSP130,NLP130,NSP130..3D..(G,S)¥230201407-202006

77391RING, FUEL INLET BOX

main77391-12020iKSP130,NLP130,NSP130..3D..(G,S)¥180201407-202006

77606FCASE SUB-ASSY, FUEL TANK COVER VENT

main77606-0D050iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

main77606-0D070iNHP130201407-202006

77645ARETAINER, FUEL TANK PROTECTOR

main77645-52040iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)¥110201407-202006

77652ACUSHION, FUEL TANK, NO.2

main77652-0D040iNHP130201407-202006

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-0D060iKSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)201407-202006

main77701-0D070iNHP130201407-202006

77785HARNESS, FUEL PUMP

main77785-0D071iKSP130,NSP130..3D..(G,S)201407-202006

main77785-0D080iNHP130¥1,140201407-202006

8401

9011906992

main90119-06992¥60

9011910909

main90119-10909¥100

90119W0218

main90119-W0218¥140

9018206007

main90182-06007¥60

90301W0002

main90301-W0002¥130

9046712056

main90467-12056¥70

35 parts on this diagram · 9 diagrams in section
