MUDGUARD & SPOILER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-0D050iKSP130,NHP130,NLP130,NSP130201407-201409

main65631-0D051iKSP130,NLP130,NSP130..3D..(G,S)201410-202006

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-0D050iKSP130,NHP130,NLP130,NSP130201407-201409

main65632-0D051iKSP130,NLP130,NSP130..3D..(G,S)201410-202006

75865EPROTECTOR, ROCKER PANEL MOULDING, RH

main75865-0D021iKSP130,NLP130,NSP130..3D..(G,S)201407-201703

WITH(STOP & START SYSTEM)

main75865-0D021iKSP130,NLP130,NSP131201703-202006

AIR SPATS-WITH(FRONT & REAR)

75866EPROTECTOR, ROCKER PANEL MOULDING, LH

main75866-0D021iKSP130,NLP130,NSP130..3D..(G,S)201407-201703

WITH(STOP & START SYSTEM)

main75866-0D021iKSP130,NLP130,NSP131201703-202006

AIR SPATS-WITH(FRONT & REAR)

75895FTAPE, MOULDING, NO.1

75896DTAPE, MOULDING, NO.2

75897TAPE, MOULDING, NO.3

main75897-0D030

75898BTAPE, MOULDING, NO.4

76085SPOILER SUB-ASSY, REAR

main76085-0D902

main76085-0D903

76851COVER, FRONT SPOILER

main76851-0D050iNHP130201407-202006

FRONT SPOILER-WITH

main76851-0D050iNHP130201407-202006

FRONT SPOILER-WITHOUT

76865BRETAINER, REAR SPOILER

76879CLIP, REAR SPOILER, NO.1

main76879-0D080

76889CLIP, REAR SPOILER, NO.2

main76889-0D040

76893ACOVER, REAR SPOILER, RH

76894COVER, REAR SPOILER, LH

main76894-0D903

9015960383

main90159-60383

9015960431

main90159-60431

9017906219

main90179-06219

9018906006

main90189-06006

9018906237

main90189-06237

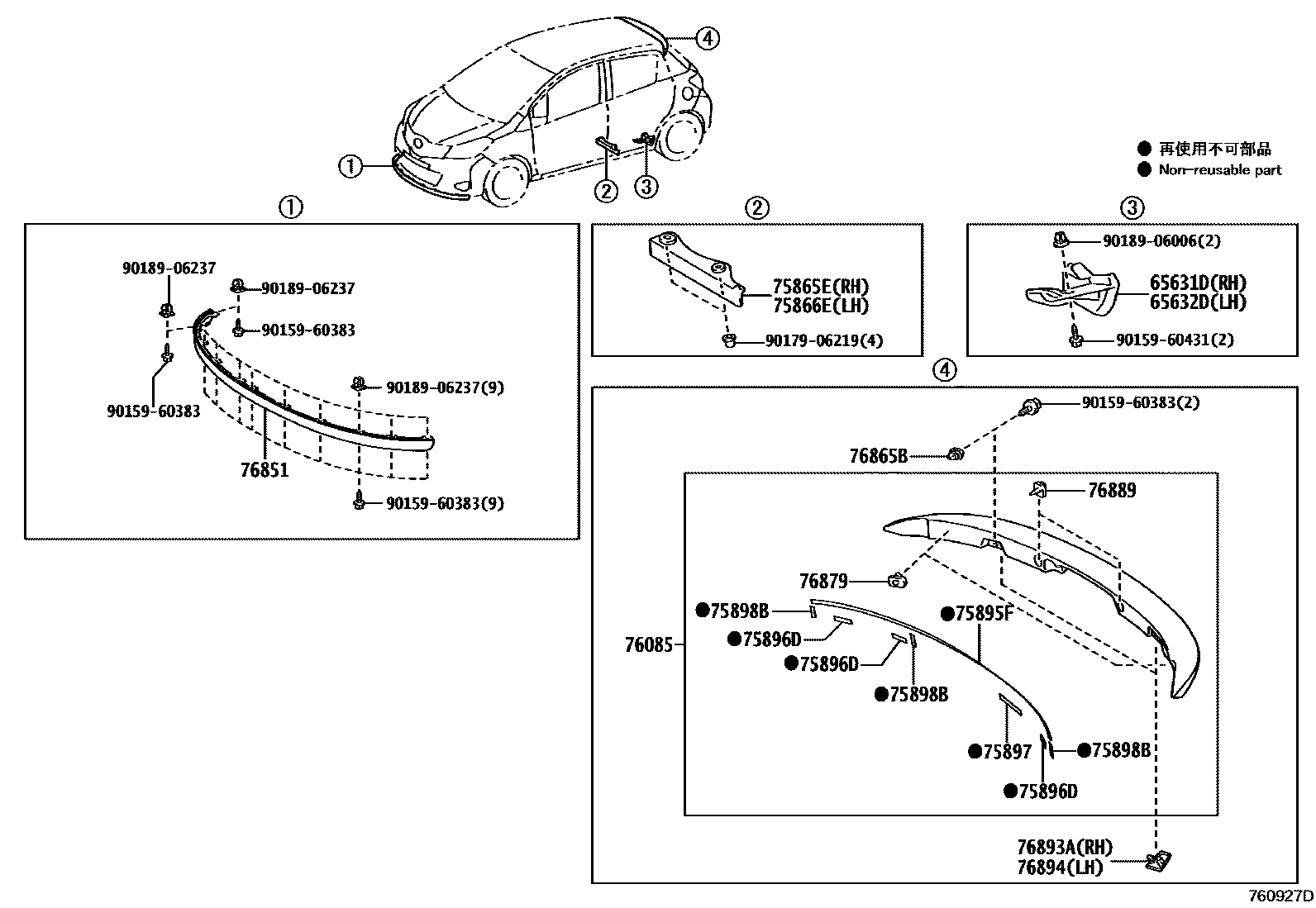

20 parts on this diagram · 1 diagram in section
