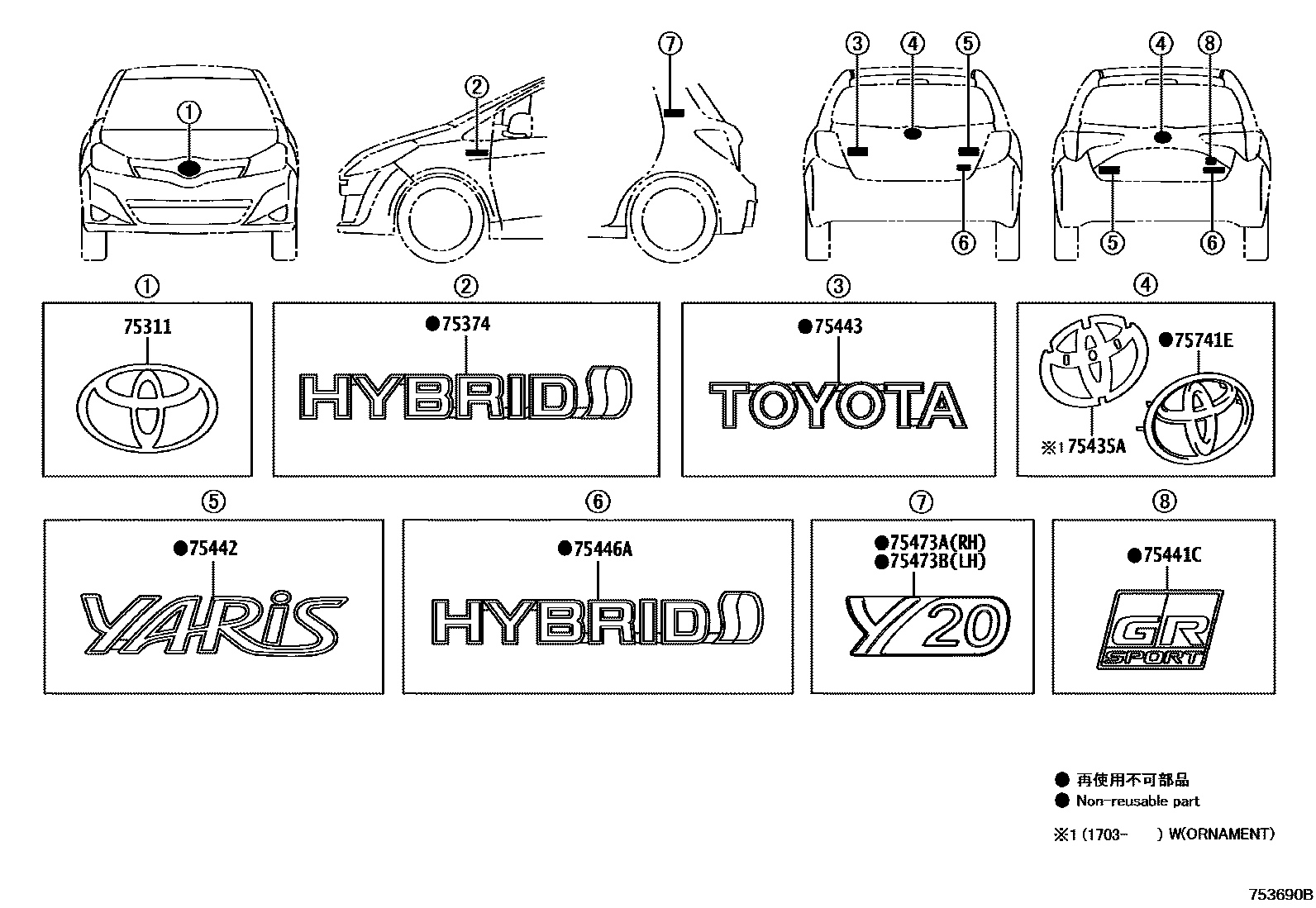

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75301-0D130iNHP130201407-202006

main75311-02140iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

75374EMBLEM, SIDE PANEL

main75374-0D040iNHP130201409-202006

RH

main75374-0D040iNHP130201409-201703

HV SIMPLE PACKAGE,RH

main75374-0D040iNHP130201703-202006

SIMPLE PACKAGE,RH

main75374-0D050iNHP130201409-202006

LH

main75374-52050iNHP130..N201407-201408

RH

main75374-52050iNHP130..N201407-201408

HV SIMPLE PACKAGE,RH

main75374-52060iNHP130201407-201408

LH

75435AORNAMENT, BACK DOOR

main75435-0D010iNHP130201703-202006

75441CPLATE, BACK DOOR NAME

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-0D150iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

YARIS

main75442-0D150iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

YARIS,HV SIMPLE PACKAGE

main75442-0D510iKSP130,NHP130,NLP130,NSP131201703-202006

YARIS

main75442-0D510iKSP130,NHP130,NLP130,NSP131201703-202006

YARIS,SIMPLE PACKAGE

75443PLATE, BACK DOOR NAME, NO.3

main75446-0D040iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

TOYOTA

main75446-0D040iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

TOYOTA,HV SIMPLE PACKAGE

75446APLATE, BACK DOOR NAME, NO.6

main75374-0D030iNHP130201407-201703

HYBRID

main75444-0DA80iNHP130201703-202006

HYBRID

75473APLATE, REAR BODY NAME, NO.2

75473BPLATE, REAR BODY NAME, NO.3

75741EEMBLEM, SYMBOL

main75403-48010iNHP130201407-201703

main75431-0D120iKSP130,NHP130,NLP130,NSP131201703-202006

main90975-02071iKSP130,NLP130,NSP130..3D..(G,S)201407-201703

10 parts on this diagram · 1 diagram in section
