REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0D061iKSP130,NHP130,NLP130,NSP130..5D201407-202006

sub68750-0H010¥2,030

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0D061iKSP130,NHP130,NLP130,NSP131..5D201407-202006

sub68760-0H010¥2,030

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D071iKSP130,NHP130,NLP130,NSP131..5D201407-202006

sub68770-0H010¥2,420

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D071iKSP130,NHP130,NLP130,NSP130..5D201407-202006

sub68780-0H010¥2,410

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-02020-C1iNHP130..N201407-201505

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),EU BLACK,TRIM0#,1#,2#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C1iNHP130..N201407-201505

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),EU BLACK,TRIM1#,2#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C1iNLP130,NSP130..5D..S201407-201505

EU BLACK,TRIM0#,2#,5#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C1iNLP130,NSP130..5D..S201407-201505

EU BLACK,TRIM2#,3#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C1iNLP130,NSP130..5D..S201407-201505

EU BLACK,TRIM0#,1#,2#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C1iNLP130,NSP130..5D..S201407-201505

EU BLACK,TRIM0#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C1iNLP130,NSP130..5D..S201407-201505

EU BLACK,TRIM1#,2#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C1iNLP130,NSP130..5D..S201407-201505

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),EU BLACK,TRIM0#,2#,5#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-C1iNLP130,NSP130..5D..S201407-201505

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),EU BLACK,TRIM2#,3#

sub69260-02020¥1,600

sub69260-02021

main69260-02021-C1iKSP130,NLP130,NSP130..5D..R201506-201703

EU BLACK,TRIM0#,2#

main69260-02021-C1iKSP130,NLP130,NSP130..5D..R201506-202006

EU BLACK,TRIM2#

main69260-02021-C1iKSP130,NLP130,NSP130..5D..R201506-201703

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),EU BLACK,TRIM0#,2#

main69260-02021-C1iKSP130,NLP130,NSP130..5D..R201506-201703

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),EU BLACK,TRIM2#

main69260-02021-C1iNHP130,NSP130..5D..CVT..N201506-201703

EU BLACK,TRIM0#

main69260-02021-C1iKSP130,NHP130,NLP130,NSP130..G201511-201703

EU BLACK,TRIM2#,3#,4#

main69260-02021-C1iKSP130,NHP130,NLP130,NSP130..G201511-201703

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),EU BLACK,TRIM2#,3#,4#

main69260-02021-C1iKSP130,NHP130,NLP130,NSP131..5D..(N,R,S)201703-202006

POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN),EU BLACK,TRIM2#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90080-52100iKSP130,NHP130,NLP130,NSP130..5D..(N,R,S)201407-201703

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

main90080-52100iKSP130,NHP130,NLP130,NSP131..5D..(N,R,S)201703-202006

POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN)

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-0D030iKSP130,NHP130,NLP130,NSP130..5D..(N,R,S)201407-201703

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

main69268-0D030iKSP130,NHP130,NLP130,NSP131..5D..(N,R,S)201703-202006

POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN)

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-0D220iKSP130,NHP130,NLP130,NSP130..5D..G201407-201511

main69830-0D220iKSP130,NHP130,NLP130,NSP131..G201703-202006

POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN)

main69830-0D230iKSP130,NHP130,NLP130,NSP130..G201407-202006

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-0D220iNSP131..LHD..5D..R;KSP130,NHP130,NLP130,NSP131..5D..(N,S)201703-202006

POWER WINDOW-FRONT & REAR(*DRS ONE TOUCH UP/DOWN)

main69840-0D220iKSP130,NHP130,NLP130,NSP130..5D..G201407-201511

main69840-0D230iKSP130,NHP130,NLP130,NSP131..5D..(N,R,S)201407-202006

90105W0087

main90105-W0087¥80

90105W0156

main90105-W0156¥80

90105W0183

main90105-W0183¥60

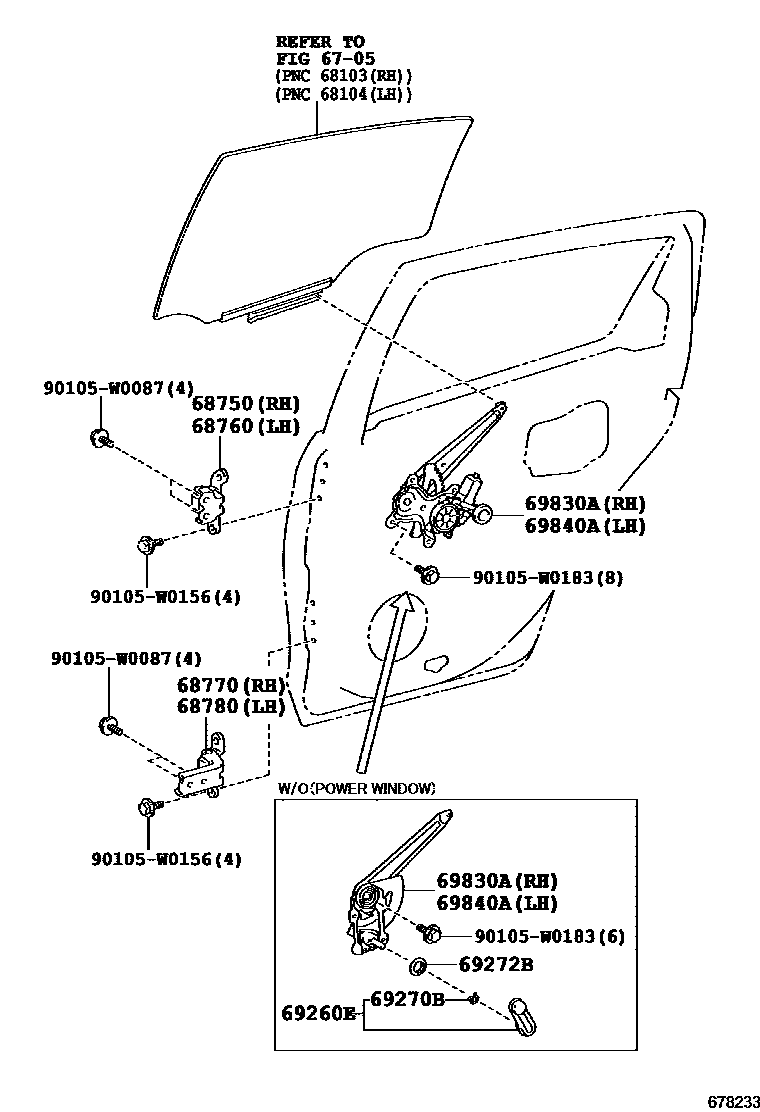

13 parts on this diagram · 1 diagram in section
