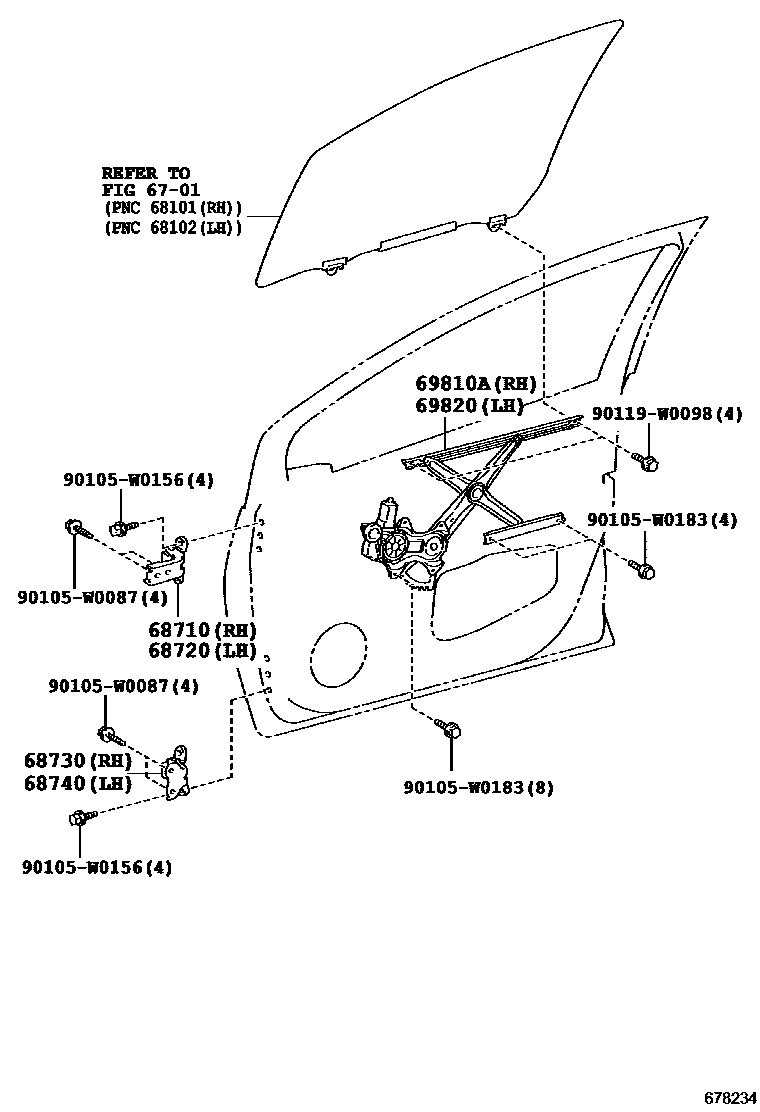

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D091iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

sub68710-02060

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D091iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

sub68720-02060

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0D071iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

sub68730-02050

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0D071iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

sub68740-02050

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-0D300iKSP130,NLP130,NSP130..LHD..3D..(G,S)201407-202006

main69810-0D430iNHP130..RHD;KSP130,NLP130,NSP130..RHD..(N,R);KSP130,NLP130,NSP130..RHD..5D..(G,S)201407-202006

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-0D300iKSP130,NHP130,NLP130,NSP131..RHD201407-202006

main69820-0D440iNHP130..LHD;KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S)201407-202006

90105W0087

main90105-W0087

90105W0156

main90105-W0156

90105W0183

main90105-W0183

90119W0098

main90119-W0098

11 parts on this diagram · 1 diagram in section
