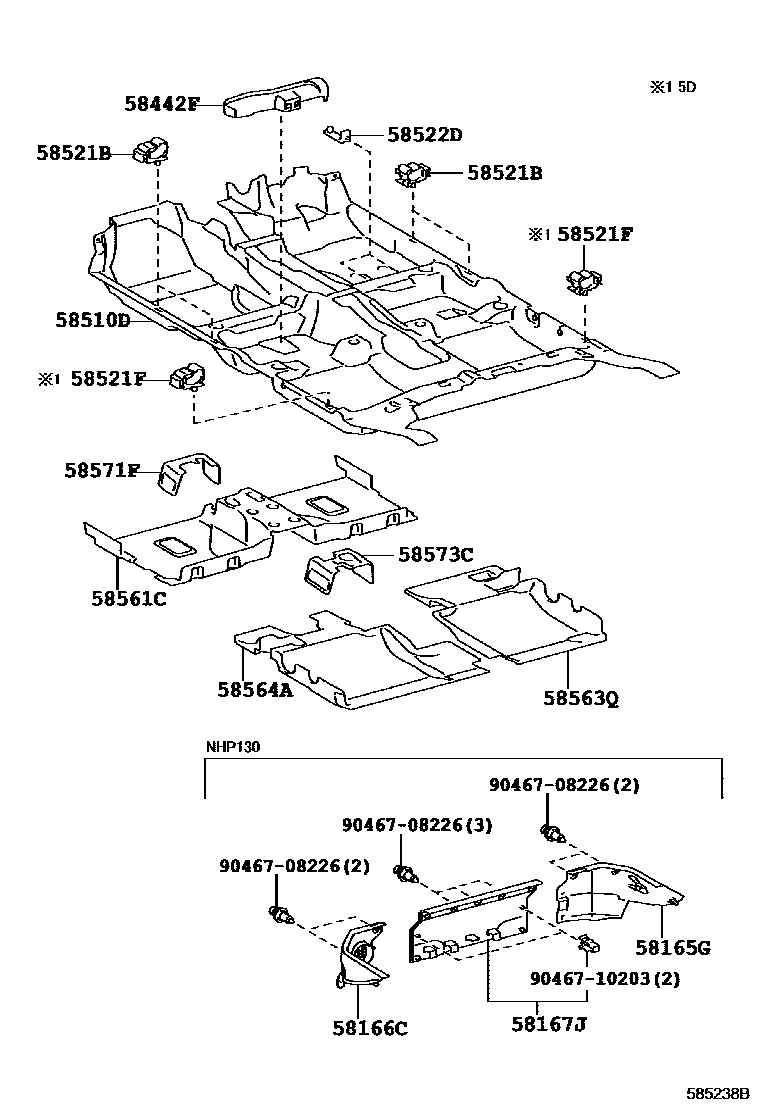

MAT & CARPET

0001 1FLOOR CARPET 0002 1FLOOR MAT(RUBBER TYPE) 0003 1FLOOR MAT(TEXTILE TYPE)

58165GCOVER, FRONT FLOOR, RH

main58165-0D060-C1iNHP130..N201407-201703

EU BLACK,TRIM2#,3#,4#

58166CCOVER, FRONT FLOOR, LH

main58166-0D050-C1iNHP130..N201407-201703

EU BLACK,TRIM2#,3#,4#

58167JCOVER, FRONT FLOOR, CENTER

main58167-0D020-C1iNHP130..N201407-201703

EU BLACK,TRIM2#,3#,4#

58442FCOVER, JACK

main58442-0D090iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

58510DCARPET ASSY, FLOOR, FRONT

main58510-0D660-C1iNHP130..LHD..N201407-201703

BLACK,TRIM2#,3#,4#

main58510-0D770-C1iKSP130,NSP130..LHD..R201407-201703

BLACK,TRIM0#

main58510-0D790-C1iNLP130..LHD..R201407-201703

BLACK,TRIM0#

main58510-0D870iNSP131..RHD..R;KSP130..RHD..(N,R)201703-202006

main58510-0DC40iNLP130..RHD;KSP130..RHD..G;NSP130..RHD..(G,N,S)201407-201703

main58510-0DC70iNHP130..RHD201703-202006

58521BHOOK, FLOOR CARPET

main58521-52050×4iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

58521FHOOK, FLOOR CARPET

main58521-0D060×2iKSP130,NHP130,NLP130,NSP130..5D201407-201703

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030×2iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

58561CSILENCER, FRONT FLOOR, NO.1

main58561-0D170iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

main58561-0D180iNHP130..LHD;KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S)201407-201703

COLD AREA SPEC&WITH(REAR HEATER DUCT)

58563QSILENCER, FRONT FLOOR, NO.3

main58563-0D170iKSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

main58563-0D180iNHP130201407-201703

58564ASILENCER, FRONT FLOOR, NO.4

main58564-0D140iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

main58564-0D150iNHP130201703-202006

58571FPAD, FRONT FLOOR, FRONT

main58571-0D090iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

58573CPAD, FRONT FLOOR CENTER

main58573-0D020iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

9046708226

main90467-08226

9046710203

main90467-10203

15 parts on this diagram · 3 diagrams in section
