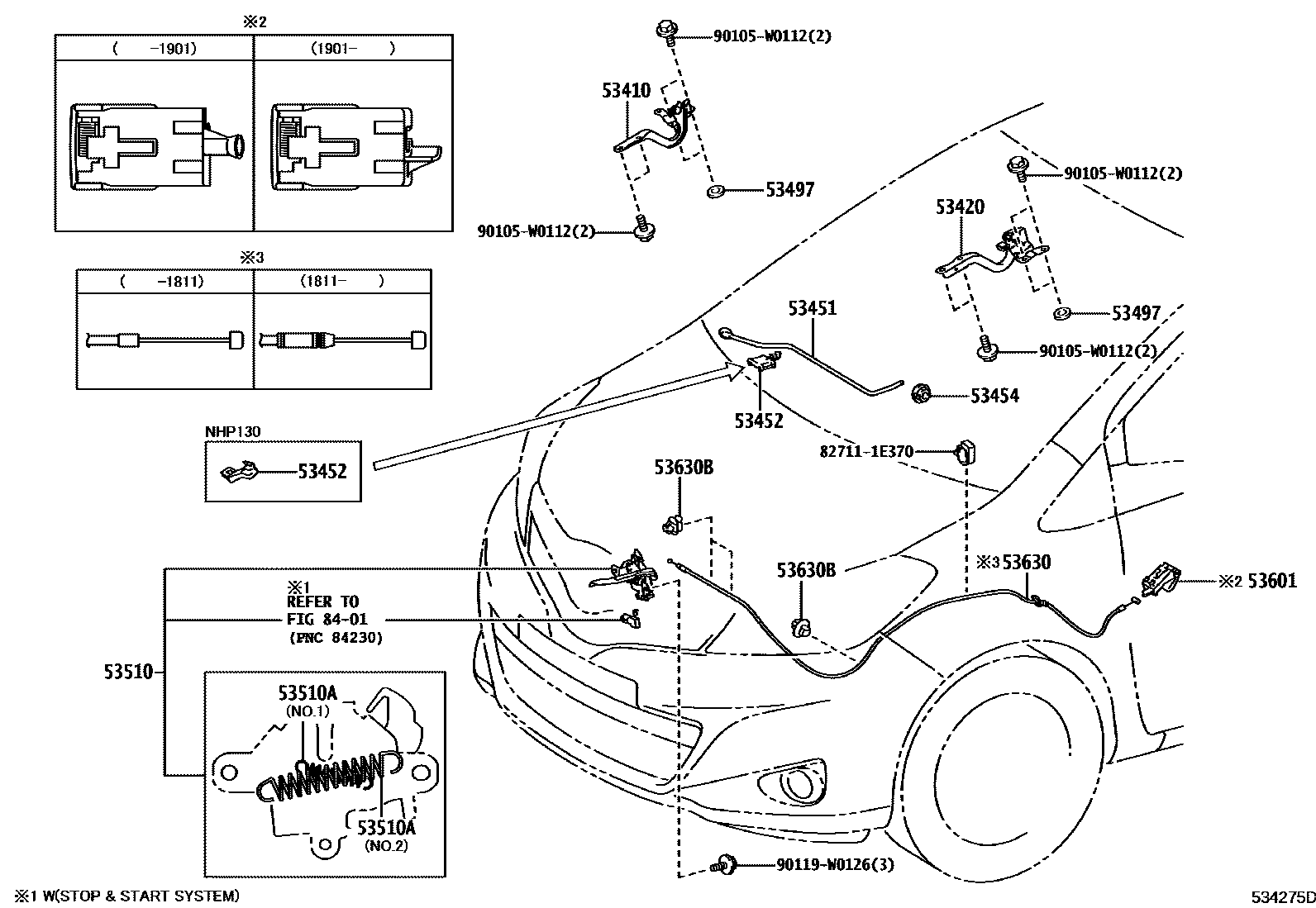

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-0D320iKSP130,NHP130,NLP130,NSP131201407-202006

53420HINGE ASSY, HOOD, LH

main53420-0D320iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

53451ROD, HOOD SUPPORT

main53440-0D100iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

53452HOLDER, HOOD STAY

main53452-0D010iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

main53452-0D060iNHP130201407-202006

53454CLIP, HOOD SUPPORT ROD

main53454-52020iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

53497PAD, HOOD HINGE, NO.1

main53497-05010iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

T=1.0

53510LOCK ASSY, HOOD

main53510-0D290iKSP130,NLP130,NSP130..RHD..3D..(G,S)201407-202006

main53510-0D300iKSP130,NLP130,NSP130..LHD..3D..(G,S)201407-202006

main53510-0D310iKSP130..RHD201407-201505

WITH(STOP & START SYSTEM)

main53510-0D320iKSP130..LHD201407-202006

WITH(STOP & START SYSTEM)

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-W0004iKSP130,NLP130,NSP130..RHD..3D..(G,S)201407-202006

WD=1.0,CW=15.5,NO.1

main90506-W0005iKSP130,NHP130,NLP130,NSP131..LHD201407-202006

WD=1.0,CW=24,NO.1

main90506-W0006iKSP130,NHP130,NLP130,NSP131201407-202006

WD=1.6,CW=13,NO.2

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-05030-C0iKSP130,NHP130,NLP130,NSP130201407-201408

BLACK

sub53601-05030

main53601-05030-C1iKSP130,NHP130,NLP130,NSP131201408-201811

EU BLACK,TRIM2#

sub53601-05030

main53601-05030-C1iNSP130..6F..N;NSP130..5D..S;NSP130..3D..(G,S);KSP130,NLP130..5D..(N,S);KSP130,NLP130..3D..(G,N,S)201408-201703

EU BLACK,TRIM0#,2#

sub53601-05030

main53601-05030-C1iNHP130,NSP130..CVT..N201408-201703

EU BLACK,TRIM0#

sub53601-05030

main53601-05030-C1iNHP130,NSP130..CVT..N201408-201703

EU BLACK,TRIM2#,3#,4#

sub53601-05030

main53601-F4020-C0iKSP130,NHP130,NSP131201901-202006

BLACK,TRIM2#

sub53601-F4020

main53601-F4020-C1iKSP130,NHP130,NLP130,NSP131201811-201901

EU BLACK,TRIM2#

sub53601-F4020

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52120iKSP130,NLP130,NSP130..3D..(G,S)201407-201811

main53630-52230iKSP130,NHP130,NLP130,NSP131201811-202006

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iNHP130;KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S)201407-202006

8401

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

90105W0112

main90105-W0112

90119W0126

main90119-W0126

15 parts on this diagram · 2 diagrams in section
