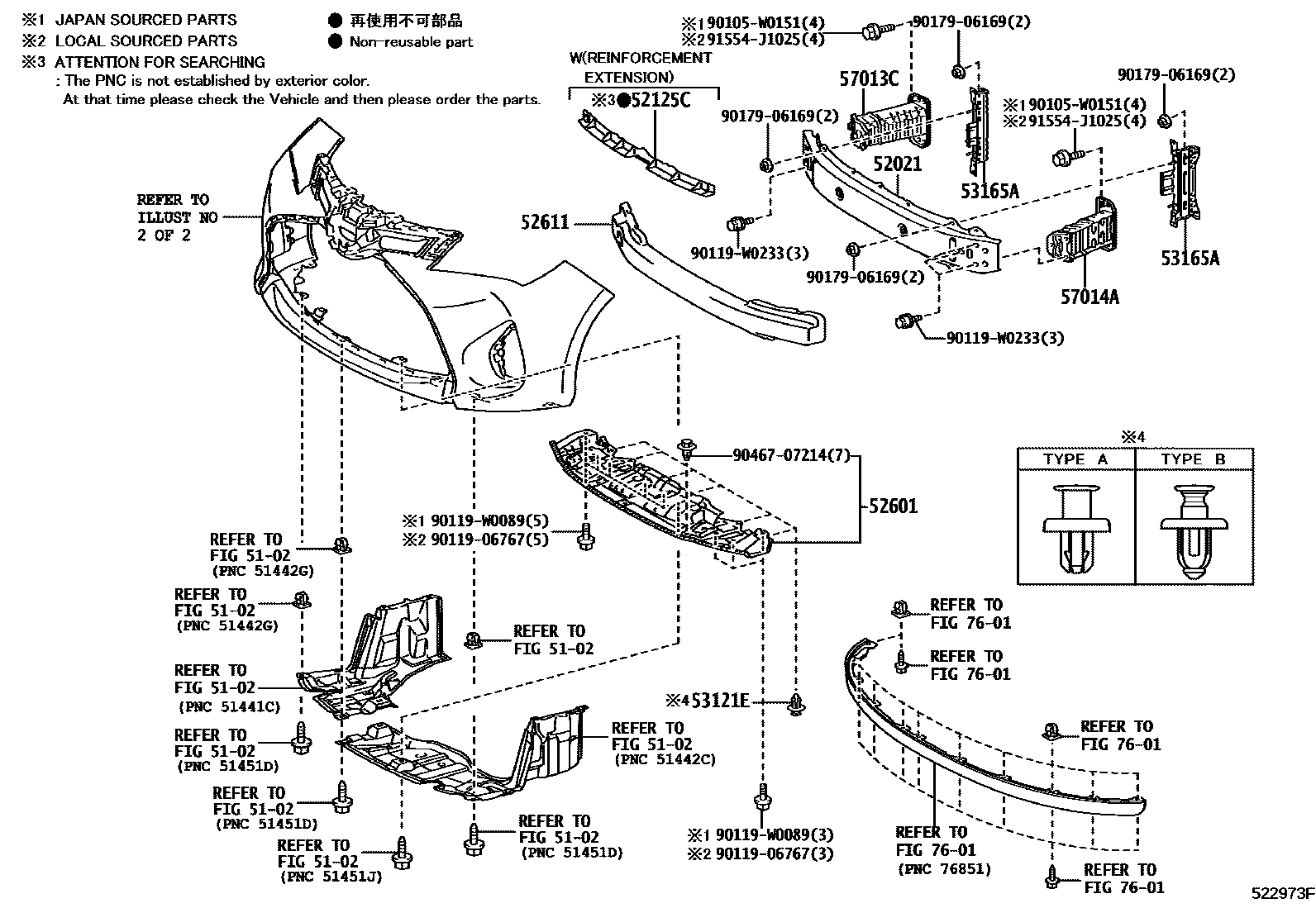

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0D070iKSP130,NHP130,NLP130,NSP131201703-202006

52125CEXTENSION, FRONT BUMPER REINFORCEMENT

main52125-0D060iKSP130,NHP130,NLP130,NSP130..G201511-201703

REFER TO ILLUST.

52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY

main52601-0D020iNHP130201703-202006

main52601-0D030iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0D020iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

53121ECLIP(FOR FRONT BUMPER), NO.1

main51454-48010×6iKSP130,NHP130,NLP130,NSP130201407-201703

TYPE B:REFER ILLUST.

main90467-W0014-C0×6iKSP130,NHP130,NLP130,NSP130201407-201703

BLACK,TYPE A:REFER ILLUST.

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-0D060×2iKSP130,NHP130,NLP130,NSP131201703-202006

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0D041iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0D030iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

7601

90105W0151

main90105-W0151

9011906767

main90119-06767

90119W0089

main90119-W0089

90119W0233

main90119-W0233

9017906169

main90179-06169

9046707214

main90467-07214

91554J1025

main91554-J1025

17 parts on this diagram · 4 diagrams in section
