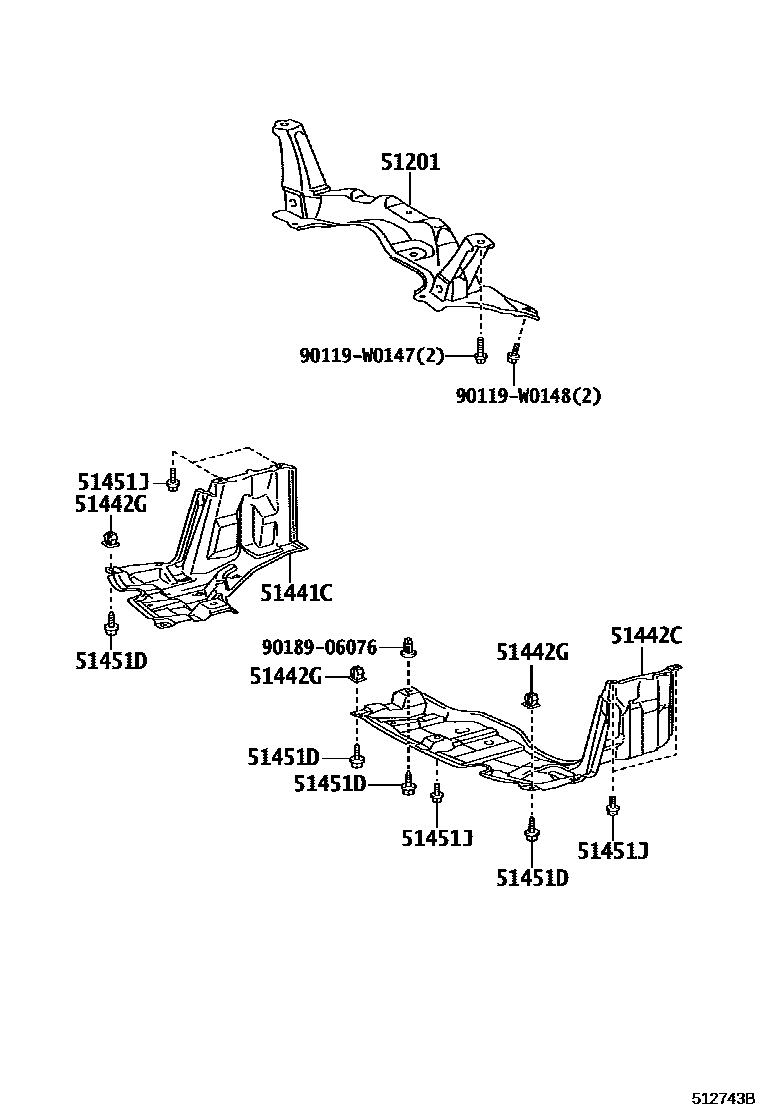

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0D096iKSP130,NSP130..3D..(G,S)201407-202006

sub51201-52087

main51201-0D106iNLP130..3D..(G,S)201407-202006

sub51201-52097

51441CCOVER, ENGINE UNDER, RH

main51441-0D221iKSP130..N,R;KSP130..5D..G201407-202006

main51441-0D231iNHP130;NSP130..N,R;NSP130..5D..(G,S)201407-202006

main51441-0D240iNLP130..3D..(G,S)201407-201812

51442CCOVER, ENGINE UNDER, LH

main51442-0D141iKSP130,NSP130..3D..(G,S)201407-202006

main51442-0D150iNLP130201407-201812

51442GCLIP, ENGINE UNDER COVER, NO.1

main90189-06237iKSP130,NHP130,NLP130,NSP130201407-202006

51451DSCREW, NO.1

main90159-W0007iNLP130..3D..(G,S)201407-202006

51451JBOLT, NO.1

main90119-W0089iKSP130,NHP130,NLP130,NSP130201407-202006

90119W0147

main90119-W0147

90119W0148

main90119-W0148

9018906076

main90189-06076

9 parts on this diagram · 2 diagrams in section
