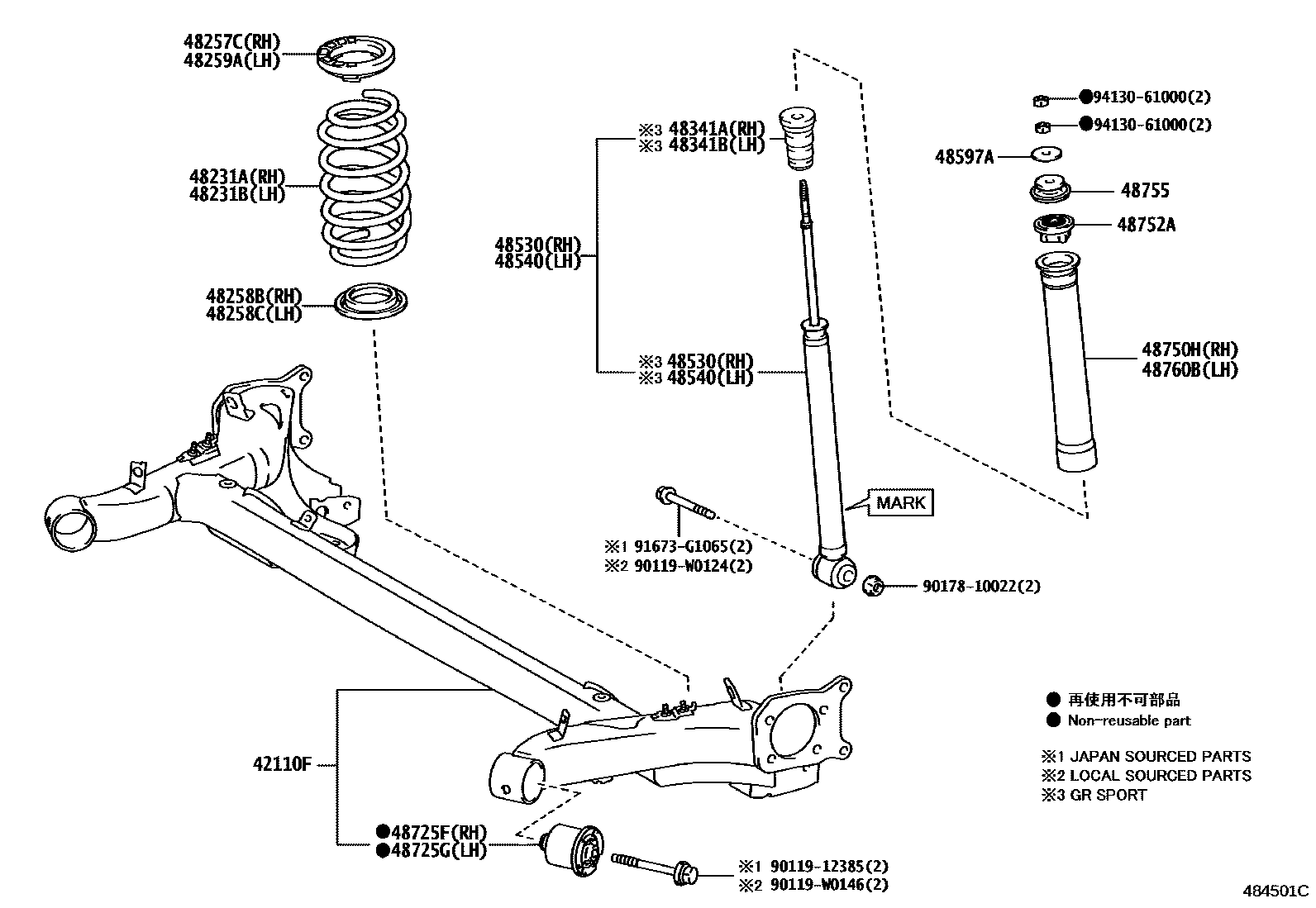

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-0D510iKSP130,NLP130,NSP131201407-202006

main42110-0D520iNLP130..RHD;KSP130,NSP131201407-202006

REAR WHEEL BRAKE-DISC

48231ASPRING, COIL, REAR RH

main48231-0D640iNLP130..3D..G201407-201606

sub48231-0D641

main48231-0D641iNSP131..G,N201703-201811

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

main48231-0D641iNSP131..S;NLP130..RHD201703-201811

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

main48231-0D641iNLP130;NSP130..S201607-201805

main48231-0D670iKSP130,NSP130..N,R;KSP130,NSP130..5D..G201407-201606

sub48231-0D671

main48231-0D671iKSP130,NSP131..G,N,R201703-202006

TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48231-0D671iKSP130,NSP130..G,N,R201607-201703

main48231-0D721iNLP130201805-201812

main48231-0D750iNHP130201407-201607

sub48231-0D751

main48231-0D751iNHP130..N201703-202006

TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48231-0D751iNHP130201608-201703

48231BSPRING, COIL, REAR LH

main48231-0D640iNLP130,NSP130..5D..S201407-201606

sub48231-0D641

main48231-0D641iNLP130;NSP130..S201607-201805

main48231-0D641iNSP131..G,N201703-201811

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

main48231-0D641iNSP131..G,N201703-201811

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

main48231-0D670iKSP130,NSP130..3D..G201407-201606

sub48231-0D671

main48231-0D671iKSP130,NSP130..G,N,R201607-201703

main48231-0D671iKSP130,NSP131..G,N,R201703-202006

TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48231-0D721iNLP130201805-201812

main48231-0D750iNHP130201407-201607

sub48231-0D751

main48231-0D751iNHP130201703-202006

TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48231-0D751iNHP130201608-201703

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0D010iKSP130,NHP130,NLP130,NSP131201407-202006

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-0D050iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-0D050iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0D010iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

48341ABUMPER, REAR SPRING, NO.1 RH

48341BBUMPER, REAR SPRING, NO.1 LH

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-0D890iNSP131..G,N,R201703-201708

MARK 48530-0D890

main48530-0D890iNSP131..G,N,R201703-201708

MARK 48530-0D890,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

main48530-0D890iNSP131..G,N,R201703-201708

MARK 48530-0D890,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48530-0D891iNSP131..G,N,R201709-201910

MARK 48530-0D891,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

sub48530-0D892

main48530-0D891iNSP131..5D..6F..N201709-201910

MARK 48530-0D891

sub48530-0D892

main48530-0D892iNSP131201911-202006

MARK 48530-0D892

main48530-0D892iNSP131201911-202006

MARK 48530-0D892,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48530-0DA00iKSP130201407-201910

MARK 48530-0DA00

sub48530-0DA01

main48530-0DA01iKSP130201911-202006

MARK 48530-0DA01

main48530-0DA10iNLP130..G,N,R201407-201705

MARK 48530-0DA10

sub48530-0DA11

main48530-0DA11iNLP130..LHD201706-201811

MARK 48530-0DA11

main48530-0DA20iNLP130201805-201812

MARK 48530-0DA20

sub48530-0DA21

main48530-0DA40iNHP130201407-201703

MARK 48530-0DA40

sub48530-0DA41

main48530-0DF10iNHP130..G201703-201708

MARK 48530-0DF10,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48530-0DF10iNHP130..N201703-201708

MARK 48530-0DF10

main48530-0DF10iNHP130..N201703-201708

MARK 48530-0DF10,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

main48530-0DF10iNHP130..N201703-201708

MARK 48530-0DF10,TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM

main48530-0DF10iNHP130..N201703-201708

MARK 48530-0DF10,TIRE & DISC WHEEL-175/65R15, 5J ALUMI

main48530-0DF11iNHP130..G201709-201910

MARK 48530-0DF11,TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM

sub48530-0DF12

main48530-0DF11iNHP130..G201709-201910

MARK 48530-0DF11,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

sub48530-0DF12

main48530-0DF11iNHP130..G201709-201910

MARK 48530-0DF11

sub48530-0DF12

main48530-0DF11iNHP130..G201709-201910

MARK 48530-0DF11,TIRE & DISC WHEEL-175/65R15, 5J ALUMI

sub48530-0DF12

main48530-0DF11iNHP130..G201709-201910

MARK 48530-0DF11,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

sub48530-0DF12

main48530-0DF12iNHP130..G201911-202006

MARK 48530-0DF12,TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM

main48530-0DF12iNHP130..N201911-202006

MARK 48530-0DF12

main48530-0DF12iNHP130..N201911-202006

MARK 48530-0DF12,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

main48530-0DF12iNHP130..N201911-202006

MARK 48530-0DF12,TIRE & DISC WHEEL-175/65R15, 5J ALUMI

main48530-0DF12iNHP130..N201911-202006

MARK 48530-0DF12,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48530-0DF20iNHP130..G,S201703-201708

MARK 48530-0DF20,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

sub48530-0DF21

main48530-0DF20iNHP130..N;NSP131..G,N201703-201708

MARK 48530-0DF20,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

sub48530-0DF21

main48530-0DF20iNHP130..N201703-201708

MARK 48530-0DF20

sub48530-0DF21

main48530-0DF21iNHP130..N201709-201910

MARK 48530-0DF21,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

sub48530-0DF22

main48530-0DF21iNHP130..G,S201709-201910

MARK 48530-0DF21

sub48530-0DF22

main48530-0DF22iNHP130..N;NSP131..G,N201911-202006

MARK 48530-0DF22,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

main48530-0DF22iNHP130..G201911-202006

MARK 48530-0DF22

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-0D890iNSP131..5D..6F..N201703-201708

MARK 48530-0D890

main48530-0D890iNSP131..5D..6F..N201703-201708

MARK 48530-0D890,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48530-0D890iNSP131..S201703-201708

MARK 48530-0D890,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

main48530-0D891iNSP131..5D..6F..N201709-201910

MARK 48530-0D891

sub48530-0D892

main48530-0D891iNSP131..5D..6F..N201709-201910

MARK 48530-0D891,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

sub48530-0D892

main48530-0D892iNSP131..5D..6F..N201911-202006

MARK 48530-0D892

main48530-0D892iNSP131..5D..6F..N201911-202006

MARK 48530-0D892,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48530-0DA00iKSP130,NSP130..G,N,R201407-201910

MARK 48530-0DA00

sub48530-0DA01

main48530-0DA01iKSP130201911-202006

MARK 48530-0DA01

main48530-0DA10iNLP130,NSP130..S201407-201705

MARK 48530-0DA10

sub48530-0DA11

main48530-0DA11iNLP130..LHD201706-201811

MARK 48530-0DA11

main48530-0DA20iNLP130201805-201812

MARK 48530-0DA20

sub48530-0DA21

main48530-0DA40iNHP130201407-201703

MARK 48530-0DA40

sub48530-0DA41

main48530-0DF10iNHP130..G201703-201708

MARK 48530-0DF10,TIRE & DISC WHEEL-175/65R15, 5J ALUMI

main48530-0DF10iNHP130..G201703-201708

MARK 48530-0DF10,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48530-0DF10iNHP130..G201703-201708

MARK 48530-0DF10

main48530-0DF10iNHP130..G201703-201708

MARK 48530-0DF10,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

main48530-0DF10iNHP130..G201703-201708

MARK 48530-0DF10,TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM

main48530-0DF11iNHP130..N201709-201910

MARK 48530-0DF11

sub48530-0DF12

main48530-0DF11iNHP130..N201709-201910

MARK 48530-0DF11,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

sub48530-0DF12

main48530-0DF11iNHP130..N201709-201910

MARK 48530-0DF11,TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM

sub48530-0DF12

main48530-0DF11iNHP130..N201709-201910

MARK 48530-0DF11,TIRE & DISC WHEEL-175/65R15, 5J ALUMI

sub48530-0DF12

main48530-0DF11iNHP130..N201709-201910

MARK 48530-0DF11,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

sub48530-0DF12

main48530-0DF12iNHP130..G201911-202006

MARK 48530-0DF12

main48530-0DF12iNHP130..G201911-202006

MARK 48530-0DF12,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

main48530-0DF12iNHP130..G201911-202006

MARK 48530-0DF12,TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM

main48530-0DF12iNHP130..G201911-202006

MARK 48530-0DF12,TIRE & DISC WHEEL-175/65R15, 5J ALUMI

main48530-0DF12iNHP130..G201911-202006

MARK 48530-0DF12,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48530-0DF20iNHP130..N;NSP131..G,N201703-201708

MARK 48530-0DF20,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

sub48530-0DF21

main48530-0DF20iNHP130..N;NSP131..G,N201703-201708

MARK 48530-0DF20,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

sub48530-0DF21

main48530-0DF20iNHP130..N;NSP131..G,N201703-201708

MARK 48530-0DF20

sub48530-0DF21

main48530-0DF21iNHP130..G,S201709-201910

MARK 48530-0DF21

sub48530-0DF22

main48530-0DF21iNHP130..N201709-201910

MARK 48530-0DF21,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

sub48530-0DF22

main48530-0DF22iNHP130..G201911-202006

MARK 48530-0DF22

main48530-0DF22iNHP130..G201911-202006

MARK 48530-0DF22,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10320iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

48725FBUSH, REAR AXLE CARRIER, RH

main48725-0D110iKSP130,NHP130,NLP130,NSP131201407-202006

48725GBUSH, REAR AXLE CARRIER, LH

main48725-0D110iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-0D170iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

48752ASTOPPER, REAR SUSPENSION SUPPORT

main48752-0D010iKSP130,NHP130,NLP130,NSP131201407-202006

48755SUPPORT, REAR SUSPENSION

main48755-0D070iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-0D170iKSP130,NHP130,NLP130,NSP131201407-202006

9011912385

main90119-12385

90119W0124

main90119-W0124

90119W0146

main90119-W0146

9017810022

main90178-10022

91673G1065

main91673-G1065

9413061000

main94130-61000

24 parts on this diagram · 1 diagram in section
