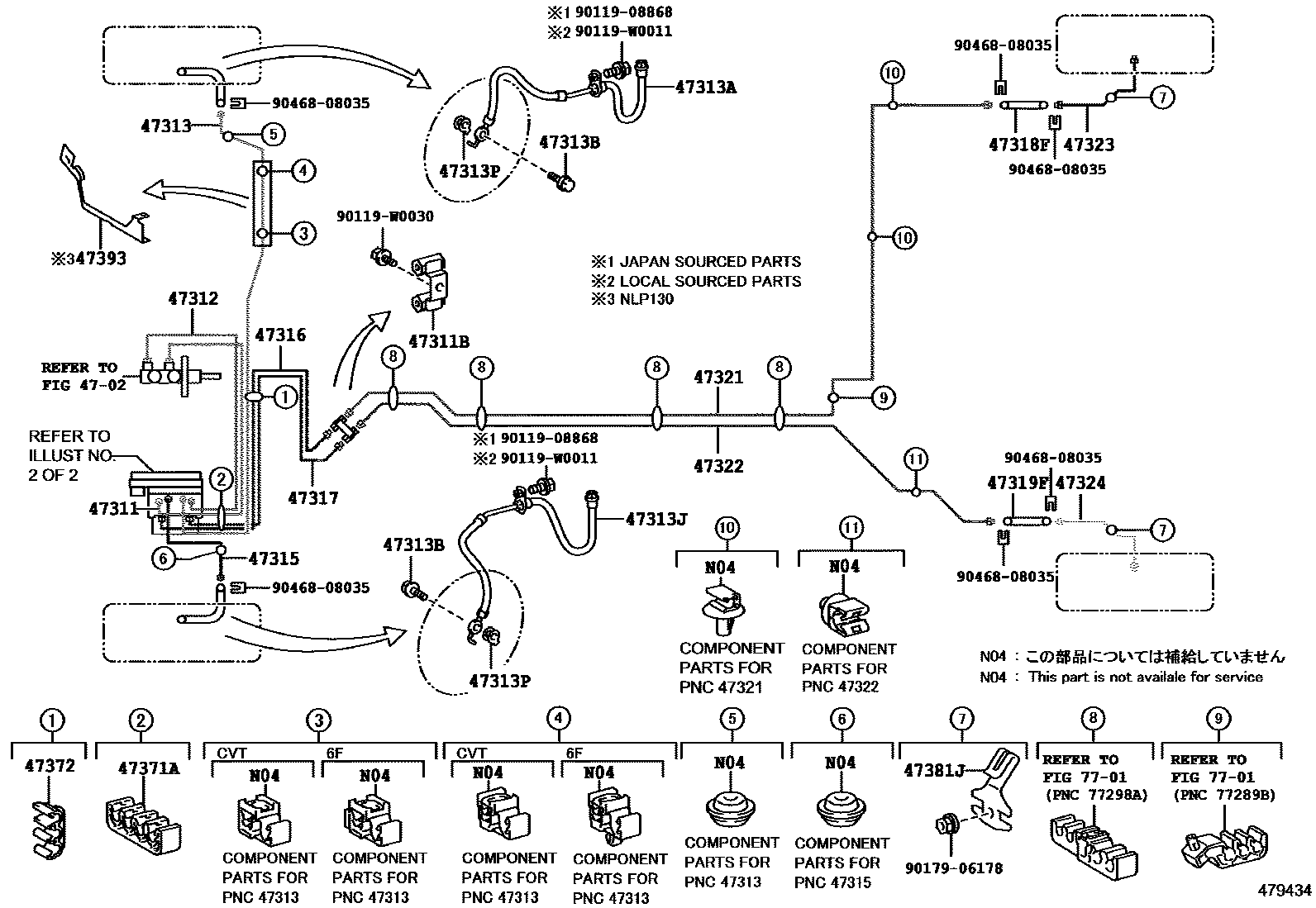

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE,W(REAR DRUM BRAKE)0002 1BRAKE TUBE,W(REAR DISC BRAKE)0003 1BRAKE TUBE 0004 1BRAKE TUBE,W(REAR DRUM BRAKE)0005 1BRAKE TUBE,W(REAR DISC BRAKE)0006 1BRAKE TUBE 0007 1BRAKE ACTUATOR 0008 1BRAKE BOOSTER PUMP 0009 1BRAKE BOOSTER PUMP

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0D290iKSP130,NLP130,NSP130..LHD..MTM..(N,R);KSP130,NLP130,NSP130..LHD..5D..MTM..(G,S)201407-202006

main47311-0D311iNHP130..LHD201407-202006

main47311-0D480iNSP130..LHD..3D..CVT..(G,S)201407-202006

main47311-0D500iKSP130,NSP130..RHD..(N,R);KSP130,NSP130..RHD..5D..(G,S)201407-202006

main47311-0D511iNHP130..RHD201407-202006

main47311-0D520iNLP130..RHD..3D..(G,S)201407-201804

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iKSP130,NLP130,NSP130..3D..(G,S)¥610201407-202006

47312TUBE, FRONT BRAKE, NO.2

main47312-0D260iNLP130..RHD201407-201804

main47312-0D400iKSP130,NLP130,NSP130..LHD..3D..MTM..(G,S)201407-202006

main47312-0D430iNSP130..LHD..CVT..N;NSP130..LHD..5D..CVT..(G,S)201407-202006

main47312-0D450iKSP130,NSP130..RHD..(N,R);KSP130,NSP130..RHD..5D..(G,S)201407-202006

47313TUBE, FRONT BRAKE, NO.3

main47313-0D171iNHP130..LHD201407-202006

main47313-0D361iNSP130..LHD..CVT..N;NSP130..LHD..5D..CVT..(G,S)201407-202006

main47313-0D371iKSP130,NSP130..LHD..3D..MTM..(G,S)201407-202006

main47313-0D401iKSP130,NSP130..RHD..(N,R);KSP130,NSP130..RHD..5D..(G,S)201407-202006

main47313-0D411iNHP130..RHD201407-202006

main47313-0D421iNLP130..LHD201407-201505

main47313-0D441iNLP130..RHD..(N,R);NLP130..RHD..5D..(G,S)¥1,350201407-201804

main47313-0D650iNLP130..LHD..3D..(G,S)201505-201812

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-W2034iKSP130,NHP130,NLP130,NSP130201407-201507

sub90947-W2050¥1,940

main90947-W2050iKSP130,NLP130,NSP130..3D..(G,S)¥1,940201508-202006

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)¥220201407-202006

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-W2035iKSP130,NHP130,NLP130,NSP130201407-201507

sub90947-W2051¥1,940

main90947-W2051iKSP130,NLP130,NSP130..3D..(G,S)¥1,940201508-202006

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)¥280201407-202006

47315TUBE, FRONT BRAKE, NO.5

main47315-0D231iNHP130..LHD201407-202006

main47315-0D371iKSP130,NLP130,NSP130..LHD..3D..MTM..(G,S)201407-202006

main47315-0D401iNSP130..LHD..CVT..N;NSP130..LHD..5D..CVT..(G,S)201407-202006

main47315-0D421iKSP130,NLP130,NSP130..RHD..(N,R);KSP130,NLP130,NSP130..RHD..5D..(G,S)¥780201407-202006

main47315-0D431iNHP130..RHD201407-202006

47316TUBE, FRONT BRAKE, NO.6

main47316-0D181iNHP130..LHD201407-202006

main47316-0D281iKSP130,NLP130,NSP130..LHD..MTM..(N,R);KSP130,NLP130,NSP130..LHD..5D..MTM..(G,S)201407-202006

main47316-0D311iNSP130..LHD..CVT..N;NSP130..LHD..5D..CVT..(G,S)201407-202006

main47316-0D331iKSP130,NLP130,NSP130..RHD..(N,R);KSP130,NLP130,NSP130..RHD..5D..(G,S)¥780201407-202006

main47316-0D341iNHP130..RHD201407-202006

47317TUBE, FRONT BRAKE, NO.7

main47317-0D181iNHP130..LHD201407-202006

main47317-0D281iKSP130,NLP130,NSP130..LHD..3D..MTM..(G,S)201407-202006

main47317-0D311iNSP130..LHD..3D..CVT..(G,S)201407-202006

main47317-0D331iKSP130,NLP130,NSP131..RHD¥620201407-202006

main47317-0D341iNHP130..RHD201407-202006

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-W2036iKSP130,NLP130,NSP130..3D..(G,S)¥1,170201407-202006

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-W2037iKSP130,NLP130,NSP130..3D..(G,S)¥1,170201407-202006

47321TUBE, REAR BRAKE, NO.1

main47321-0D301iKSP130,NLP130,NSP130¥2,860201407-202006

main47321-0D311iNHP130201407-202006

47322TUBE, REAR BRAKE, NO.2

main47322-0D301iKSP130,NLP130,NSP130¥2,240201407-202006

main47322-0D311iNHP130201407-202006

47323TUBE, REAR BRAKE, NO.3

main47323-0D191iKSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

main47323-0D201iKSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)¥460201407-202006

REAR WHEEL BRAKE-DISC

47324TUBE, REAR BRAKE, NO.4

main47324-0D191iKSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

main47324-0D201iNHP130¥460201407-202006

REAR WHEEL BRAKE-DISC

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00904iNHP130..LHD¥170201407-202006

main90464-00956iKSP130,NLP130,NSP130..RHD..(N,R);KSP130,NLP130,NSP130..RHD..5D..(G,S)¥190201407-202006

main90949-01D64iNHP130..RHD¥350201407-202006

main90949-W1002iKSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S)¥230201407-202006

47372CLAMP, BRAKE TUBE, NO.2

main90461-10851iNHP130..LHD¥170201407-202006

main90464-00876iNHP130..RHD¥110201407-202006

main90949-01D91iKSP130,NLP130,NSP130..RHD..(N,R);KSP130,NLP130,NSP130..RHD..5D..(G,S)¥110201407-202006

main90949-01D92iKSP130,NLP130,NSP130..LHD..3D..(G,S)¥110201407-202006

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-52030iNHP130¥330201407-202006

47381JBRACKET, BRAKE TUBE CLAMP, NO.2

main47381-52020iKSP130,NLP130,NSP130..3D..(G,S)¥200201407-202006

47393INSULATOR, BRAKE TUBE HEAT

main47393-0D010iNLP130..LHD..3D..(G,S)201407-201812

main47393-0D020iNLP130..RHD..3D..(G,S)¥720201407-201804

7701

9011908868

main90119-08868¥70

90119W0011

main90119-W0011

90119W0030

main90119-W0030¥60

9017906178

main90179-06178¥100

9046808035

main90468-08035¥110

29 parts on this diagram · 9 diagrams in section
