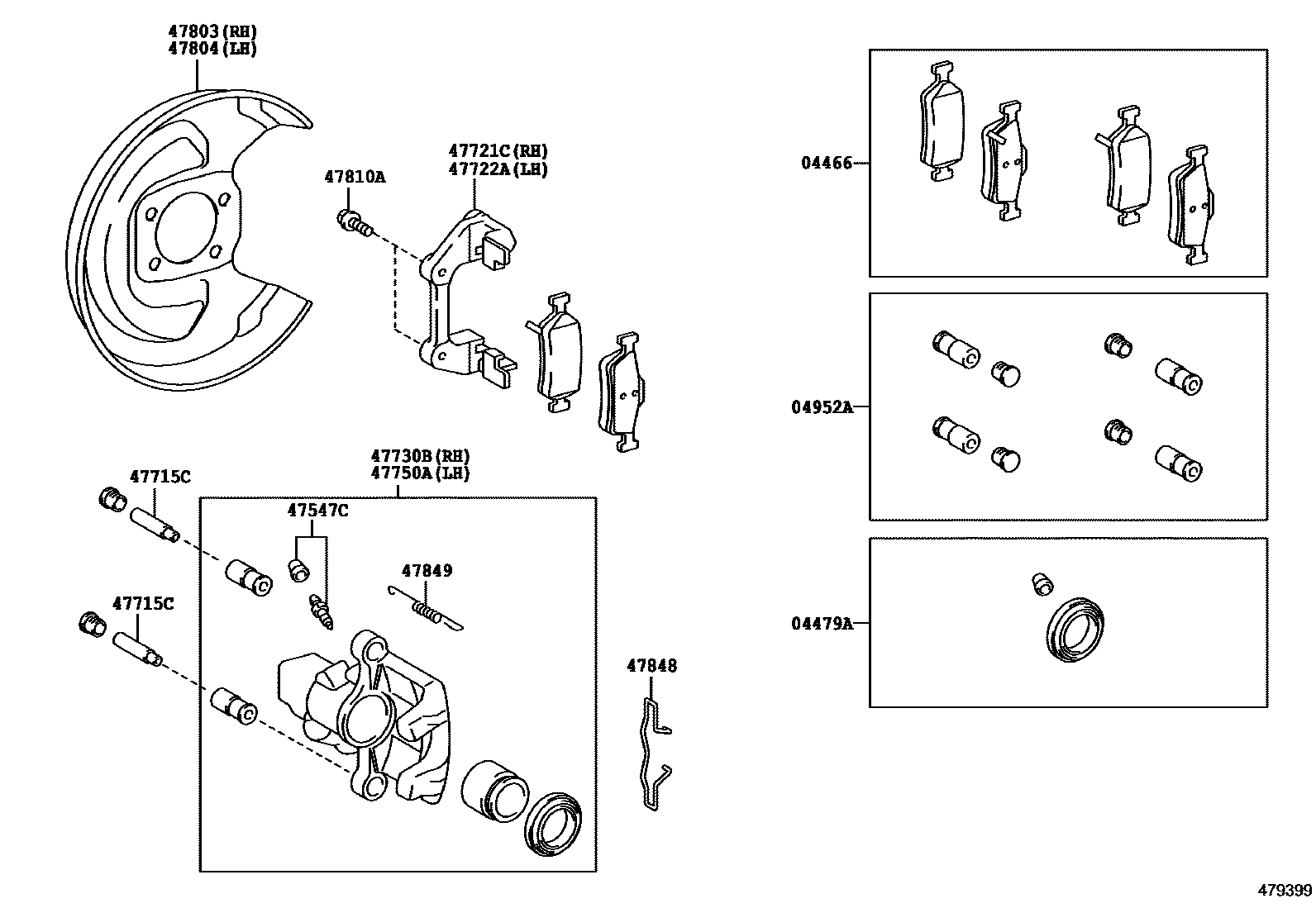

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0D010iNHP130201407-202006

MARK GALFER 4800

main04466-0D010iNHP130201407-202006

MARK GALFER 4800,REAR WHEEL BRAKE-DISC

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0D040iNHP130201407-202006

REAR WHEEL BRAKE-DISC

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04951-05010iNHP130201407-201703

REAR WHEEL BRAKE-DISC

main04951-05010iNHP130201703

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-09050iNHP130201407-202006

REAR WHEEL BRAKE-DISC

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-05010iNHP130201407-202006

REAR WHEEL BRAKE-DISC

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0D020iNHP130201407-202006

REAR WHEEL BRAKE-DISC

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-0D020iNHP130201407-202006

REAR WHEEL BRAKE-DISC

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-0D020iNHP130201407-202006

REAR WHEEL BRAKE-DISC

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0D020iNHP130201407-202006

REAR WHEEL BRAKE-DISC

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-0D050iNHP130201407-202006

REAR WHEEL BRAKE-DISC

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-0D050iNHP130201407-202006

REAR WHEEL BRAKE-DISC

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-W0117iNHP130201407-202006

REAR WHEEL BRAKE-DISC

47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47848-0D020iNHP130201407-202006

REAR WHEEL BRAKE-DISC

47849SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47843-0D020iNHP130201407-202006

REAR WHEEL BRAKE-DISC

14 parts on this diagram · 1 diagram in section
