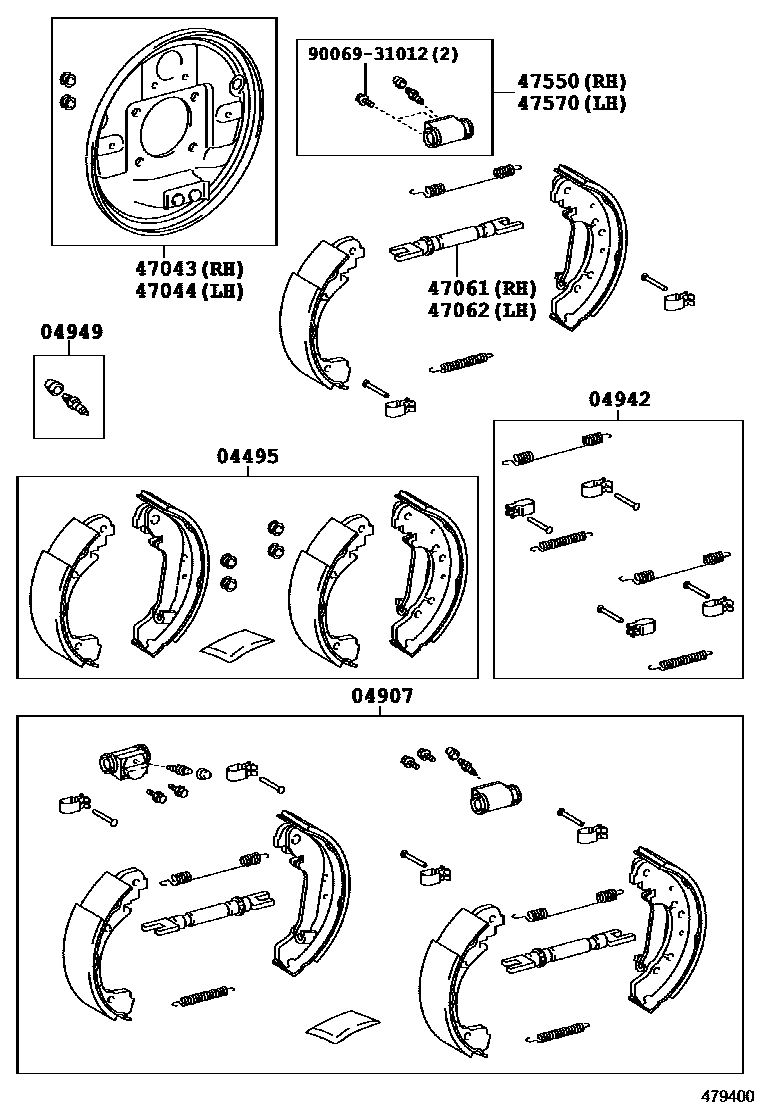

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-0D090iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

04907FITTING KIT, REAR DRUM BRAKE

main04907-0D030iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

04942SPRING KIT, REAR BRAKE

main04942-0D050iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

04949PLUG KIT, REAR BRAKE

main04949-09010iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-09020iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-09020iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-0D040iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

47062STRUT SET, PARKING BRAKE SHOE, LH

main47061-0D040iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-09130iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-09130iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

9006931012

main90069-31012

11 parts on this diagram · 1 diagram in section
