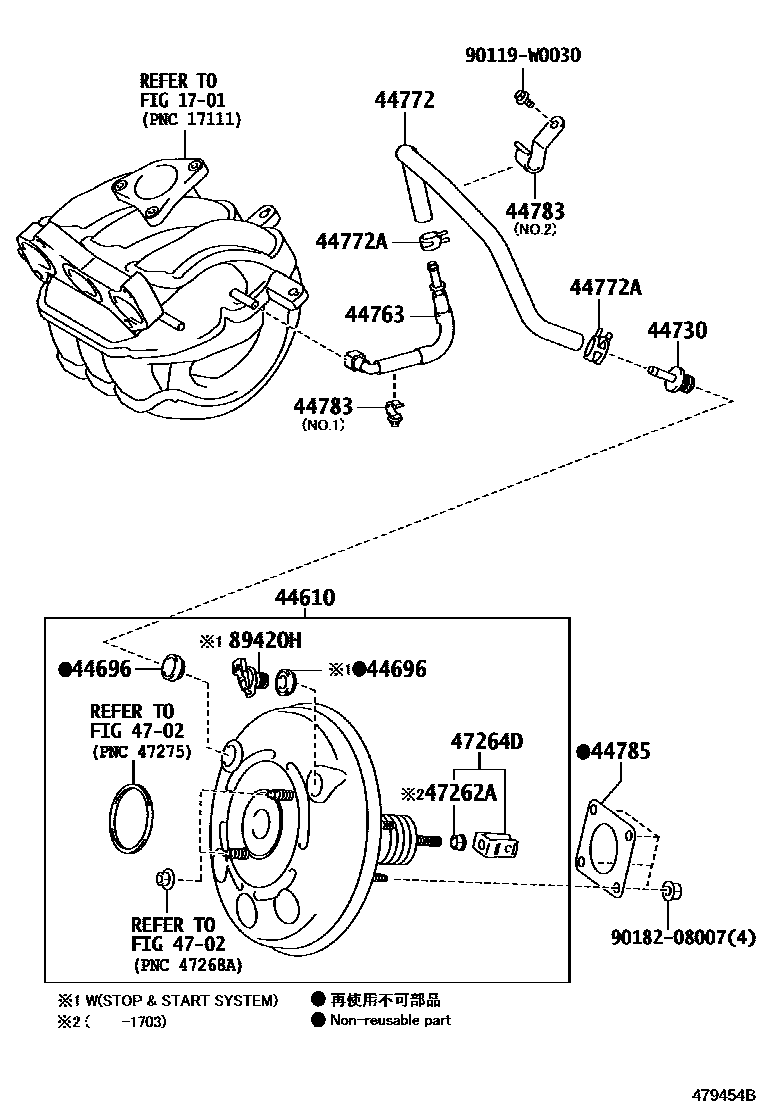

BRAKE BOOSTER & VACUUM TUBE
44610BOOSTER ASSY, BRAKE
WITH(STOP & START SYSTEM)
44696GROMMET, CHECK VALVE
WITH(STOP & START SYSTEM)
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
44763TUBE, BOOSTER VACUUM
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
44783CLAMP, VACUUM HOSE
NO.1
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2
44785GASKET, BRAKE BOOSTER
4702
47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
89420HSENSOR ASSY, VACUUM
90119W0030
9018208007
14 parts on this diagram · 9 diagrams in section
