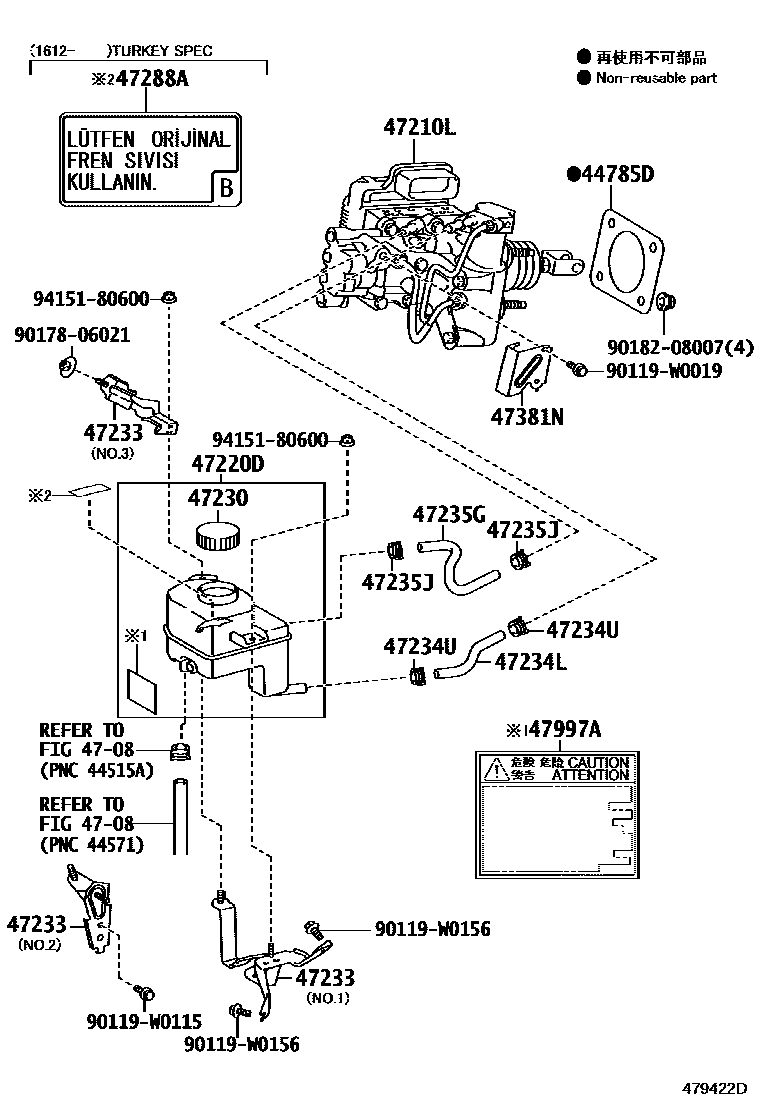

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1GR SPORT 0006 1GR SPORT

44785DGASKET, BRAKE MASTER CYLINDER

main44785-16020iNHP130201407-202006

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-52180iNHP130..LHD201407-201505

sub47050-52370

main47050-52200iNHP130..RHD201407-201505

sub47050-52390

main47050-52370iNHP130..LHD201505-201703

main47050-52390iNHP130..RHD201505-201703

main47050-52480iNHP130..LHD201703-202006

main47050-52500iNHP130..RHD201703-202006

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0D080iKSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S)201407-202006

main47220-0D170iKSP130..LHD201703-202006

WITH(STOP & START SYSTEM)

main47220-0D170iKSP130,NLP130,NSP130..RHD..3D..(G,S)201407-201703

main47220-0D180iNHP130..LHD201407-201411

sub47220-0D181

main47220-0D181iNHP130..LHD201411-202006

main47220-52310iNHP130..RHD201703-201809

GR SPORT

sub47220-52311

main47220-52310iNHP130..RHD201407-201703

sub47220-52311

main47220-52311iNHP130..RHD..N201810-202006

GR SPORT

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D060iKSP130,NLP130,NSP131201407-202006

main47230-0D180iNHP130..LHD201407-202006

main47230-47090iNHP130..RHD201612-201703

main47230-47090iNHP130..RHD201703-202006

GR SPORT

main47230-58010iNHP130..RHD201407-201612

sub47230-11010

47233BRACKET, RESERVOIR

main47233-0D010iNHP130..LHD201407-202006

NO.1

main47233-0D020iNHP130201407-202006

NO.2

main47233-0D031iNHP130..RHD201407-202006

NO.1

main47233-0D031iNHP130..RHD201703-202006

GR SPORT,NO.1

main47233-0D041iNHP130..LHD201407-202006

NO.3

47234LHOSE, RESERVOIR, NO.1

main47234-52050iNHP130..RHD201703-202006

GR SPORT

main47234-52050iNHP130..RHD201407-201703

main47234-52070iNHP130..LHD201407-202006

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96137-51501iNHP130201407-201703

main96137-51501iNHP130201703-202006

GR SPORT

47235GHOSE, RESERVOIR, NO.2

main47235-52050iNHP130..RHD201703-202006

GR SPORT

main47235-52050iNHP130..RHD201407-201703

main47235-52070iNHP130..LHD201407-202006

47235JCLIP(FOR RESERVOIR HOSE NO.2)

main96137-51501iNHP130201407-201703

main96137-51501iNHP130201703-202006

GR SPORT

47288ALABEL, BRAKE FLUID NOTICE

47381NBRACKET, TUBE CLAMP

main47381-0D020iNHP130..LHD201407-202006

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iNHP130201703-202006

GR SPORT

main47997-76010iNHP130201407-201703

90119W0019

main90119-W0019

90119W0115

main90119-W0115

90119W0156

main90119-W0156

9017806021

main90178-06021

9018208007

main90182-08007

9415180600

main94151-80600

19 parts on this diagram · 6 diagrams in section
