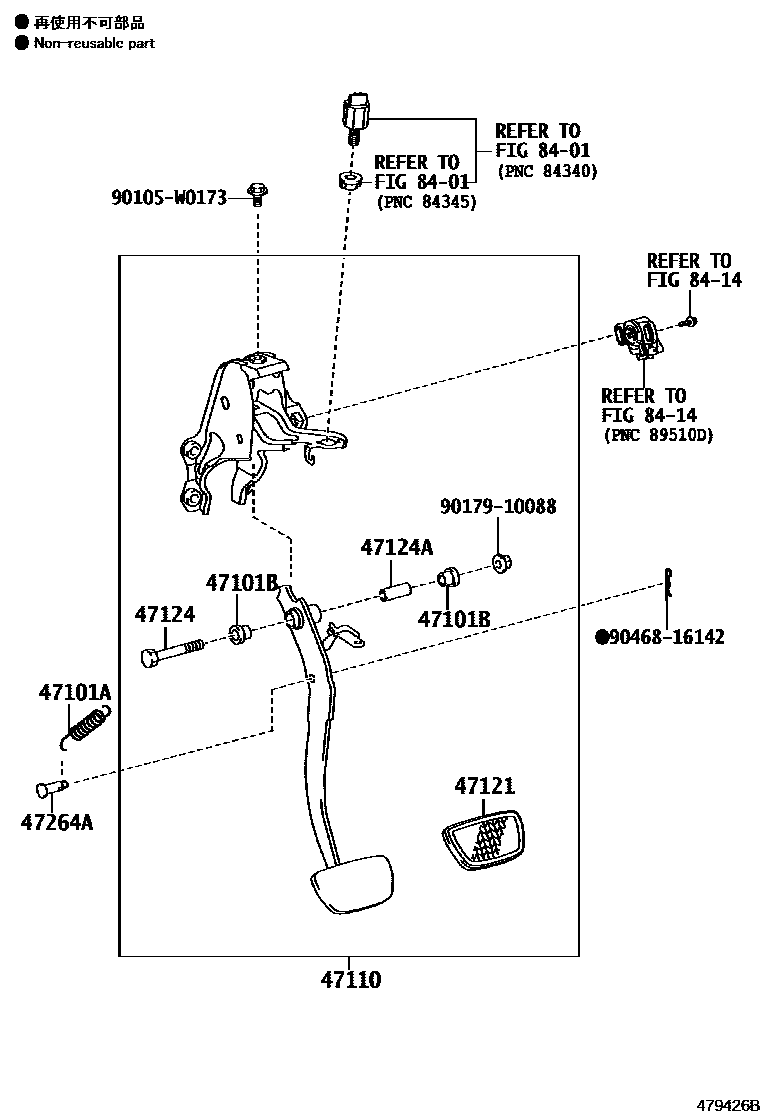

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

47101PEDAL SUB-ASSY, BRAKE

main47101-0D250iKSP130,NLP130,NSP131..RHD..MTM201407-202006

main47101-0D260iNSP130..RHD..CVT201407-202006

main47101-0D450iKSP130,NLP130,NSP131..LHD..MTM201407-202006

main47101-0D460iNSP130..LHD..CVT201407-202006

main47101-0D470iNHP130..LHD201407-202006

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14088iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

47110SUPPORT ASSY, BRAKE PEDAL

main47110-52390iNHP130..RHD201407-202006

47121PAD, BRAKE PEDAL

main31321-0D030iKSP130,NLP130,NSP130..LHD..MTM..(N,R);KSP130,NLP130,NSP130..LHD..5D..MTM..(G,S)201407-202006

main31321-52010iKSP130,NLP130,NSP131..RHD..MTM201407-202006

main47121-0D040iNSP130..LHD..3D..CVT..(G,S)201407-202006

main47121-52010iNHP130201407-201511

main47121-52020iNSP130..RHD..CVT201409-202006

47124SHAFT, BRAKE PEDAL

main90101-10039iNHP130..RHD201407-202006

main90105-10444iKSP130,NLP130,NSP131201407-202006

main90105-10538iNHP130..LHD201407-202006

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

main90387-10105iNHP130..LHD201407-202006

47264APIN(FOR PUSH ROD)

main90249-08051iKSP130,NLP130,NSP130..RHD..3D..(G,S)201407-202006

main90249-08308iKSP130,NLP130,NSP130..LHD..3D..(G,S)201407-202006

8401

8414

90105W0173

main90105-W0173

9017910088

main90179-10088

9046816142

main90468-16142

13 parts on this diagram · 4 diagrams in section
