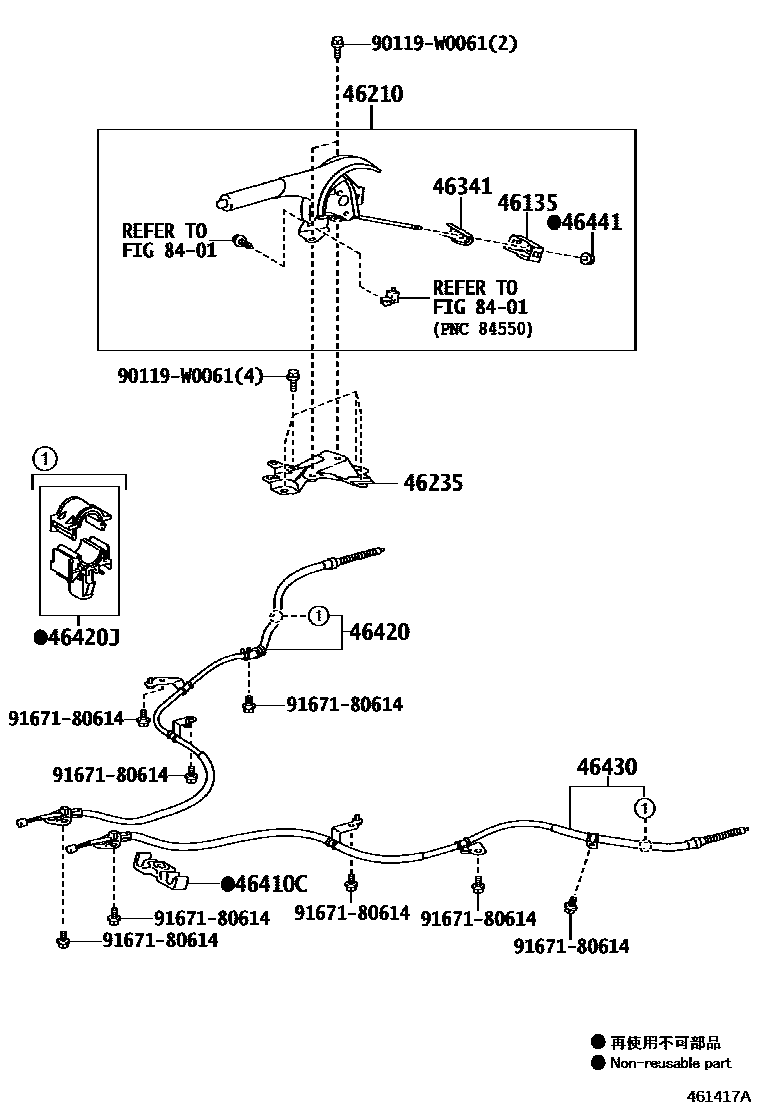

PARKING BRAKE & CABLE

0001 1 0002 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-0D020iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

46210LEVER ASSY, PARKING BRAKE

main46210-0D210-C2iKSP130,NLP130,NSP130..R201407-201503

HV SIMPLE PACKAGE,EU BLACK,TRIM0#,2#

sub46210-0D211

main46210-0D210-C2iKSP130,NLP130,NSP130..R201407-201503

HV ENTRY PACKAGE,EU BLACK,TRIM0#,2#

sub46210-0D211

main46210-0D210-C2iNSP130..CVT..N201407-201503

EU BLACK,TRIM0#

sub46210-0D211

main46210-0D210-C2iNSP130..CVT..N201407-201503

ENTRY CVT PACKAGE,EU BLACK,TRIM0#

sub46210-0D211

main46210-0D211-C2iNHP130..N201703-202006

EU BLACK,TRIM2#

main46210-0D211-C2iNHP130..N201703-202006

ENTRY PACKAGE,EU BLACK,TRIM2#

main46210-0D211-C2iNHP130..N201703-202006

SIMPLE PACKAGE,EU BLACK,TRIM2#

main46210-0D211-C2iKSP130,NLP130,NSP130..R201504-201703

EU BLACK,TRIM0#

main46210-0D211-C2iKSP130,NLP130,NSP130..R201504-201703

HV SIMPLE PACKAGE,EU BLACK,TRIM0#,2#

main46210-0D211-C2iKSP130,NLP130,NSP130..R201504-201703

HV ENTRY PACKAGE,EU BLACK,TRIM0#,2#

main46210-0D230-C2iKSP130,NLP130,NSP130..N201407-201503

EU BLACK/SATIN CHROME,TRIM1#,2#

sub46210-0D231

main46210-0D231-C2iKSP130,NLP130,NSP131..N201504-202006

EU BLACK/SATIN CHROME,TRIM2#

main46210-0D250-B3iNHP130..G201407-201503

LT. GRAY NO.F907/EU BLACK,TRIM2#,5#

sub46210-0D251

main46210-0D250-B3iNHP130..N201407-201503

LT. GRAY NO.F907/EU BLACK,TRIM27,53

sub46210-0D251

main46210-0D250-B3iNHP130..N201407-201503

LT. GRAY NO.F907/EU BLACK,TRIM21,24,28,29

sub46210-0D251

main46210-0D250-D2iNLP130,NSP130..S201407-201503

RED/EU BLACK,TRIM2#,3#

sub46210-0D251

main46210-0D250-D2iNLP130,NSP130..S201407-201503

RED/EU BLACK,TRIM29

sub46210-0D251

main46210-0D250-E2iKSP130,NLP130,NSP130..5D..G201407-201503

FILLAN2406/EU BLACK,TRIM25,26,50,51

sub46210-0D251

main46210-0D250-E2iKSP130,NLP130,NSP130..5D..G201407-201503

FILLAN2406/EU BLACK,TRIM2#,5#

sub46210-0D251

main46210-0D251-B3iNHP130..N201504-201511

LT. GRAY NO.F907/EU BLACK,TRIM27,53

main46210-0D251-B3iNHP130..G201504-201511

LT. GRAY NO.F907/EU BLACK,TRIM2#,5#

main46210-0D251-B3iNHP130..G201504-201511

LT. GRAY NO.F907/EU BLACK,TRIM21,24,28,29

main46210-0D251-B4iNLP130,NSP130..S201511-201703

GRAY NO.205/EU BLACK,TRIM2#,3#,4#

main46210-0D251-B4iNHP130..N201511-201703

GRAY NO.205/EU BLACK,TRIM2#

main46210-0D251-B4iNHP130..N201511-201703

GRAY NO.205/EU BLACK,TRIM21,22,23,24,26,28,3#,4#

main46210-0D251-B4iNHP130..N201511-201703

GRAY NO.205/EU BLACK,TRIM23,24

main46210-0D251-B5iNHP130;KSP130,NLP130,NSP131..G,S201703-202006

GRAY NO.205/SATIN CHROME,TRIM20,21

main46210-0D251-D2iNHP130..G;NLP130,NSP130..S201511-201703

RED/EU BLACK,TRIM29

main46210-0D251-D2iNHP130..G;NLP130,NSP130..5D..S201504-201511

RED/EU BLACK,TRIM2#

main46210-0D251-D4iNHP130..G,N;KSP130,NLP130,NSP131..G201703-202006

BURGUNDY/BLACK/SAT.CHR,TRIM20,21

main46210-0D251-E2iKSP130,NLP130,NSP130..5D..G201504-201511

FILLAN2406/EU BLACK,TRIM25,26

main46210-0D251-E2iKSP130,NLP130,NSP130..5D..G201504-201511

FILLAN2406/EU BLACK,TRIM2#

main46210-0D251-J0iKSP130,NHP130..RHD..G201703-202006

BLUE/BLACK/SAT.CHR,TRIM21

main46210-0D251-J0iKSP130,NHP130..RHD..G201703-202006

BLUE/BLACK/SAT.CHR,TRIM20,21

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-0D060iKSP130,NHP130,NLP130,NSP131201407-202006

46341EQUALIZER, PARKING BRAKE

main46341-0D060iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-0D010iKSP130,NHP130,NLP130,NSP131201407-202006

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D200iKSP130,NLP130,NSP130201407-202006

main46420-0D220iNHP130201407-201510

main46420-0D221iNHP130201511-202006

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-52030iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D200iKSP130,NLP130,NSP131201407-202006

main46430-0D220iNHP130201407-201510

main46430-0D221iNHP130201511-202006

46441NUT, WIRE ADJUSTING, NO.1

main46441-0D060iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

8401

90119W0061

main90119-W0061

9167180614

main91671-80614

12 parts on this diagram · 2 diagrams in section
