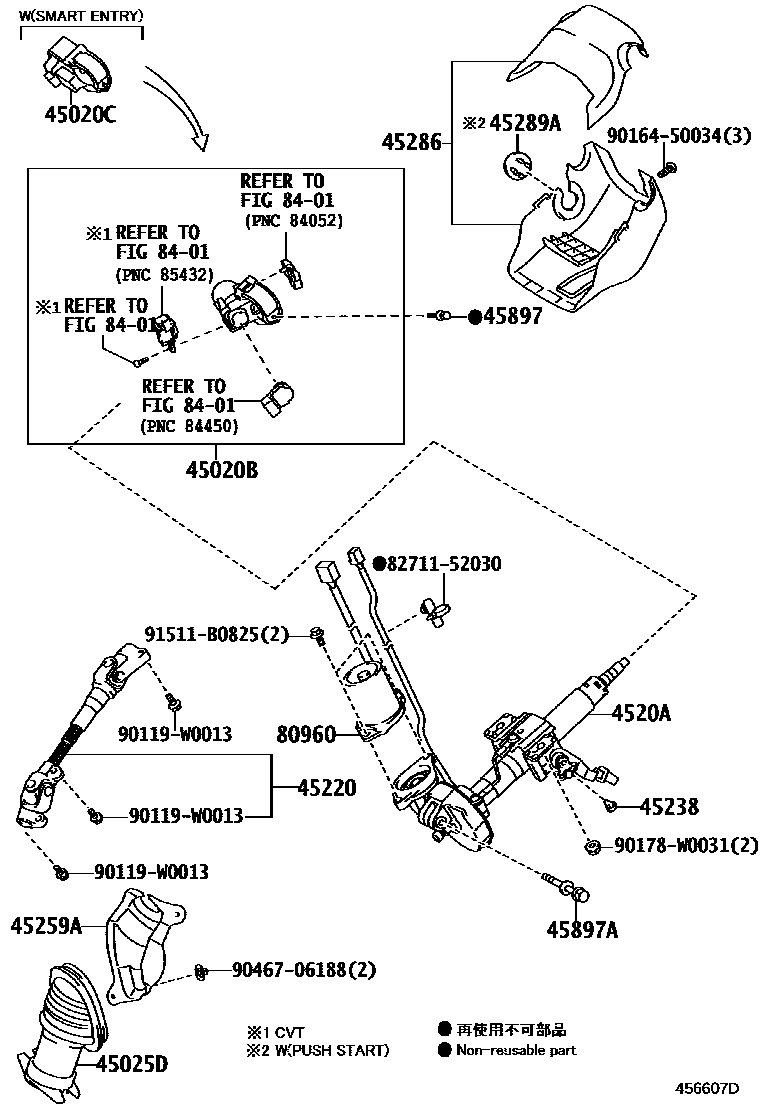

STEERING COLUMN & SHAFT

0001 1 0002 1

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45020-0D081iKSP130,NLP130,NSP130..RHD..MTM..(G,N,S)201407-201911

WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)

sub45020-0D101

main45020-0D091iNSP130..RHD..CVT201407-201911

WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)

sub45020-0D111

main45020-0D101iKSP130,NLP130,NSP131..RHD..MTM..(G,N,S)201703-202006

main45020-0D101iKSP130,NLP130,NSP130..RHD..R201407-201703

POWER DOOR LOCK-DOUBLE LOCK

main45020-0D111iNSP131..RHD..CVT201703-202006

main45020-0D111iNHP130..RHD..N201407-201703

UK SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0D120iNHP130..N201407-202006

WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)

main45020-0D120iKSP130,NLP130,NSP130..LHD..(G,S);KSP130,NHP130,NLP130,NSP130..LHD..5D..N201407-202006

WIRELESS DOOR LOCK-WITH(SMART KEY)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D062iKSP130,NHP130,NLP130,NSP131201407-202006

sub45025-0D061

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0D050iNHP130..LHD..N;KSP130,NLP130,NSP130..LHD201407-201501

sub4520A-0D051

main4520A-0D051iKSP130,NLP130,NSP130..LHD..5D..(G,S);KSP130,NHP130,NLP130,NSP130..LHD..(N,R)201502-202006

main4520A-0D060iNHP130..LHD..N;KSP130,NLP130,NSP130..LHD..(G,N,S)201407-201501

WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)

sub4520A-0D061

main4520A-0D060iNHP130..LHD..N201407-201501

WIRELESS DOOR LOCK-WITH(SMART KEY)

sub4520A-0D061

main4520A-0D061iNHP130..LHD..N;KSP130,NLP130,NSP130..LHD..5D..(G,N,S)201502-202006

WIRELESS DOOR LOCK-WITH(SMART KEY)

main4520A-0D061iNHP130..LHD..G201502-202006

WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)

main4520A-0D070iNHP130..RHD..N;KSP130,NLP130,NSP130..RHD201407-201501

sub4520A-0D071

main4520A-0D071iKSP130,NLP130,NSP130..RHD..3D..(G,S)201502-202006

main4520A-0D080iNHP130..RHD..N201407-201501

WIRELESS DOOR LOCK-WITH(SMART KEY)

sub4520A-0D081

main4520A-0D080iNHP130..RHD..G201407-201501

WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)

sub4520A-0D081

main4520A-0D081iNHP130..RHD..N201502-202006

WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)

main4520A-0D081iNHP130..RHD..N201502-202006

WIRELESS DOOR LOCK-WITH(SMART KEY)

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0D010iNHP130..LHD;KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S)201407-202006

main45220-0D020iKSP130,NHP130,NLP130,NSP131..RHD201407-202006

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

45259ASHEET, COLUMN HOLE COVER SILENCER

main45255-0D100iKSP130,NHP130,NLP130,NSP131..LHD201407-202006

main45255-0D110iNSP131..RHD..R;KSP130..RHD..(N,R)201407-202006

main45255-0D120iKSP130,NLP130,NSP130..RHD..3D..MTM..(G,S)201407-202006

main45255-0D160iNHP130..RHD;NSP130..RHD..CVT..N;NSP130..RHD..5D..CVT..(G,S)201407-202006

45286COVER, STEERING COLUMN

main45286-0D915-C1iKSP130,NLP130,NSP130..5D..G201407-201703

EU BLACK,TRIM2#,3#

main45286-0D915-C1iKSP130,NLP130,NSP130..5D..G201407-201703

EU BLACK,TRIM2#,3#,4#

main45286-0D915-C1iKSP130,NLP130,NSP130..5D..G201407-201703

EU BLACK,TRIM0#

main45286-0D915-C1iKSP130,NLP130,NSP130..5D..G201407-201703

EU BLACK,TRIM1#,2#

main45286-0D915-C1iKSP130,NLP130,NSP130..5D..G201407-201703

EU BLACK,TRIM2#,3#,4#,5#

main45286-0D915-C1iNHP130..N201407-201703

EU BLACK,TRIM0#,2#,5#

main45286-0D915-C1iNHP130..N201407-201703

EU BLACK,TRIM0#,1#,2#

main45286-0D915-C1iKSP130,NHP130,NLP130,NSP131201703-202006

EU BLACK,TRIM2#

main45286-0D915-C1iKSP130,NLP130,NSP130..3D..G201407-201511

EU BLACK,TRIM2#,5#

main45286-0D915-C1iKSP130,NLP130,NSP130..3D..G201407-201511

WIRELESS DOOR LOCK-WITH(SMART KEY),EU BLACK,TRIM1#,2#

45289ASUPPORT, STEERING COLUMN COVER

main45289-0D050-C1iKSP130,NLP130,NSP130..5D..N201407-201703

WIRELESS DOOR LOCK-WITH(SMART KEY),EU BLACK,TRIM2#,3#,4#,5#

main45289-0D050-C1iNHP130..G201407-201703

WIRELESS DOOR LOCK-WITH(SMART KEY),EU BLACK,TRIM2#,3#

main45289-0D050-C1iNHP130..G201407-201703

WIRELESS DOOR LOCK-WITH(SMART KEY),EU BLACK,TRIM1#,2#

main45289-0D050-C1iNHP130..G201407-201703

WIRELESS DOOR LOCK-WITH(SMART KEY),EU BLACK,TRIM2#,5#

main45289-0D050-C1iNHP130..G201407-201703

WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START),EU BLACK,TRIM2#,5#

main45289-0D050-C1iNLP130,NSP130..S201407-201703

EU BLACK,TRIM2#,3#,4#

main45289-0D050-C1iNHP130..G,S201703-202006

EU BLACK,TRIM2#

main45289-0D050-C1iNHP130..G,S201703-202006

WIRELESS DOOR LOCK-WITH(SMART KEY),EU BLACK,TRIM2#

main45289-0D050-C1iNHP130..G,S201703-202006

WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START),EU BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020iKSP130,NLP130,NSP131..RHD..5D..(G,N,S)201407-202006

WIRELESS DOOR LOCK-WITH(SMART KEY)

main45897-12020iKSP130,NLP130,NSP130..RHD..3D..(G,S)201407-201912

WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)

main45897-12050iKSP130,NLP130,NSP130..RHD..N;KSP130,NLP130,NSP130..RHD..5D..(G,S)201407-201703

UK SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)

main45897-12050iKSP130,NLP130,NSP130..RHD..3D..(G,S)201407-202006

main45897-12050iKSP130,NLP130,NSP130..RHD..N;KSP130,NLP130,NSP130..RHD..5D..(G,S)201407-201703

POWER DOOR LOCK-DOUBLE LOCK

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

80960MOTOR ASSY, POWER STEERING

main80960-0D180iKSP130,NHP130,NLP130,NSP130..RHD201407-202006

main80960-0D200iKSP130,NHP130,NLP130,NSP131..LHD201407-202006

8401

8271152030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52030

90119W0013

main90119-W0013

9016450034

main90164-50034

90178W0031

main90178-W0031

9046706188

main90467-06188

91511B0825

main91511-B0825

19 parts on this diagram · 2 diagrams in section
