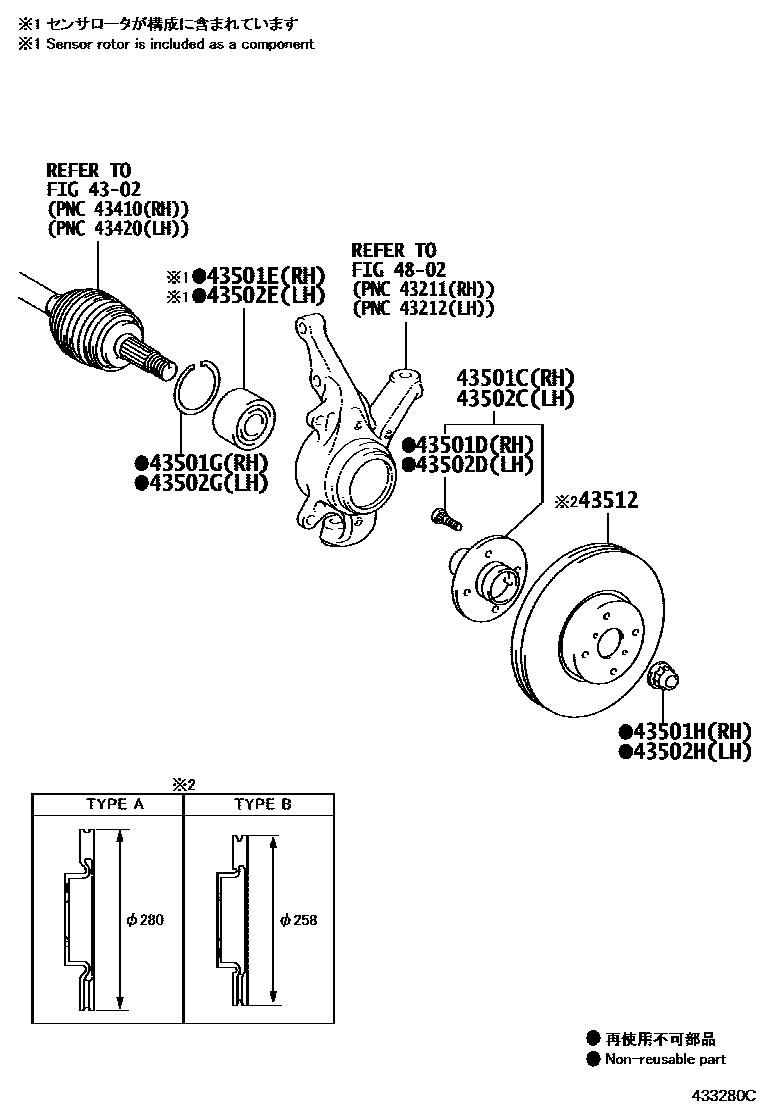

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-0D101iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-W0005iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

main90369-W0002iKSP130,NHP130,NLP130,NSP131201703-202006

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-80003iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-0D101iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-W0005iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

main90369-W0002iKSP130,NHP130,NLP130,NSP131201703-202006

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-80003iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

43512DISC, FRONT

main43512-0D060×2iKSP130,NLP130,NSP130201407-201703

main43512-0D210×2iNHP130201703-202006

main43512-0D260×2iKSP130201703-202006

TYPE B:REFER ILLUST.

4802

13 parts on this diagram · 1 diagram in section
